Fuel Injector Marelli (IWP065, IWP143)Specifications
1)Bico Injetor Magneti Marelli IWP069
2)For Racing cars
3) Good sale in Europe Market

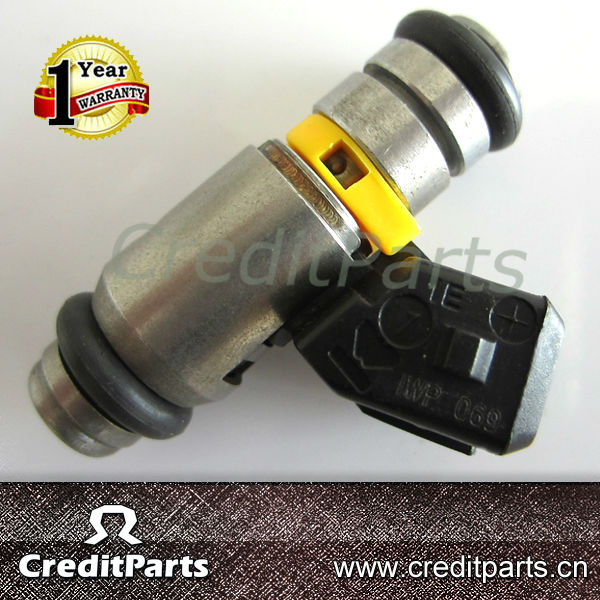

Marelli Fuel Nozzle IWP069 For Racing Cars
This IWP069 "Pico" top feed injector is a production component with a single hole 'cone' spray pattern and a wide range of applications for engines typically up to 85bhp per cylinder (depending on injection pressure)
Product Detail:
IWP069 For auto injector tune,race cars,motorsports auto;
Injector Body Design: All steel with composite plastic connector, Yellow band
Electrical connector type: Minitimer (EV1)
Spray Nozzle: Single disc, wide spray pattern
Operating temperature range: -30-110°c
Weight:35g
Length: 1.85 inches, 47 MM
Oring to Oring on Certer: 1.5 inches, 38 MM
Diameter: 0.55 inches, 14 MM
Orings: Top and bottom, .57 inches, 14.5 MM
Resistance: 14.5hms
Our testing date:
Speed :3000
Pulse width :6 ms
The test pressure: 43.5 psi
FLOW:79ml (73ml-81ml) ORIGINAL FLOW :77ml
Payment Terms:
1.T/T
2.Western Union
3.Paypal
4.Credit Card Available
Returns and Warranty:
Our customer's satisfaction is our main concern.
We offer a ONE year warranty on all of our products, if you are not satisfied with our products,
you have the right to return the goods within 1 year, we will replace any defective part with a new one or will refund the complete amount within one week.
We are 100% ensure that each injector nozzle will be tested before shipment. Welcme to inquiry us for more details !
| MAGNETTI MARELLI | Car model | OEM | HOLE | Spacer color | FLOW [ ml ] |
| IWP 065 | Fiat Palio | 35118 | 1 | POUPLE | 36 |
| IWP 049 | FIAT | 35913 | 4 | WHITE | 42 |
| IWP 113 | 35919 | 4 | WHITE | 37 |
| IWP 066 | 35917 | 1 | BLUE | 37 |
| IWP 001 | 35119 | 4 | DARK GREY | 42 |
| IWP 067 | 35120 | 4 | PINK | 42 |
| IWP 003 | 35914 | 1 | WHITE | 45 |
| IWP 064 | 35916 | 2 | BIGE | 36 |
| IWP 101 | 35918 | 2 | BROWN | 30 |
| IWP 157 | 35921 | 4 | YELOW | 35 |
| IWP 158 | 35922 | 4 | WHITE | 37 |
| IWP 168 | 35923 | 4 | LIGHT GREEN | 45 |
| IWP 131 | 35920 | 1 | BLUE | 40 |
| IWP 006 | 35915 | 4 | BLUE | 50 |
| IWP 127 | FORD | 35925 | 4 | ORANGE | 50 |
| IWP 119 | 35924 | 3 | GREEN | 30 |
| IWP 071 | M. BENZ | 35926 | 4 | BLACK | 42 |
| IWP 099 | RENAULT | 35928 | 2 | PINK | 25 |
| IWP 026 | 35927 | 4 | BIGE | 42 |
| IWP 143 | 35929 | 4 | DARK GREEN | 40 |
| IWP 024 | VOLKSWAGEM | 35121 | 4 | DARK GREEN | 50 |
| IWP 115 | 35935 | 4 | ORANGE | 45 |
| IWP 044 | 35112 | 4 | LIGHT GREY | 42 |
| IWP 043 | 35931 | 4 | DARK GREEN | 70 |
| IWP 114 | 35934 | 4 | BLACK | 45 |
| IWP 058 | 35932 | 2 | BROWN | 28 |
| IWP 041 | 35930 | 4 | YELOW | 30 |
| IWP 176 | 35937 | 5 | RED | 36 |
| IWP 092 | 35933 | 4 | ORANGE | |
| IWP 170 | 35936 | 4 | RED | 36 |
Credit Parts professionally producing over 600, 000units per year high quality fuel injector with the service kits, fuel pump and auto sensors...
As the leading producer of fuel injectors and fuel pumps with more than 10years history, our fuel injection parts well sales in Europe, North America, South America and Australia. Big Customers from North America, South America, Australia and Western Europe keep regular importing our fuel injectors and fuel pumps each month, we guarantee one year using of our goods, it makes our Brand "CRDT" and "CreditParts" have a good and big name in these markets. What's more, advanced technology from Germany and United Kingdom imported, and the ISO9001-2000 International Quantity System to passed, which insure the products stable and technology transformed.
"Credit first, and trustiness foremost" is our tenet.
With the efforts to extend our influence throughout the global market, we are seeking new importers worldwide. If you are interested in any of our product lines, please contact us. We assure you that our professionalism will satisfy your requirements., finally to establish the long term cooperations as partners.
Credit Parts are openning the door always, for you! ! !
Our booth number of Latin Auto Parts Expo June 15-17, 2016 in Panama: M906
Our Booth of Automechanika Frankfurt Germany in Sep, AAPEX show in Las Vegas USA
And Automechanika Buenos Aires Argentina in Nov., Automechanika Shanghai in DEC. 2016 is coming soon.
