Fuel Injector Cleaner Non-Dismantle Cleaner Car Washer for Auto Fuel Injector and Cleaner Machine

Name: Fuel Injector Cleaner Non-Dismantle Cleaner Car Washer for Auto Fuel Injector and Cleaner Machine
Brand: ibuyautoparts.com
SKU: 715328732
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 55/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

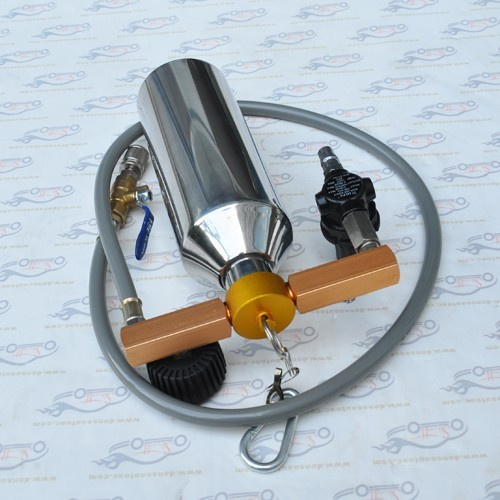

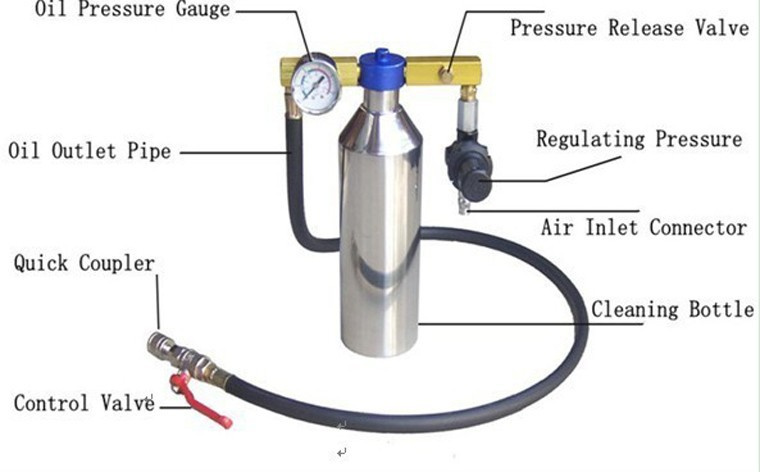

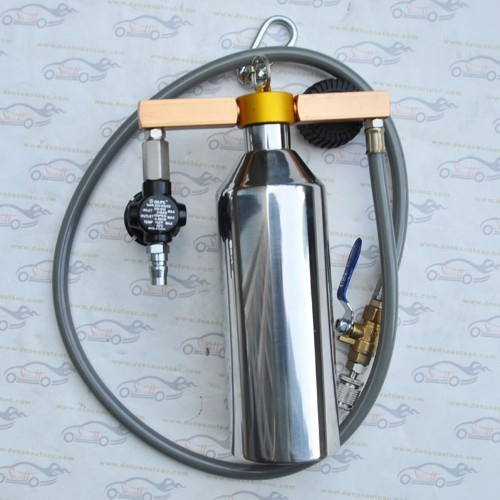

NON-DISMANTLE CLEANER FCS 200 for Automotive fuel injector tester and cleaner

Fuel System Cleaning FSC-200 can clean fuel injector, Air intake system and Three-Way Catalytic Converter, it is a Free disassembly cleaning tools for MST-A360 Fuel injector cleaner and tester.

FSC-100 Fuel System Cleaner Description:

2. Check fuel injection style, throttle or EFI

TO EFI STYLE:

1. Find out the fuel return hose, disconnect it and plug it with suitable adaptor;

2. Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;

3. Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work;

4. Charge the cleaning fluid into the tank of the cleaner;

5. Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;

6. Check all connect point to make sure there is not leakage;

7. Start the engine to clean the fuel system.

NOTE:

1. To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.

3. The way to identify the inlet and return hose:

1. Generally speaking, inlet hose is bigger, return hose is smaller;

2. There is always a filter connected in the inlet hose side, and a buffer in the return side;

3. There is arrow on the hose to show the fuel flow direction

4. Wear protective glasses before operation . observe the joint whether there is oil leak. if there is, please start to work after remove the fault. as a result of losses caused by human negligence, the user undertakes the responsibility

Prod Model:	FSC200
Material Type:	Iron
Weight:	5kg
Function:	Automotive Fuel Injector Tester and Cleaner
Model:	Car Auto Fuel System Cleaner Tester Analyzer
Testing Equipment Type:	Car Fuel Injector Cleaning
Update Method:	by Email
Condition:	New
Standard:	Standard
Certification:	CE
