| Prod Model: |
Wf-Ve4/11f1900L002 |
| Markets: |
North America,South America,Southeast Asia,Western Europe |
| Weight: |
10kg |
| Fuel: |
Diesel |
| Body Material: |
Steel |
| Component: |
Fuel Injection Device |
| Certification: |
ISO9001 |
| Stroke: |
4 Stroke |
| Cylinder: |
Single Cylinder |
| Carburettor Type: |
Diesel Fuel Injection Systems |
| Application: |
JAC |
Product Description

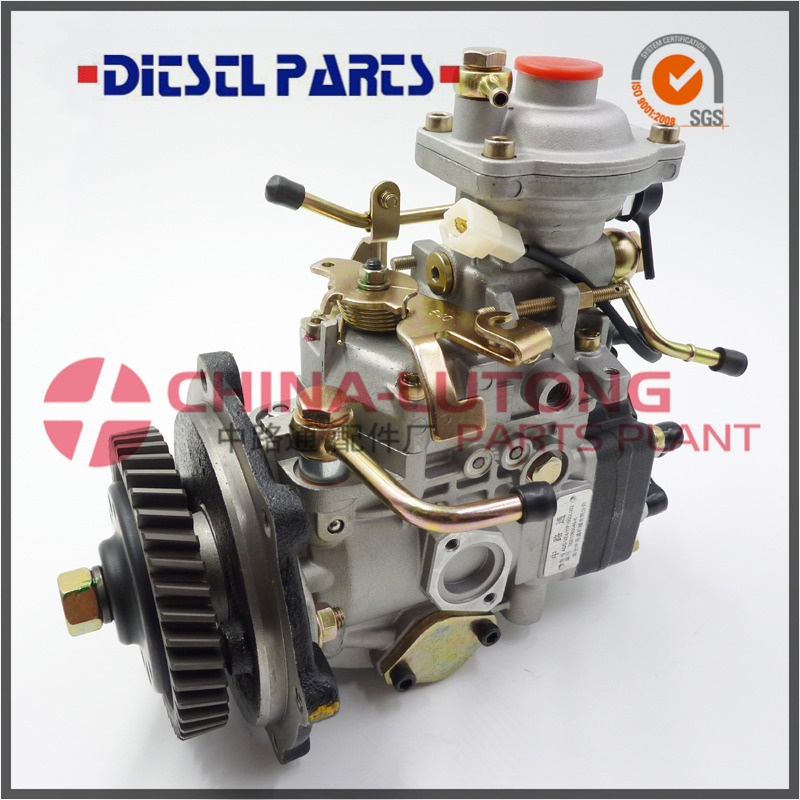

Fuel Injection Pump for JAC OEM Wf-Ve4/11f1900L002
China Lutong Parts Plant is manufacter in China in the suppyling and servicing of diesel fuel injection enterprise,our quality is Approved by ISO9001:2008
We are Major in: Diesel Fuel Injection Nozzle, Nozzle, Diesel Engine Parts,diesel fuel injection,injection nozzles, diesel parts, diesel nozzles.diesel engine parts, pencil nozzle, nozzle holder, ve pump parts, We have the world brand equipment, craft, full testing machine, very strong technical force, and we have big lots, more types and high quality production scale, and modernization manager.
What is VE pump?
The purpose of the fuel injection pump is to deliver an exact metered amount of fuel, under high pressure, at the right time to the injector. The injector, unlike in a gasoline engine, injects the fuel directly into the cylinder or a prechamber connected to the cylinder.
The VE in the name of the Bosch pump used in the VW diesels and many other small diesel engines stands for "Verteiler", which is German for distributor or divider. The other common kind of injection pump is the inline pump. The difference between them is that the "Verteiler" VE pump has one fuel metering plunger, and a mechanism (the "Verteiler"/distributor) to send the fuel to the right cylider. The inline pump has one plunger for each cylinder.
Our Main Products:
1.Head Rotor:VE head Rotor(Bosch,Denso,Zexel,Delphi)
2.Fuel Injection Pump:(ISUZU,JMC)
3.Ve Pump Parts:(Feed Pump ,Cam Plate, Drive Shaft,Solenoid Valve,Roller Ring,Oil Seal,etc.)
4.Reparit Kit(VE Pump,Lucas,etc.)
5.Plunger:(Type:A,AD,P,PS7100,P8500,MW,PW,PT,etc.)
6.Nozzle:(Type:DN_SD,DNOPDN,S,SN,P,PN.etc.)
7.Delivery Valve(A,P type etc.)
8.Pencil Nozzle(Ford,John Deer,CAT.)
9.Common Rail Control Valve(621C,622B,625C,C7/C9,etc.)
10.Lucas Head Rotor.(DPA,DPS,DP200)
11.Diesel Fuel Injectors(Bosch,Denso,Delphi)
12.Nozzle Tester,Test Bench.
13.Other Components
If you have any demand,please feel free to contact us,we'll try our best to meet your need.
| Item | OEM | LUTONG # | LUTONG # | Engine |
| Fuel Injecion Pump | NJ-VE4/11F1900LNJ03 | ADS-VE4/11F1900L003 | 2000110003 | JX493Q1 |
| GW4D28 |
| Fuel Injecion Pump | NJ-VE4/11F1250L009 | ADS-VE4/11F1250L004 | 2000110004 | JX493Q1/PD2009 |
| Fuel Injecion Pump | NJ-VE4/12F1900LNJ01 | ADS-VE4/12F1900L005 | 2000110005 | 4JB1 |
| Fuel Injecion Pump | WF-VE4/11F1900L002 | ADS-VE4/11F1900L006 | 2000220006 | HFC 4DA1-1 |
| Fuel Injecion Pump | NJ-VE4/11F1900L005 0001060005-Z | ADS-VE4/11F1900L008 | 2000220008 | JX493ZQ4A-47 |
| Fuel Injecion Pump | NJ-VE4/11F1900L064 0001060064 | ADS-VE4/11F1900L010 | 2000220010 | JX493ZQ4A-53 |
| Fuel Injecion Pump | 104641-7280 NP-VE4/11F1800LNP2495 | ADS-VE4/11F1800L012 | 104641-7280 | JX493ZQ |
| Fuel Injecion Pump | 104641-7172 NP-VE4/11F1800LNP2371 | ADS-VE4/11F1800L013 | 104641-7172 | JX493ZQ |
| Fuel Injecion Pump | 00.02.06.0019 NJ-VE4/11E1800L019 | ADS-VE4/11E1800L016 | 2000330016 | JX493ZLQ3A |
| Fuel Injecion Pump | 00.02.06.0025 NJ-VE4/11E1800L025 | ADS-VE4/11E1800L017 | 2000330017 | JX493ZQ5C |
| Fuel Injecion Pump | NJ-VE4/12E1650R005 | ADS-VE4/12E1650R018 | 2000330018 | 4D20(486) |
| Fuel Injecion Pump | NJ-VE4/11E1800L013 | ADS-VE4/11E1800L019 | 2000330019 | 4JB1T1(493) |
| Fuel Injecion Pump | NJ-VE4/11E1600R015 | ADS-VE4/11E1600R020 | 2000330020 | 488 |
| Fuel Injecion Pump | NJ-VE4/11E1800L047 | ADS-VE4/11E1800L022 | 2000330022 | 493\4DA1-1B |
| Fuel Injecion Pump | NJ-VE4/11E1800L008 | ADS-VE4/11E1800L023 | 2000330023 | suzl 100P |
| Fuel Injecion Pump | NJ-VE4/11E1800L024 | ADS-VE4/11E1800L024 | 2000330024 | suzl |
China Lutong Parts Plant is a manufacturer specialist in diesel engine parts. The majored products are Head Rotor (VE Pump Parts) Nozzle, Plunger, Delivery Valve and so on. As an elder manufacturer for diesel engine parts, VE pump parts, we keep step with the international standard and techniques. And we absorb the advanced producing and testing technique. The quality of our products is in the same class with other overseas famous manufacturers.
China Lutong is a manufacturer specialist in diesel injection parts for about 25years. We adjust our step, in draught the advanced producing techniques and high precision equipment to improve our quality with the opportunity and challenge brought by WTO. The quality of us is in the advance in Auto Parts field.
Our majored products is VE Pump and the interrelated products (such as Head Rotor, Feed Pump, Cam Plate, Drive Shaft, Magnet Valve, etc. ), Plunger (A, AS, P, PS7100, P8500, MW type, etc. ), Nozzle (DN, DNOPDN, S, SN, PN and so on. ), Delivery Valve, Cat Pencil Nozzle, Head Rotor Lucas...
If you have any interested in our products or have any inquiry, Please don't hesitate to contact us. We will do our best to offer you our high quality products and best service to satisfy you.
