Frh, Frhq Rubber Mounts, Rubber Mountings, Shock Absorber (3A4009)
| Price: |
US $ 10/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

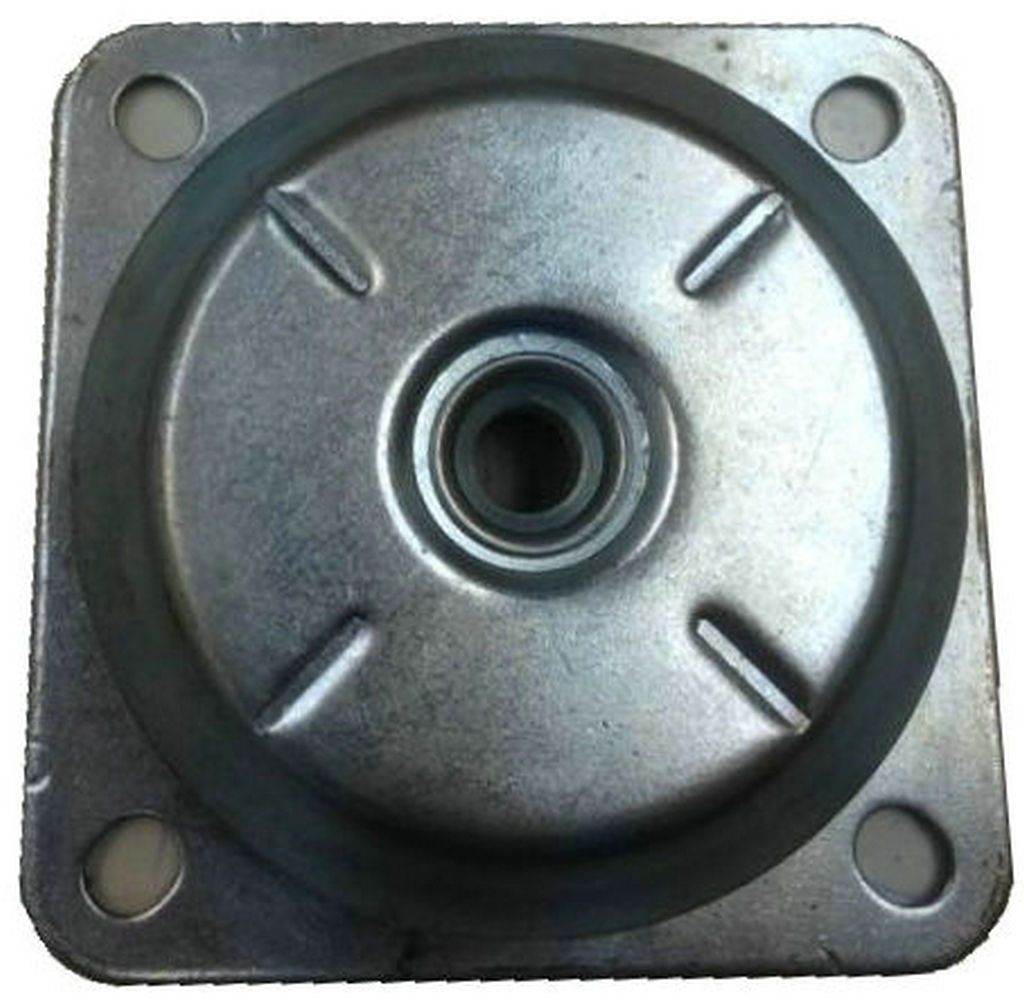

Frh, Frhq Rubber Mounts, Rubber Mountings, Shock Absorber (3A4009)Physical character: the FRS, FRH rubber mountings is one of bell-type shock absorber screw with professional technology and inimitable formulation. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 500-3500HZ at FRS mounting and 1500-3500HZ at FRH mounting, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR(default is NR)
quality: industrial grade
color: black
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8-12Mpa
hardness: 40, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
working temperature: -40°C - +120°C
working frequency: 500-3000HZ
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
| Item | IRHD | Dimensions (mm) | Average Load | Max Load | Max Compression |
| daN/mm | A | B | C | E | F | Kg/mm | Kgs | mm |
| FRS633508W | 40 | 63 | 35 | M8 | 88 | 110 | 7 | 30 | 4.3 |
| FRS633508M | 60 | 63 | 35 | M8 | 88 | 110 | 24 | 90 | 3.8 |
| FRS633510W | 40 | 63 | 35 | M10 | 88 | 110 | 7 | 30 | 4.3 |
| FRS633510M | 60 | 63 | 35 | M10 | 88 | 110 | 24 | 90 | 3.8 |
| FRS783510W | 40 | 78 | 35 | M10 | 110 | 135 | 18 | 70 | 4 |
| FRS783510M | 60 | 78 | 35 | M10 | 110 | 135 | 38 | 140 | 3.7 |
| FRS783512W | 40 | 78 | 35 | M12 | 110 | 135 | 18 | 70 | 4 |
| FRS783512M | 60 | 78 | 35 | M12 | 110 | 135 | 38 | 140 | 3.7 |
| FRS833510W | 40 | 83 | 35 | M10 | 110 | 135 | 20 | 80 | 4 |
| FRS833510M | 60 | 83 | 35 | M10 | 110 | 135 | 54 | 200 | 3.7 |
| FRS833512W | 40 | 83 | 35 | M12 | 110 | 135 | 20 | 80 | 4 |
| FRS833512M | 60 | 83 | 35 | M12 | 110 | 135 | 54 | 200 | 3.7 |
| FRS924210W | 40 | 92 | 42 | M10 | 123.5 | 150 | 63 | 220 | 3.5 |
| FRS924210M | 60 | 92 | 42 | M10 | 123.5 | 150 | 100 | 350 | 3.5 |
| FRS924212W | 40 | 92 | 42 | M12 | 123.5 | 150 | 63 | 220 | 3.5 |
| FRS924212M | 60 | 92 | 42 | M12 | 123.5 | 150 | 100 | 350 | 3.5 |
| FRS1064212W | 40 | 106 | 42 | M12 | 143 | 175 | 76 | 380 | 5 |
| FRS1064212M | 60 | 106 | 42 | M12 | 143 | 175 | 96 | 480 | 5 |
| FRS1064216W | 40 | 106 | 42 | M16 | 143 | 175 | 76 | 380 | 5 |
| FRS1064216M | 60 | 106 | 42 | M16 | 143 | 175 | 96 | 480 | 5 |
| FRS1254812W | 40 | 125 | 48 | M12 | 156 | 192 | 100 | 500 | 5 |
| FRS1254812M | 60 | 125 | 48 | M12 | 156 | 192 | 168 | 840 | 5 |
| FRS1254816W | 40 | 125 | 48 | M16 | 156 | 192 | 100 | 500 | 5 |
| FRS1254816M | 60 | 125 | 48 | M16 | 156 | 192 | 168 | 840 | 5 |
| FRS1505416W | 40 | 150 | 54 | M16 | 182 | 218 | 100 | 600 | 6 |
| FRS1505416M | 60 | 150 | 54 | M16 | 182 | 218 | 129 | 900 | 7 |
| FRS1505420W | 40 | 150 | 54 | M20 | 182 | 218 | 100 | 600 | 6 |
| FRS1505420M | 60 | 150 | 54 | M20 | 182 | 218 | 129 | 900 | 7 |
| FRH633008W | 40 | 63 | 30 | M8 | 89 | 110 | 20 | 46 | 2.3 |
| FRH633008M | 60 | 63 | 30 | M8 | 89 | 110 | 52 | 120 | 2.3 |
| FRH633010W | 40 | 63 | 30 | M10 | 89 | 110 | 20 | 46 | 2.3 |
| FRH633010M | 60 | 63 | 30 | M10 | 89 | 110 | 52 | 120 | 2.3 |
| FRH783010W | 40 | 78 | 30 | M10 | 110 | 135 | 61 | 140 | 2.3 |
| FRH783010M | 60 | 78 | 30 | M10 | 110 | 135 | 117 | 270 | 2.3 |
| FRH783012W | 40 | 78 | 30 | M12 | 110 | 135 | 61 | 140 | 2.3 |
| FRH783012M | 60 | 78 | 30 | M12 | 110 | 135 | 117 | 270 | 2.3 |
| FRH833010W | 40 | 83 | 30 | M10 | 110 | 135 | 70 | 160 | 2.3 |
| FRH833010M | 60 | 83 | 30 | M10 | 110 | 135 | 126 | 290 | 2.3 |
| FRH833012W | 40 | 83 | 30 | M12 | 110 | 135 | 70 | 160 | 2.3 |
| FRH833012M | 60 | 83 | 30 | M12 | 110 | 135 | 126 | 290 | 2.3 |
| FRH923510W | 40 | 92 | 35 | M10 | 124 | 150 | 49 | 170 | 3.5 |
| FRH923510M | 60 | 92 | 35 | M10 | 124 | 150 | 91 | 320 | 3.5 |
| FRH923512W | 40 | 92 | 35 | M12 | 124 | 150 | 49 | 170 | 3.5 |
| FRH923512M | 60 | 92 | 35 | M12 | 124 | 150 | 91 | 320 | 3.5 |
| FRH1063814W | 40 | 106 | 38 | M14 | 143 | 175 | 71 | 250 | 3.5 |
| FRH1063814M | 60 | 106 | 38 | M14 | 143 | 175 | 129 | 450 | 3.5 |
| FRH1063816W | 40 | 106 | 38 | M16 | 143 | 175 | 71 | 250 | 3.5 |
| FRH1063816M | 60 | 106 | 38 | M16 | 143 | 175 | 129 | 450 | 3.5 |
| FRH1254316W | 40 | 125 | 43 | M16 | 156 | 192 | 125 | 500 | 4 |
| FRH1254316M | 60 | 125 | 43 | M16 | 156 | 192 | 200 | 800 | 4 |
| FRH1254318W | 40 | 125 | 43 | M18 | 156 | 192 | 125 | 500 | 4 |
| FRH1254318M | 60 | 125 | 43 | M18 | 156 | 192 | 200 | 800 | 4 |
| FRH1505018W | 40 | 150 | 50 | M18 | 182 | 218 | 125 | 750 | 6 |
| FRH1505018M | 60 | 150 | 50 | M18 | 182 | 218 | 183 | 1100 | 6 |
| FRH1505020W | 40 | 150 | 50 | M20 | 182 | 218 | 125 | 750 | 6 |
| FRH1505020M | 60 | 150 | 50 | M20 | 182 | 218 | 183 | 1100 | 6 |
| Prod Model: |
3A4009 |
| Quality: |
Industrial Grade |
| Colro: |
Black |
| Surface: |
Smooth |
| Tensile Strength: |
6-8MPa |
| Hardness: |
50-60shore a |
| Elongation: |
350% |
| Density: |
1.4G/Cm3 |
| Size: |
Standard Size |
| MOQ: |
100pieces |
| Certification: |
ISO9001 |
| Type: |
Frh Type |
| Body Material: |
Rubber+Steel |
| Application: |
Anti-Vibration and Shock Absorption |
