FQZ-2A Model Automobile Alternator and Starter Test Bench

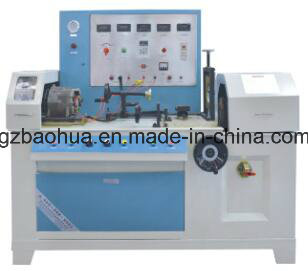

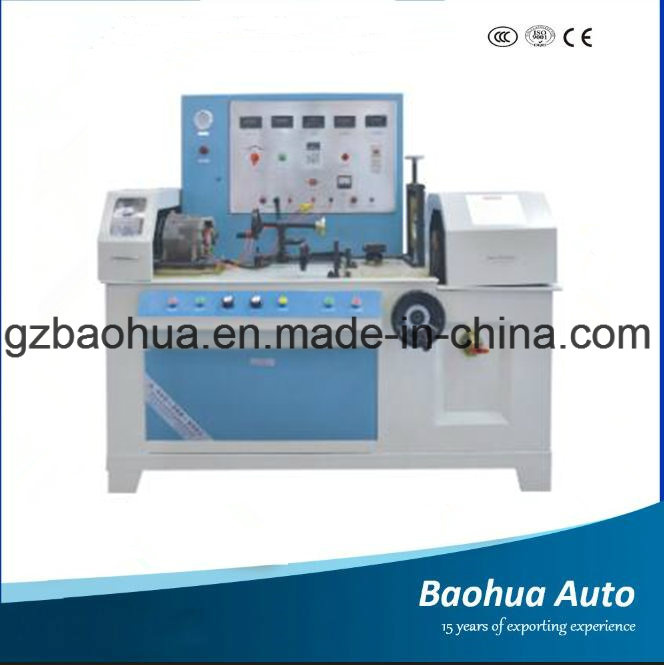

Name: FQZ-2A Model Automobile Alternator and Starter Test Bench
Brand: ibuyautoparts.com
SKU: 817447185
Availability: InStock
Rating: 5 (106 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQZ-2A
Motor Power:	7.5kw
Working Current Of Starter:	0-2000A
Power:	Electronic
Working Voltage:	380V AC50Hz
Speed Adjustable Range Of Generator Load:	Load 0-10000r/Min
Usage:	Auto Testing Machine

Product Description

Specifications

Automobile alternator and Starter Test Bench
Maximum test power of Alternator :5.5KW
Maximum test power of starter: 15KW

FQZ-2A Model Automobile Alternator and Starter Test Bench

(National patent: 2009 1 0001029.0)

1.Function Introduction

It can be used to test Alternators and Starters of Vehicles (Truck, Car, Bus, Tractor, Excavator, etc);

Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V, 10000RPM

Test Starter: 15KW, 0-2000A, 0-200N.M, 12V or 24V or 48V

It uses variable frequency speed regulation

It displays result by digital Instrument, reads data directly

It possesses high control sensitivity and strong controllability.

It can be matched with computer to display Save & Print test results or wave

2. Technical Parameter

Power Source: 380V 50Hz 3Phases ( or 220V single phase)

External DC Battery: 12V,24V,48V

Motor Power: 7.5Kw

Frequency Converter Power:11.5KW

Motor Speed:

Load: 0-12000RPM

No Load: 0-10000RPM

Test Starter:

Maximum Power: 15 KW

Maximum Current: 2000A

Maximum Torque: 200N.M

Time Setting: 0.1~99.99S (Adjustable)

Load: voltage, current

No load: voltage, current, torque

Test Alternator (Generator):

Maximum Power: 5.5 KW

Maximum Current: 200A

Voltage: 12V /24V

Load: voltage, current, speed

No load: voltage, speed

Load Mode:Electronic Module (Rotary, Most advanced, Much Better than Variable Resistance)

Instrument: Digital

Air Pressure:0-1MPa (Adjustable)

Detail Image
