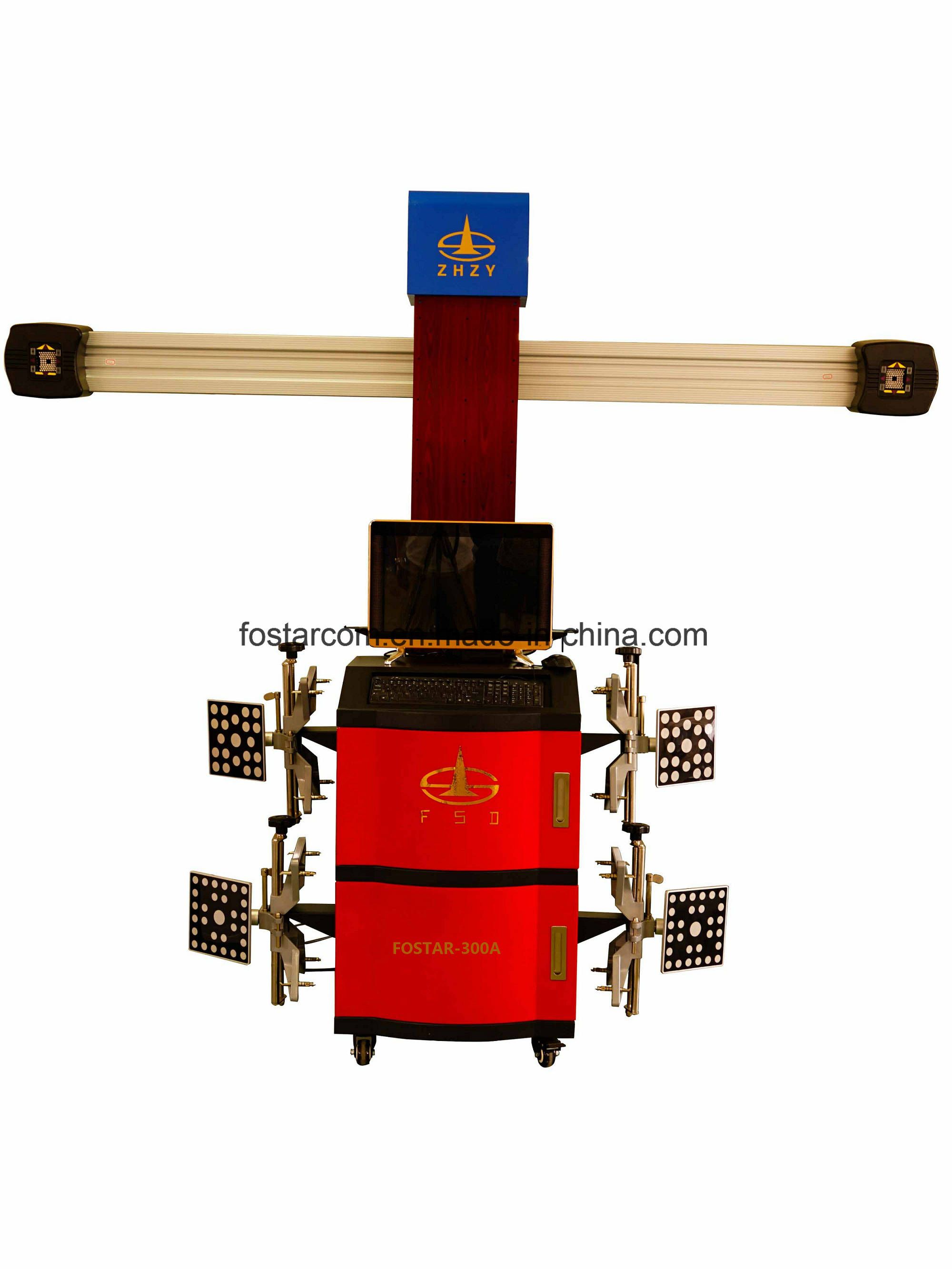

Fostar-300A 3D Wheel Aligner

FOSTAR-300A
3D Wheel Alignmaer
Dynamic constitute coordinate,no affected by the inclination of lift automatic fracking target,testing on all height
coordinate,no affected
by the inclination of lift
classic design,brand
computer,classical
cpmfigiratopm
the inclination of lift
22inch screen machine
double mouse board
personalized design

Product introduction 7075.
Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:The installation range: 1.6--3.1 meters.
Relative humidity: 3550 degree.
Relative humidity: less than or equal to 85%.
Optional: Black reflector, interchangeable reflector, small front big reflector.
The standard reflector size as reflector pattern before and after.
This machine uses high speed import SONY camera, 5 million phase element, the camera working speed to 30 out of phase speed work per second. Reflector panels have a variety of patterns, software vision calibration accuracy: 0.02mm.
A calibration before leaving the factory, no need to re calibrate. Cart time only takes 3 seconds.
Main Feature

1. Independent research and development ability, software upgrade continuous (software function, interface design and database upgrade)
2. Imported camera lens with high quality.
3. Non-contact, avoid damage to aluminum rim.
4. Voice prompt function makes the operation convenient.
5. Intellectual property is one of our development value and will realize max. profit.
6. All the components are made from moulds, can be installed or replaced at will.
7. The software function and interface can be designed at customers' demand.
8. The promoter elements under warranty for lift,low price in using.
9. HD target board can realize interaction without calibration.
10. With vehicle and customer search function,quick and convenient in searching.
11. Pure homemade 3D four wheel alignment tester,hight precision in measurement.
The main technical parameters are as follows:

Location parameter	Accuracy (center value)	Precision range	Maximum measurement range
Display accuracy and measurement accuracy	±0.01°/0.01mm	Measurement accuracy of 0.01 degrees or 0.01mm
Toe	±0.2°	±0.01°	±30°
Dip angle	±0.3°	±0.01°	±30°
Inclination angle of main pin	±0.3°	±0.01°	±15°
Inclination angle of main pin	±0.4°	±0.01°	±20°
thrust angle	±0.2°	±0.01°	±6°
Maximum turning angle	±0.2°	±0.01°	±30°
Withdrawal angle	±0.2°	±0.01°	±6°
Tread	±0.25cm	±0.01°	3000mm
Wheelbase	±0.25cm	±0.01°	8000mm
Diagonal money	±2mm	±0.3cm	12000mm
Rolling radius	±2mm	±0.3cm	700mm

Main feature

-- 3D digital camera measurement system: two 3D digital cameras, four targets
--  Target Features: There is no electronic components on the target, without data transmission,
--  no batteries facilitate the complete elimination of circuit failure. The product is more stable
--  Equipment Calibration: Equipment calibration is done once only when the installation is complete, which is not necessary to regularly repeat.
--  dynamic measurement: dynamic measurement based on pushing. Without raising its body, the vehicle is at a natural state. Simultaneous detection of four wheels would reduce measurement time and improve the accuracy.
Software system: simple operation, to read the basic wheel alignment data within two minutes.
-- Low demand for horizontal level of lift: for the list, the levelness difference of 5cm or less has little impact on the measurement results, different from the traditional technology  with over-reliance on gravity optical platform levelness degrees.
--  all-model measurement: it can detect long body, low chassis vehicles.
--  maintenance: Maintenance is simple, the device doesn't need periodic calibration.



Detailed product description



1, measurement of the fastest four wheel positioning (with cart interface) cart process 3 seconds, after the stop time is only one second 2.The whole time 0.2 seconds to update the data once
2, the most accurate measurement of the four round of the positioning of the instrument
3.3D Accuracy up to the standard of the international brand, hope that professional users can provide positioning service for the intermediate vehicle
3, the best domestic repeat of the 3D four round of the round of the number of repeated measurements to achieve the international top brands (put two pictures, is the value of the two measurement)
4, adjust the steering wheel thrust line positioning principle of convenient efficient and convenient put the steering wheel (two) 5.Picture, a steering wheel slanting, one is right
5, a comprehensive measurement of camber angle toe kingpin caster kingpin inclination tread wheelbase diagonal tire rolling radius (a group of pictures screenshot)
6, lifting machine is not on the impact of uneven (schematic)
7, after measuring the stability of the most far away from the camera 8 - 7 meters still can be measured (pictures, put away after the)
8, lifting adjustment can be under the vehicle lifting the state claim easily the camber of the vehicle solution and inclination of adjustment (screenshot, lifting raised)
9, the unit of arbitrary switching degree of sub millimeter per cent between arbitrary switching to facilitate a variety of operating habits (screenshot, before and after conversion)
10, the static measurement function convenient but the accuracy is not high, only for in the measurement requirements of the vehicle, nor has the function of adjust the direction of the
11, two can locate the function only needs to hang the two to be able to locate the dish to be convenient and quick, but is unable to swing the steering wheel
12, the latest volume of the database to meet the needs of various regions of the country to use the device (database image)
13, up to the choice of the target before the target (a variety of target can choose or customize)
14, Epad PAD can sync, 1 easily shunting save labor cost '' to
15, the public Audi Passat special adjustment software, to facilitate the right to send (synchronized picture: computer and)
16, the use of background equipment management, you can record the daily use of the device (display the contents of the document)
