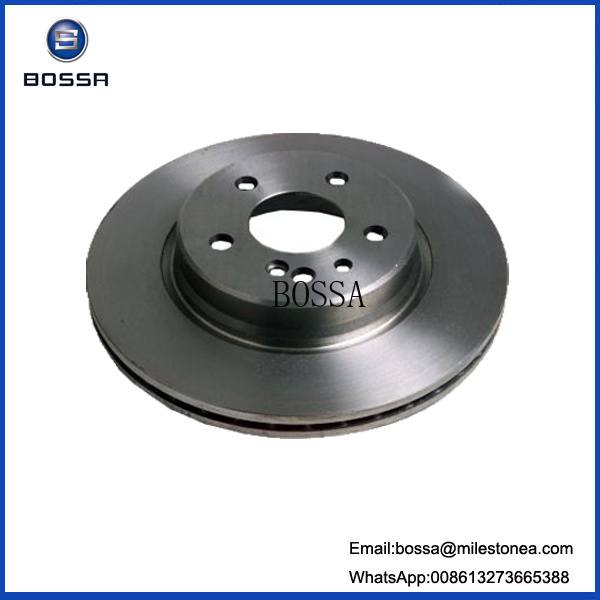

Model details
| OEM Number | 90121445 |
| Description | Brake disc |
| Make For | Chevrolet/Chevy |
| Material | Steel/iron |
| Outer Diameter | 236mm |
| Height | 41mm |
| Weight | 3.74kg |
| Num. of holes | 4 |
| Centering Diameter | 60mm |
| Min. thickness | 17mm |
| Brake Disc Type | Internally Vented |
| Brake Disc Thickness | 20mm |
| Certification | ISO/TS16949, ISO9001, SGS |
| Annual productivity | 150000 tons per year |
| Packing | Standard exported packing |
| Delivery Time | 10-15 days |
Our Company Information
Xingtai Bossa Machinery Manufacturing Co., Ltd. is a group company that specializes in search, manufacture, sales and service.
Our foundry, machining workshop and export department:
Sand casting since 1991
Precoated sand casting since 1996
Lost foam casting and mould opening since 1999
CNC machining since 2001.
Aluminum die-casting since 2009
Bossa international import & export department since 2012.
Any products can be made if drawings and samples can be supplied.
Our Mainly Business
We supply all kinds of casting part for M-BENZ, SCANIA, VOLVO, RENAULT, BPW, NISSAN, TOYOTA, IVECO, MAN ect.
Our leading products have various of brake drum, brake shoe, brake lining, brake pad, wheel hub, brake disc, axle, gearbox, cylinder head. spring seat.
Also we manufacturing and exporting investing parts, die casting parts, CNC machined parts, forging parts, stamping parts and metal sheet parts.
Material in our factory below
| Country | Gray iron |
| China | - | HT350 | HT300 | HT250 | HT200 | HT150 | HT100 |
| Japan | - | FC350 | FC300 | FC250 | FC200 | FC150 | FC100 |
| America | NO.60 | NO.50 | NO.45 | NO.35 | NO.30 | NO.20 | - |
| Russia | C40 | C35 | C30 | C25 | C20 | C15 | C10 |
| Germany | GG40 | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Italy | - | G35 | G30 | G25 | G20 | G15 | G10 |
| France | FGL400 | FGL350 | FGL300 | FGL250 | FGL200 | FGL150 | - |
| England | - | 350 | 300 | 250 | 200 | 150 | 100 |
| Poland | Z140 | Z135 | Z130 | Z125 | Z120 | Z115 | - |
| India | FG400 | FG350 | FG300 | FG260 | FG200 | FG150 | - |
| Romania | FC400 | FC350 | FC300 | FC250 | FC200 | FC150 | - |
| Spain | - | FG35 | FG30 | FG25 | FG20 | FG15 | - |
| Bulgaria | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | FGG10 |
| Australia | T400 | T350 | T300 | T260 | T220 | T150 | - |
| Sweden | O140 | O135 | O130 | O125 | O120 | O115 | O110 |
| Hungary | OV40 | OV35 | OV30 | OV25 | OV20 | OV15 | - |
| Bulgaria | - | Vch35 | Vch30 | Vch25 | Vch20 | Vch15 | - |
| (ISO) | - | 350 | 300 | 250 | 200 | 150 | 100 |
| (COPANT) | FG400 | FG350 | FG300 | FG250 | FG200 | FG150 | FG100 |
| Netherland | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Luxembourg | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | - |
| Austria | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| | | | | | | | |
| Country | Nodular cast iron |
| China | QT400-18 | QT450-10 | QT500-7 | QT600-3 | QT700-2 | QT800-2 | QT900-2 |
| Japan | FCD400 | FCD450 | FCD500 | FCD600 | FCD700 | FCD800 | - |
| America | 60-40-18 | 65-45-12 | 70-50-05 | 80-60-03 | 100-70-03 | 120-90-02 | - |
| Russia | B40 | B45 | B50 | B60 | B70 | B80 | B100 |
| Germany | GGG40 | - | GGG50 | GGG60 | GGG70 | GGG80 | - |
| Italy | GS370-17 | GS400-12 | GS500-7 | GS600-2 | GS700-2 | GS800-2 | - |
| France | FGS370-17 | FGS400-12 | FGS500-7 | FGS600-2 | FGS700-2 | FGS800-2 | - |
| England | 400/17 | 420/12 | 500/7 | 600/7 | 700/2 | 800/2 | 900/2 |
| Poland | ZS3817 | ZS4012 | ZS4505 | ZS6002 | ZS7002 | ZS8002 | ZS9002 |
| 5002 |
| |
| India | SG370/17 | SG400/12 | SG500/7 | SG600/3 | SG700/2 | SG800/2 | - |
| Romania | - | - | - | - | FGN70-3 | - | - |
| Spain | FGE38-17 | FGE42-12 | FGE50-7 | FGE60-2 | FGE70-2 | FGE80-2 | - |
| Belgium | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Australia | 300-17 | 400-12 | 500-7 | 600-3 | 700-2 | 800-2 | - |
| Sweden | 0717-02 | - | 0727-02 | 0732-03 | 0737-01 | 0864-03 | - |
| Hungary | GV38 | GV40 | GV50 | GV60 | GV70 | - | - |
| Bulgaria | 380-17 | 400-12 | 450-5 | 600-2 | 700-2 | 800-2 | 900-2 |
| 500-2 |
| |
| (ISO) | 400-18 | 450-10 | 500-7 | 600-3 | 700-2 | 800-2 | 900-2 |
| (COPANT) | - | FMNP45007 | FMNP55005 | FMNP65003 | FMNP70002 | - | - |
| Finland | GRP400 | - | GRP500 | GRP600 | GRP700 | GRP800 | - |
| Netherland | GN38 | GN42 | GN50 | GN60 | GN70 | - | - |
| Luxembourg | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Austria | SG38 | SG42 | SG50 | SG60 | SG70 | - | - |
FAQ
1. Do you have your own casting factory?
Yes, we have, that is why our price so competitive in the market.
2. Do you just produce the cast iron material?
No, we could produce cast iron, aluminium, steel etc.
3. What is it your mainly products?
We mainly produce brake shoe, brake drum, brake disc, wheel hub, axle casing and axle, gear box, various of casting covers, supports. All kinds of engine filters.
4. Can you produce other products?
Yes, all the cast iron products just have sample or drawings we could produce.
From 0.5kg-500kg, all the casting we could produce. Each year, 70000 tons cast products leave our factory and different city of China and overseas.
5. Do you have strictly test and inspection for the products before leave the factory?
Yes, before the products leave factory. For our qualiry control department will inspect the products.
Why choose us
| Experience in casting for over 15 years and served customers all around the world. |
| Certification: ISO/TS16949, ISO9001, SGS |
| Technical experts take in charge of making drawings for the sample offered by clients. |
| Automatic production line including sand mixing, moulding and pouring. |
| Each piece should be strictly tested, E.g. Dynamic Blance Test, Round Jumpness Test and Chemical composition of the crucible Test, etc. |
Welcome inquiry, Ms. Alice
BOSSA GROUP is one group company that produce various of casting &machining parts, Engine filters for trucks and tractors etc. The head office is in Xingtai city.
Xingtai Bossa Machinery Manufacturing Co., Ltd. is one branch factory of Bossa Group for casting and machining, that located in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting and machining spare parts for customers since 1991. It covers an area of over 40000 square meters and an architectural area of 12000 square meters,
Bossa Machinery mainly produce the casting & machining products for heavy duty trucks, agricultural machinery and construction machinery. The leading products: Axles, wheel hub, brake drum, brake shoe, leaf spring bracket, transmission box, cylinder block, cylinder head etc casting goods. Some times we help customer make the Axle assemble etc.
Xingtai Milestone Import & Export Trading Co., Ltd is one branch company of Bossa Group, That specialized in designing, developing producing and selling all kinds of engine filters for generators, construction machines, commercial vehicles, buses, agricultural machinery, heavy-duty trucks etc.
For our filter quality are good and instead of original ones used in the after-sales market. Such as Fleetguard Perkins, Deutz, Caterpillar, Komatsu etc.
BOSSA GROUP use advanced technology and a quality management system to guarantee the quality of products. According to ISO9001 system standard, We formulate perfect quality inspection standards and establish a scientific and strict quality guarantee system. 30% our products according to customer's drawing or sample.
BOSSA and MST are our Logo used for overseas market. All of our goods import and export through our Milestone company. We will use about 10 years and make as famous brand in the word.
We believe that quality is a life of one enterprise and service creates future.
Welcome customers all over the word to contact us.
