Fold-In-Half Bens VITO Wheeelchair Lift 350KG Loading
Model:WL-D-880U
Advantages:
Unobstructed view from within the vehicle
Added safety benefit of minimized blind spots
Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door
Automatic inboard/outboard rollstops
Quiet, smooth and easy operation and maintain
Stable and compact when stowed
Permanent, no-lube bearings at all major pivot points
Powerful hydraulic pump
Built-in manual back-up system
| Model | WL-D- 880-1150 | WL-D- 880S-1150 | WL-D- 880U-1150 | WL-D- 880-1250 | WL-D- 880S-1250 | WL-D- 880U-1250 |
| Platform Size (A×B) | 720×1150 | 720×1150 | 720×1150 | 820×1250 | 820×1250 | 820×1250 |
| Overall Width (C) | 1135 mm | 1135 mm | 1135 mm | 1235 mm | 1235 mm | 1235 mm |
| Overall Height (D) | 1225 mm | 1225 mm | 1130 mm | 1225 mm | 1225 mm | 1130 mm |
| Overall Length (E) | 440 mm | 440 mm | 500 mm | 440 mm | 440 mm | 500 mm |
| Max Lifting Height(F) | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm |
| Rated Voltage | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V |
| Max Working Pressure | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa |
| Loading Capacity | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg |
| Own Weight | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg |

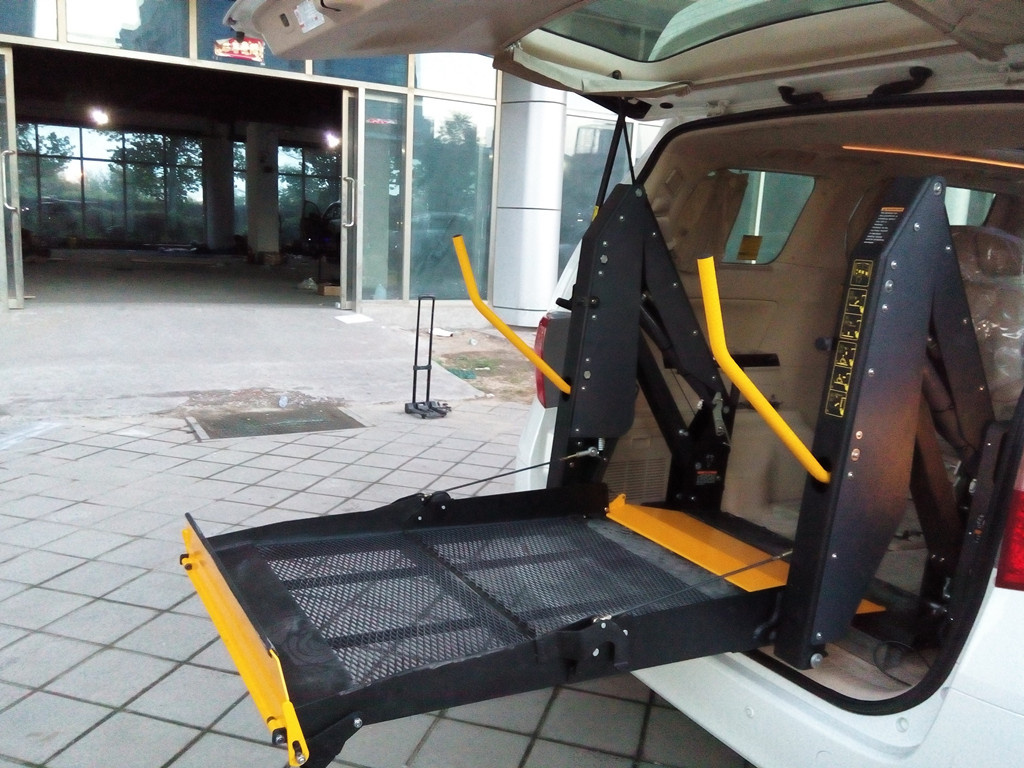

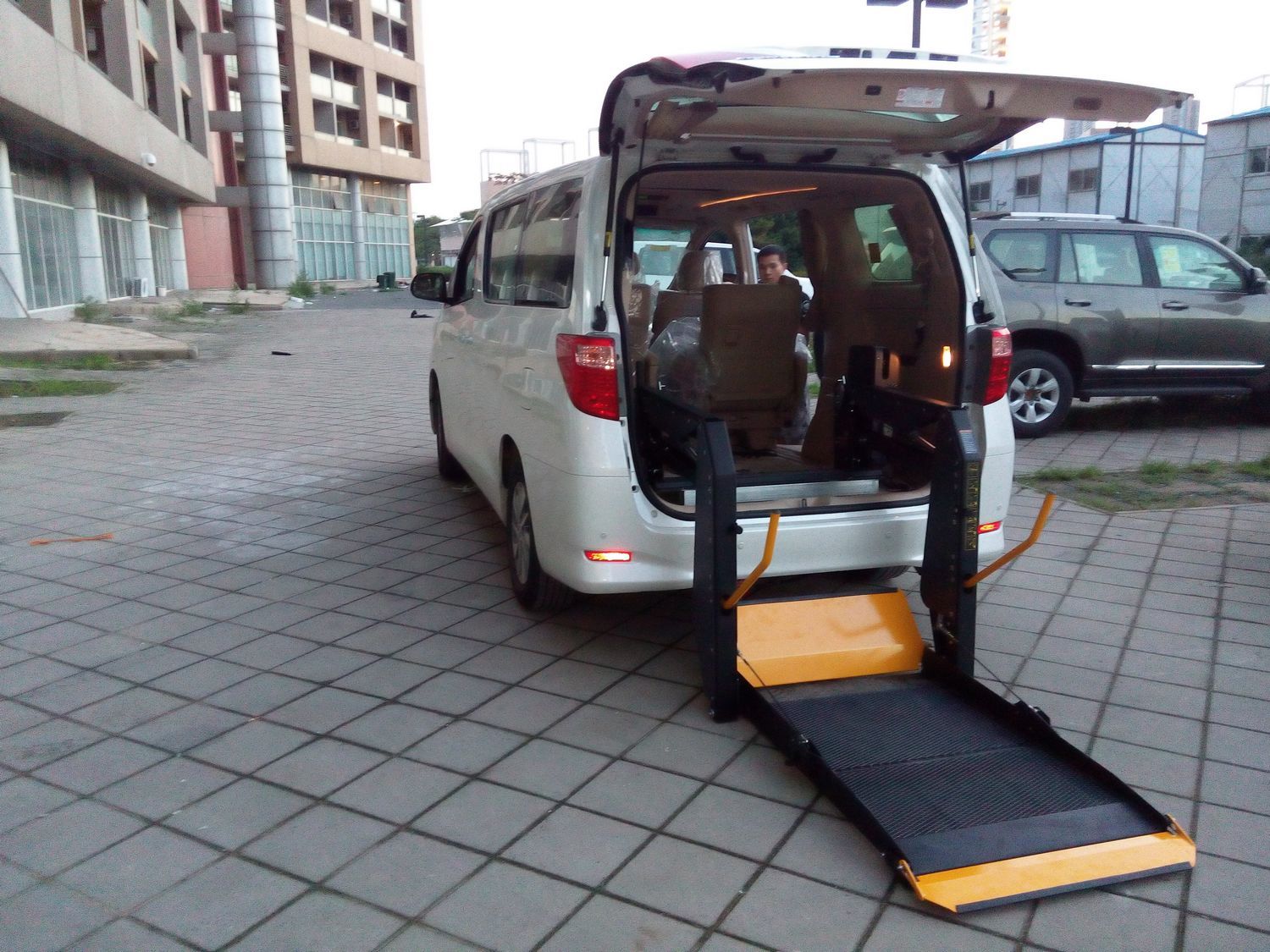

This wheelchair lift is the lift with a unique "fold-in-half" design.When the lift is stowed, it provides an unobstructed view for the driver, helping to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside.Plus, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required - even when a long platform is necessary for larger wheelchairs and power scooters.The lift is quiet and easy-to-maintain.
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
