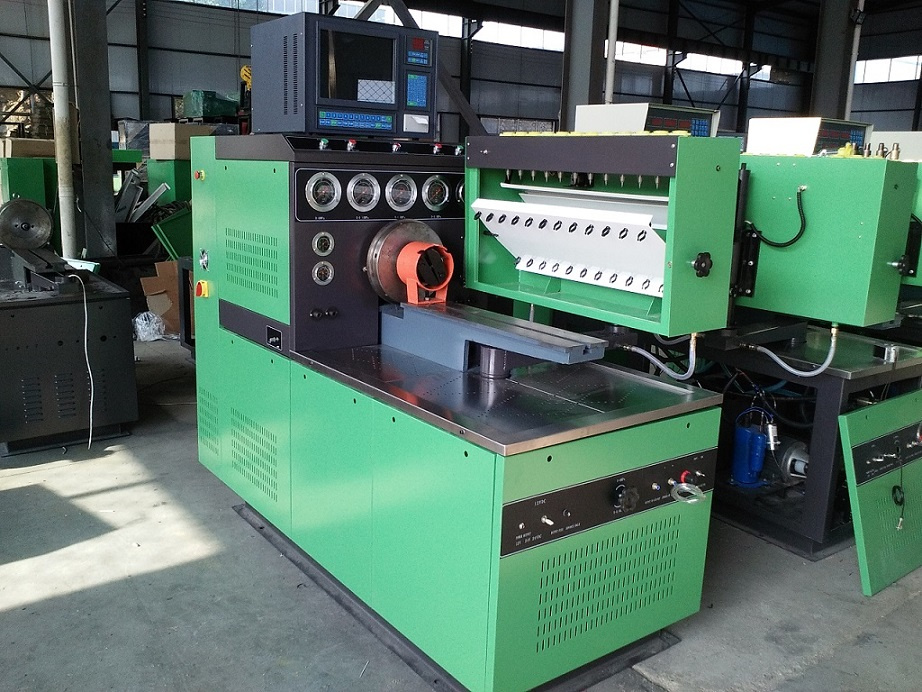

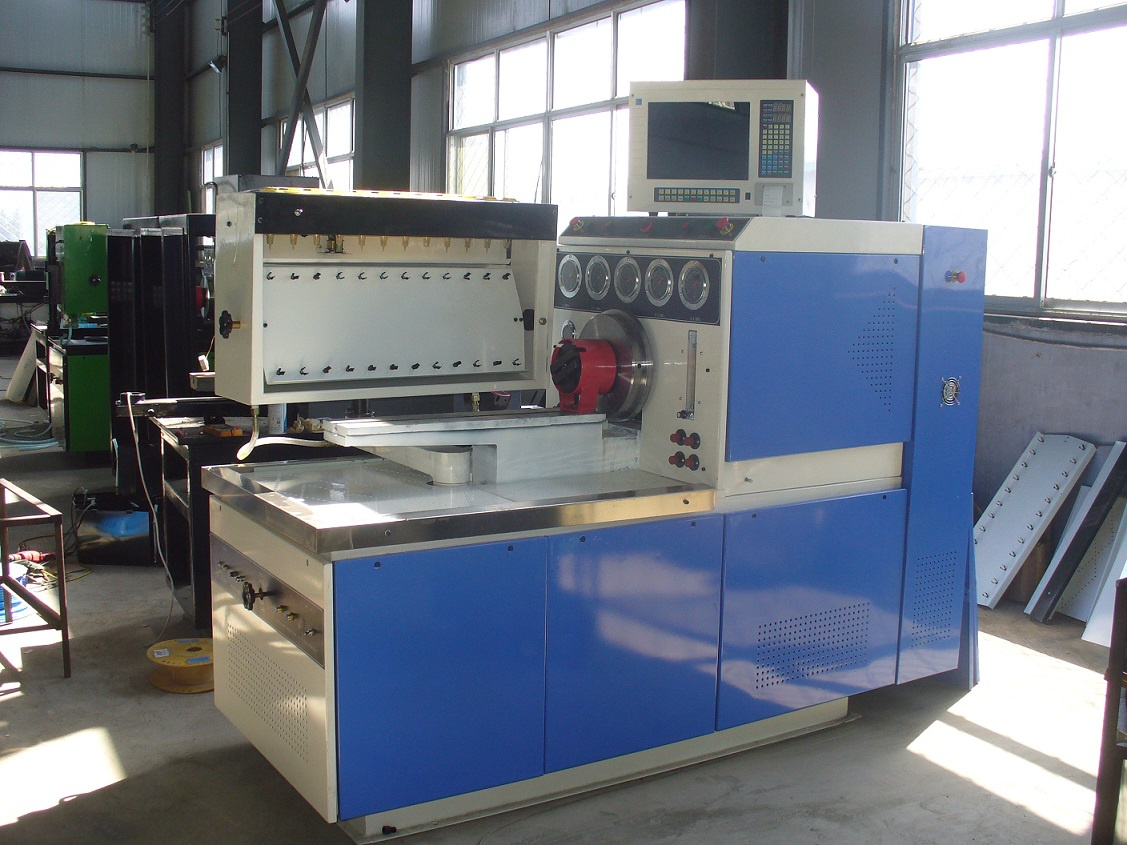

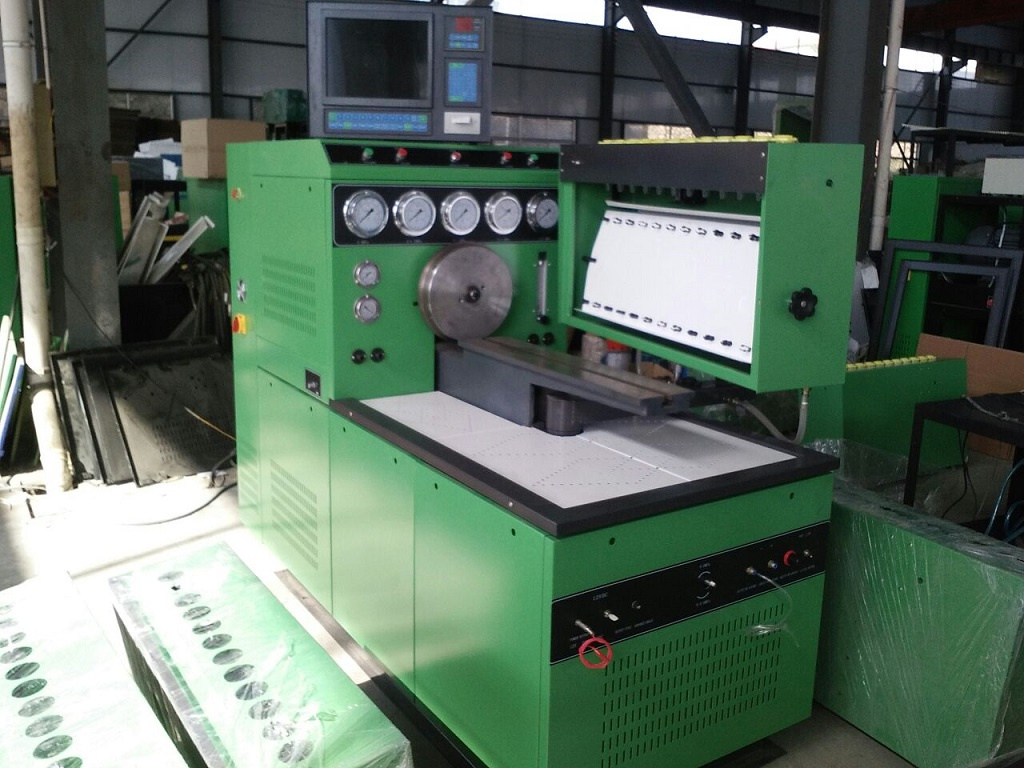

FM619 Diesel Fuel Injection Pump Test Bench

FM619 Diesel Fuel Injection Pump Test Bench
Price: US $ 3600-5000/Piece
Trade Terms: By Express
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

Product Description

Diesel Fuel Injection Pump/Common Rail Test Bench (12PSDW)

Test bench with digital screen and control and measured by the computer in real time.

12PSDW diesel fuel injection test bench (test stand) is designed for customers require. It adopts high quality frequency conversing device, and has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.

Output power(KW): 5.5, 7.5, 11, 15, 18.5 or other power on customer request.

Functions:
1. Measurement of each cylinder's delivery at various rotation speeds
2. Checking each cylinder's injection starting position and delivery interval angle
3. Checking and adjust the mechanical speed governor.
4. Checking and adjusting the distributor pump.
5. Checking and adjusting behavior of supercharging and compensatory device.
6. Measurement of the reflux delivery of distributor pumps
7. Checking the electromagnetic valve of distributor pumps. (12V/24V)
8. Measurement of the distributor pump's body internal pressure.
9. Measurement of the advance angle.
10. Checking the sealing of fuel injection pump body
11. Install tube of auto-sucking oil supply can check oil supply pump. (including VE pump. )
12. Measurement of rack travel (Option)
13. Machine oil lubrication system (Option)
14. Cast iron base (Option)
15. Forced Cooler system (Option)

Technical parameters:

1. Adjustable rotation speed range: 0~4000 RPM
2. Test cylinders: 12.
3. Rotation speed presetting: 10 kinds.
4. DC. Supply: 12/24V
5. Feeding pump motor: 1.1kw
6. Series of graduate glass: 45CC, 150CC. The 260CC is optional
7. Volume of oil tank: 60L
8. Main shafts Center height: 125mm
9. Flywheel inertia's moment: 0.8kg. M2,
10. Stoke counting: 50-9999
11. Control temperature of fuel oil (º C): 40± 2
12. Feed oil pressure: Low pressure 0-0.4MPa, high-pressure 0-4Mpa.
Internal pressure: 0-0.16MPa, 0-1.6MPa.
13. Rotation direction of Main shafts: Clockwise or Anticlockwise
14. Packing dimension: 5M3 CBM
15. Packing weight: 900kg
16. Output power: 5.5kw, 7.5kw, 11kw and 15 kw or on request
17. 3-phase power supply: 380V/50Hz or on request.
18. Color available: Green, blue, red, yellow or on request.
12PSDW Test Bench PACKING LIST
Accessories and main machine parts are all packed in accessories box
NO.NameSpecification or SymbolQuantityUnitRemark
1Fuel Injection Pump Test Bench12PSDW1Set
2Feed Oil PipesM20×1.5×1200 (mm)2PC
3High Pressure Oil PipeM14×1.5/M14×1.5×600 (mm)12PCsWith it injector itself
4High Pressure Oil PipeM14×1.5/M12×1.5×800 (mm)12PCs
545ml Graduate45ml12PCs
6150ml graduate150ml12PCs
7Standard InjectorPB55ST4212PCs
8Oil pump connectorM12×1.52PCs
9Oil pump connectorM14×1.52PCs
10Oil pump connector M16×1.52eachPCs
11Scale Lever 1PCs
12Rotational Jointφ12.5 φ14.5 φ16.52eachPCs
13Versatile angle iron 1Set
14CouplerIIIIII.IVV1each/5pcsPCs
15Clamping Bracket 1Set
16T-type screw nail 3eachPCOne of them longer
17Hexagon WrenchS=101PCs
18Locating BlockIIIIIIP7, P7100 etc.2each/14pcsPCs
19DC power supply wire12/24V1PCs
20Air Pipe assemble
Prod Model: FM619
Markets: North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Tester Equipment: Nt619 Diesel Fuel Injection Pump Test Bench
Test Function: Diesel Fuel Injection Pump
Testing: Pump Injection Measurance
Output Power: 7.5kw, 11kw, 15kw, 18.5kw
Voltage: 380V 220V 415V
Power Phase: 3-Phase
Certification: ISO
Update Method: by Hard Disk
