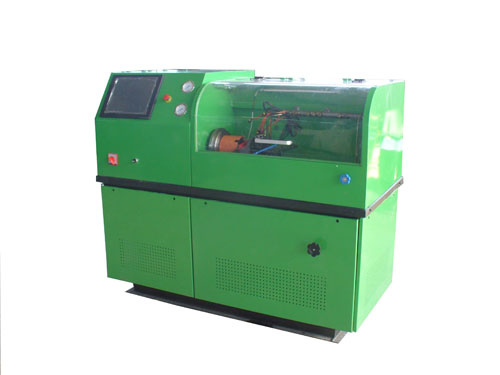

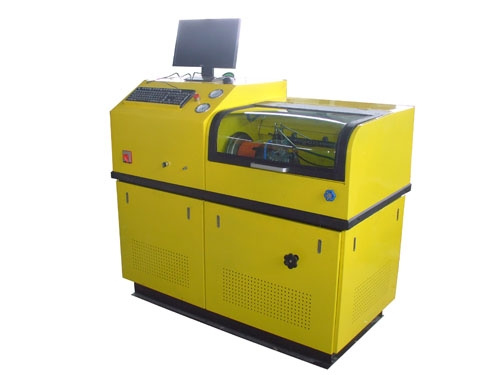

FM-3000S Common Rail Test Bench
| Price: |
US $ 4800-5300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Common Rail System Test Bench
FM-3000S Common Rail System Test Bench, 7.5kw, 380V/50Hz, 8 cylinders, WINDOWS

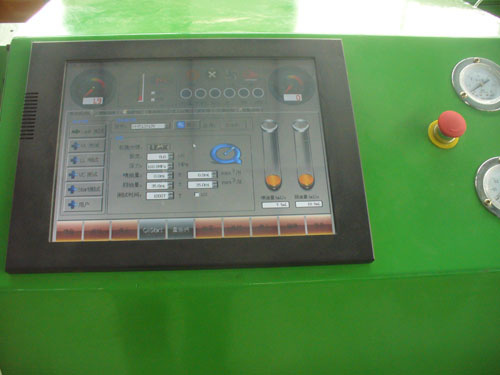

Operation system, LCD screen, oil measure digital display, support BOSCH, DELPHI, DENSO
System, with Bosch date base for testing reference, can test 4PCS common rail injectors at at a time,
Cleaning nozzle
Description
FM-3000S COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing. Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.
System Application:

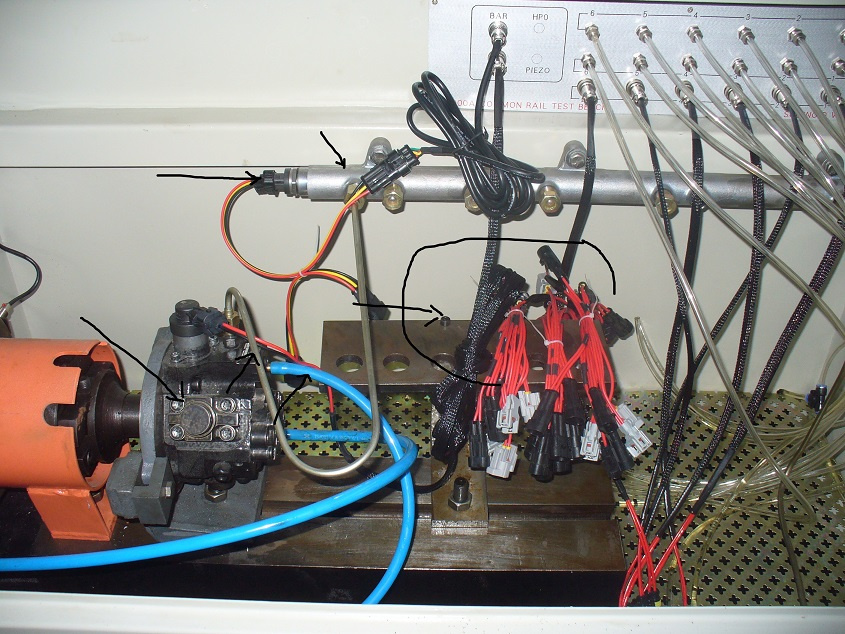

The system is suitable for detection of BOSCH, DENSO, DELPHI common rail pump and injectors. Such as CP1, CP2, CP3, HP3 series injector pump and the type of Electromagnetic injectors. It also can test 4 common rail injectors in one time.
Technical parameters
1. Main motor speed: 0-4000 r/min, can be adjustable
1. Motor power: 7.5kw, 11kw, 15kw, 18.5kw optional
2. Fuel Injector open voltage
Control range: 12V, 80V, 150V
Control accuracy: Phase adjustment
3. Injector opening frequency control: 0-1000Hz
Control accuracy: 1Hz
4. Fuel injector hold time
Control range: 0-65535us
5. Delivery oil count
Control times: 0-1000times
Control accuracy: 1 times
7. Fuel pressure control: 0-2000 bar
Control accuracy: 1bar
8. Electronic power: 3 phase 380V / 3 phase 220V optional
Main Functions:
1. Detection of the common rail injectors: Clean, pre-injection, main injection, the maximum injection, minimum( start)spraying, return oil quantity.
2. Cleaning of nozzles.
3. Detection: Common rail pressure sensor, pressure regulator.
4. Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.
5. Support system: BOSCH, DELPHI, DENSO.
Packing List:| Item no. | Name | | Model | Qty | Unit |
| 1 | FM-3000S III, Common Rail System Test Bench | | FM-3000S | 1 | unit |
| 2 | High-pressure oil pipe | | M14*M14*450 | 1 | pcs |
| 3 | High-pressure oil pipe | | M12*M14*450 | 1 | pcs |
| 4 | Oil Selector | | Φ7 | 1 | pcs |
| 5 | Oil Selector | | Φ9 | 1 | pcs |
| 6 | Main cables | | | 1 | pcs |
| 7 | Secondary cables | | | 4 | pcs |
| 8 | Air hose | | Φ6 | 2 | m |
| 9 | Air hose | | Φ12 | 1 | m |
| 10 | Reture oil connector | | Φ6 | 1 | pcs |
| 11 | Reture oil connector | | M8 | 1 | pcs |
| 12 | Oil Pump CP1 | | CP1 Bosch | 1 | pcs |
| 13 | Angle Iron | | | 1 | pcs |
| 14 | Couplings | | II | 1 | pcs |
| 15 | Couplings | | III | | pcs |
| 16 | Monitor | | | 1 | set |
| 17 | Common rail fuel rail | | | 1 | pcs |
| 18 | DRV | | | 1 | pcs |
| 19 | Input oil pipe | | M20×1.5×1200 | 1 | pcs |
| 20 | Return oil pipe | | M20×1.5×1200 | 1 | pcs |
| 21 | T-screw | | | 2 | pcs |
| 22 | Nut | | | 1 | pcs |
| 23 | HP0 Block | | HP0 | 1 | pcs |
| 24 | Common rail injector holder | | | 1 | set |
| 25 | 12pcs/set common rail adaptor | | | 1 | set |
| Prod Model: |
FM-3000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Equipment: |
Common Rail System Test Bench |
| Testing Pumps: |
Bosch, Denso, Delphi, Siemens |
| Testing Injectors: |
Bosch, Denso, Delphi, Siemens |
| Pressure: |
0-2000bar |
| Test Data: |
Rich Data, Access to 1700PCS |
| Color: |
Green, Yellow, Red, Blue |
| Display Monitor: |
Computer Display |
| Certification: |
ISO |
| Update Method: |
by Hard Disk |
