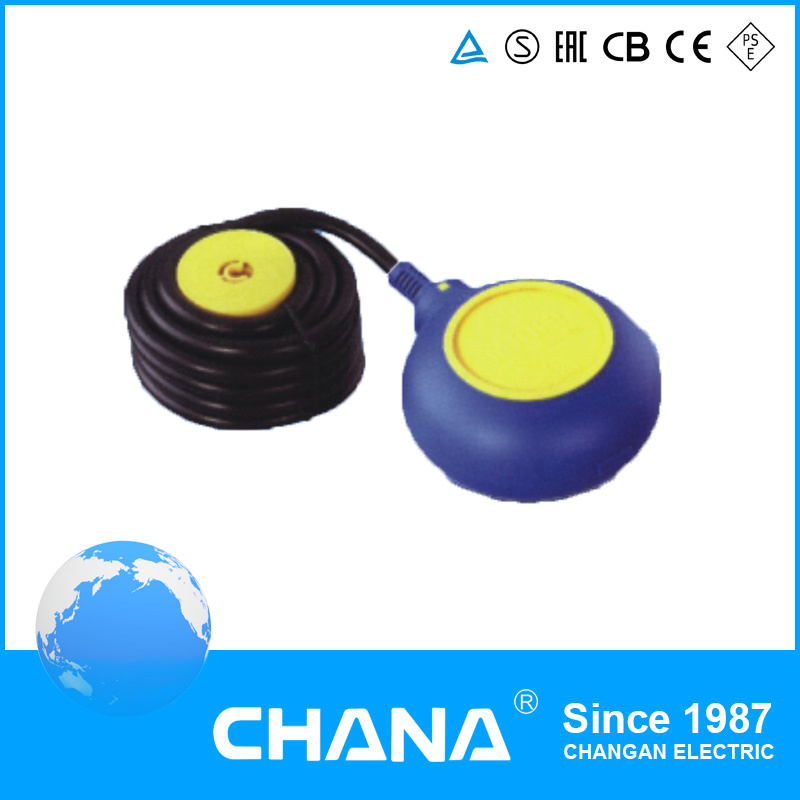

Float Switch Series Cay-3/4/5
| Price: |
US $ 1.5-1.98/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Description For CAY-3/4/5Specifications of the float switchWater-proof float switch1. Simple construction and characteristics.
2. Sturdy and durable,
3. Easy installation.
4. CE
Simple construction, reliable performance of water waterproof float switchThe product can output stable and reliable switch control signal of "of making", breaking "without any fault action, so its eliability is very high and antiinter-ference is strong.
Sturdy and durable, need not maintain of water level float switch
The product can be used for a long time after it being installed. Almostno maintence and repairing problem would occur during its operation period.
Easy installation method, convenient adjustment method
The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to secure the signal cable finish installation.
Wide application scope, strong generality.
The product applies to branch water, sewage acid-base solution of less than medium concentration, oils and situations requiring no pollution(for example food and drinks indusry), diesel oil gasification kitchen range, and automatic fuel feeding.
Simple circuit. Economial and practical
Operation voltage is 200V, and current can be up to 10A. The applied circuit of the product is simple, so application costis very low.
Instructions for installation of water level float switch
May be used for direct level control. In accordance with product electrical specifications. In the case of approved products, the ground wire will always be included and the ground wire sheath will always be yellow/green. In this case, this two remaining wires are suppied for "high closure"or, specifitic request, "low closure".
Installation of counterwelght
Use wires: "Black" and "Blue" with these contacts, the regulator closes when down/opens when up. The wire that is not used must be correctly insulated.
Features of water level float switch
1. Insert the cable in the counterweight. From the conical part and rotate it. Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to book the counterweight.
2. Force the counterweight on the ring by rotating it, using a slight pressure.
THE COUNTER WEIGHT IS FURNISHED ONLY ON REQUEST. AVOID JOINTS IN THE LEVEL REGULATOR CABLE. NEVER IMMERGE POSSIBLE CABLE JOINTS IN THE WATER.
Technical Parameters
Microswitch: 10(8)A 250V~10(4)A 380V
Switch currency: +++ ≥ 50 000switch workings tested by VDE specialisation
Protective connection: T 70U
Protection: Waterproof
Max. Temperature: 70° C
Working pressure: Max. 1bar
Circuitbreaking capacity: Directly KW with 250V
Standard Cable Length: 5m ~ 100mm or Accorrding to customer's request
Float: Polypropylene
Cable: Polypropylene Jacket
Counter Weight: Polypropylene Sealed Housing
Cable Material: HO7RN- F3x0.75mm2, PVC (3x0.5mm2, 3x0.75mm2, 3x1.0mm2) | Rated Voltage | AC 125-250V |
| Max.Current | AC 16(4)A |
| Frequency | 50/60Hz |
| Max.Using Temperature | 50 |
| Protection Degree | IP68 |
Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Company View. Shipping:1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team. FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
| Prod Model: |
CAY-3/4/5 |
| Types: |
Float Switch |
| Protect: |
Waterproof |
| Current: |
up to 10A |
| Voltage: |
220V |
| Scheme: |
N/O, N/O+N/C |
| Wires Length: |
2/5meters . |
| Colors: |
Black/Brown/Blue |
| Export Market: |
World |
| Quality: |
AAA |
| Type: |
Normal Open |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Chana |
| Usage: |
Key Button Switch |
| Certification: |
RoHS |
