Flat Bed Tipper Trailer Axle Fuwa Axle
| Price: |
US $ 1350-1360/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
1.Product Description:Flat Bed Tipper Trailer Axle Fuwa Axle We are selling various of trailer parts, trailer axles, trailer fifth wheel, trailer suspension, trailer landing gear, trailer king pin, and its related parts.Below is part of our trailer axles: Specification of fuwa type trailer axles:
Model |
Capacity
(kg) |
Track TR
(mm) |
Spring seat installation
(mm) |
Axle Beam
(mm) |
Center distance of Chamber
(MM) |
Total Length
(mm) |
Recommended wheel |
Weight
(kg) |
S Cam Brake
(mm) |
Wheel fixing Studes
(mm) |
PCD
(mm) |
H
(mm) |
Fuwa-011 | 10.500 | 1820 | ≤435 | 0 127 | 368 | 2165 | 7.50T-20 | 360 | S420*180 | 10*7/8″-11 BSF | 335 | 281 |
| Fuwa-012 | 13.000 | 1840 | ≤455 | S 150 | 388 | 2185 | 7.50V-20 | 365 | S420*180 | 8*M20*1.5 JAP | 335 | 221 |
| Fuwa-013 | 16.000 | 1850 | ≤455 | S 150 | 354 | 2205 | 8.00V-20 | 425 | S420*220 | 10*M22*1.5 ISO | 335 |
281 |
Fuwa-016 | 16,000 | 1850 | ≤455 | round 127 | 354 | 2185 | 8.00V-20 | 420 | S420*220 |
10*M22*1.5
ISO |
335 | 281 |
| Fuwa-017 | 16,000 | 1850 | ≤455 | square 150 | 354 | 2205 | 8.00V-20 | 425 | S420*220 |
10*M22*1.5
ISO |
335 | 281 |

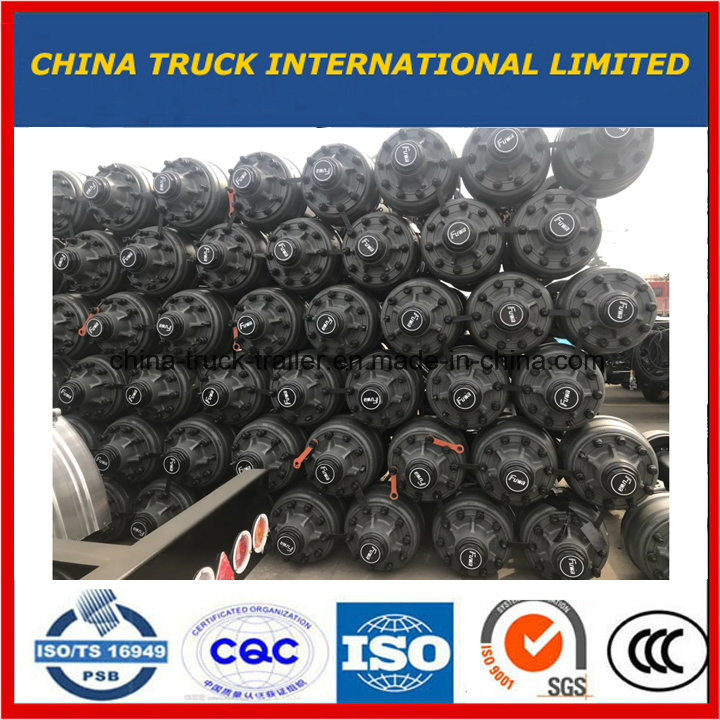

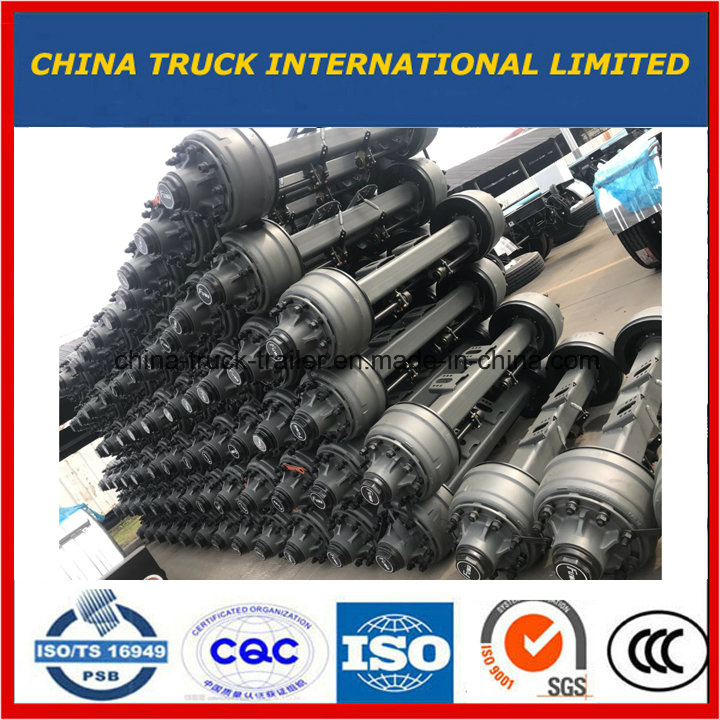

2.Photos of Fuwa Axle:
You can also choose BPM type trailer axles:
Specification of BPW type trailer axles:
Model |
Capacity
(kg) |
Cam Brake
(mm) |
Track TR
(mm) |
Spring Seat installation
(MM) |
Axle Beam
(mm) |
Center distance of Chamber
(mm) |
Total length
(mm) |
Recommended |
Weight
(kg) |
Wheel PCD
(mm) |
Wheel H
(mm) |
BPW-021 | 12.000 | S420*180 | 1840 | 980 | S150 | 422 | 2155 | 7.50V-20 | 370 | 335 | 281 |
| BPW-022 | 14.000 | S420*180 | 1840 | 980 | S150 | 354 | 2190 | 8.00V-20 | 430 | 335 | 281 |
| BPW-023 | 16.000 | S420*220 | 1850 | 980 | S150 | 376 | 2240 | 8.00V-20 | 475 | 335 | 281 |
| BPW-024 | 18.000 | S420*220 | 1850 | 980 | S150 | 376 | 2240 | 8.00V-20 | 485 | 335 | 281 |
| BPW-029 | 20.000 | S420*200 | 2242 | 1000-1060 | S150 | 260 | 2720 | 8.50V-20 | 745 | 335 | 281 |
3.Our Main Products:Our products include full series Truck&Trailers,such as:
*Dump Truck
*Tractor Truck
*Container chassis semi-trailer series
*Cargo semi-trailer series
*Tipper semi-trailer series
*Low bed trailer series
*Liquid tanker series
*Power tank transport series
*Concrete mixer series
.etc,and spare parts
4.FAQQ1: What about your products quality ?
A: Quality is our culture! "Our factory has advanced production technology and management team!
We always attach great importance to quality controlling from the very beginning!
Q 2: Can I have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
And we are well capable in offering overseas after-sales service. Besides, we also provide rational
packing and shipping program,let shipment save money and security.
Q 4: How to guarantee customers get the goods smoothly after they pay ?
A: Don't worry, dear. We have been in this field for more than 20 years, we will send you production photos once in a while, and we will help you to book the latest ship.
Q 5: What's the delivery time ?
A: The delivery time is within 30 working days after receiving your advance payment.
Q 6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
Q 7: Do you have any used truck and semi trailer for sale ?
A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
show you our stock if you need.
Q 8: What logistics ways we can work for shipment?
A: We can ship construction machinery by various transportation tools.
(1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.,we can ship construction machinery by road or railway.
(3) For light spare parts in urgent demand, we can ship it by international courier service, such as
DHL, TNT, UPS, or Fedex.5.Warranty:(1)One year quality guarantee or within 100000km, which comes the first.
(2)There are two ways we can ship the compensated spare parts:
Upon the urgent request from our clients,we will ship the compensated spare parts by international courier such as DHL,TNT,UPS or Fedex.
‚For the regular claim for the spare parts,we will ship the compensated spare parts together with the next shipment of new machines.The shipment expense is free.6.Company Information: CHINA TRUCK INTERNATIONAL LIMITED was established in Yangzhou,is approved by the Yangzhou Municipal Foreign Economical and Trade Commission,Yangzhou City Administration for Industry and Commerce for approval,registered limited liability company,and has obtained the right to import and export. Registered capital of RMB ten million.
We are SINOTRUK,CIMC,XCMG Liugong,HYVA,C&C authorized distributor.The main products include dump truck,tractor head,concrete mixer truck,flatbed semi trailer,tipper semi trailer,low bed semi trailer,fuel tanker,cement tanker,crane truck,truck mounted crane,excavator,bulldozer,motor grader,road roller,wheel loader and so on.Since the establishment of the company and several large domestic enterprises to establish a good relationship of cooperation,formed a relatively sound marketing network and a stable customer base.In international business,companies with Japan,India,Thailand,Singapore,Australia,Russian,Southeast Asia,Africa and other countries and regions to establish a stable business development,the company basically has laid a solid foundation,has a good business reputation and operating style.We will in good faith principle,wholeheartedly with the vast number of customers at home and abroad to work together. Contact Person:Hellen(Ms)China Truck International Limited
Adress:8th floor Cimc plaza No.10 West wenchang Rd,Yangzhou,Jiangsu,China
Website:http://china-truck-trailer.com
Tel:+86 514 8736 7577
Fax:+86 514 8732 5750
Mobie+86 13328144273
| Prod Model: |
Fuwa axle 13 ton |
| Suspension: |
Customized |
| Axle Brand: |
Fuwa Square Axle, 13 Ton-20 Ton Capacity/Set, 3PCS |
| Load Capacity: |
13ton~20 Ton |
| Square Axle Tube: |
127X127mm, 150X150mm Square Shaft Tube |
| Round Axle Tube: |
127mm/Dir, 146mm/Dir, 150mm/Dir |
| Axle Beam: |
Round or Square |
| Tyre: |
11r20 Steel Radius Tyre |
| Track Length: |
Customized |
| Brake: |
420*220mm & 440*220mm |
| Warranty: |
1 Year |
