Qingdao Eaa Rubber Ind. Co., Ltd. >> Firestone Air Spring W01-M58-7548 Goodyear 1r12-702 Rubber Air Spring

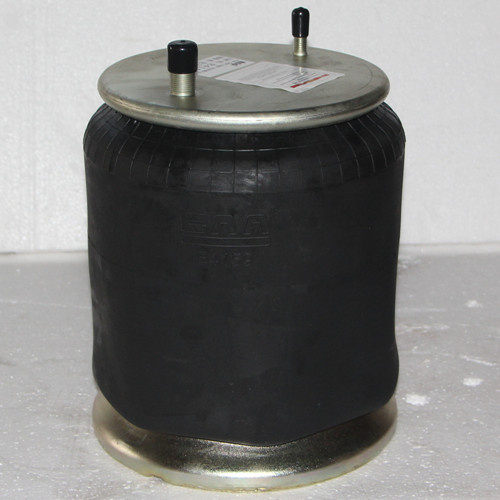

Firestone Air Spring W01-M58-7548 Goodyear 1r12-702 Rubber Air Spring

Firestone Air Spring W01-M58-7548 Goodyear 1r12-702 Rubber Air Spring
Price: US $ 45.5-48/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: E7548
Weight: 10.95kg
Design Height: 400mm
Working Stroke: 430mm

Product Description

EAA RUBBER AIR SPRING E7548

Cross InformationOEM InformationTechnical data
Contitech:4159NP03Fruehauf:UJA 0894Weight:10.95kg
Firestone style number:1T15M-9Fruehauf:UJB 02038Design height:400mm
Firestone order nr:W01-M58-7548 Deflection (Hight min):220mm
Goodyear: 1R12-702 Deflection (Hight max):650mm
  Working stroke:430mm
  Measurement d max:325mm
  Space required:340mm
  Loading cap at 5.0 bar:23.5kn
  Loading cap at 7.0 bar:33kn



We are Qingdao EAA Rubber Ind. Co., Ltd., who have great power and experience in supplying and producing all kinds of air spring and Tyre in China, now our product range reaches almost 300 types which are equivalent to Conti, firestone and Goodyear...Fit for bus, truck, trailer and industrial application. Meantime, we have exported all kinds of air spring to America, Europe and Southeast. Asia with premium quality and competitive price for the OEM and aftermarket.

We are always prepared to increase our range of products by particularly requested articles or to produce according to particular samples or drawings in accordance with our customers' requirements.

As a global strategy, we are planning to find more partners in oversea markets, so if any interest, please feel free to contact us.
