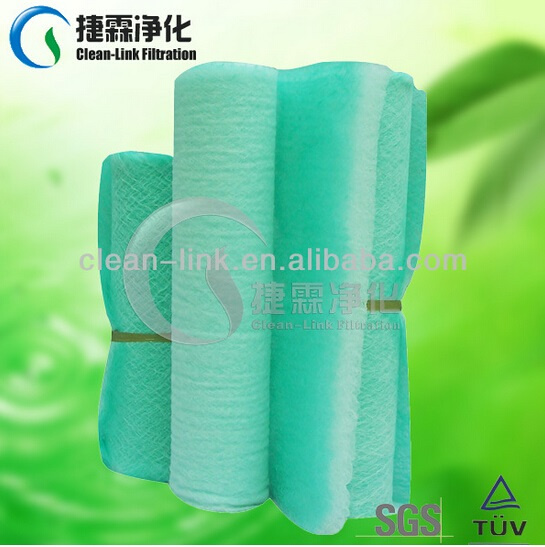

Fiberglass Auto Roll Filter (PS-830)

Specifications
Fiberglass Paint Spray Booth Paint Arrestor
1) small resistance
2) tempreture resistance up to 170 degree
Speciality:
1)   Made of long fibreglass in non-woven way,large ventilation quantity,small resistance, good efficiency of the dust arrestance for the over-spray.
2)   It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system
3)   High strength fibreglass increasing structure;the windward side is green ,the leeward side is white..
4)   The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust
5)   Nonflammability, heat resistance 170 temperature
6)   The compression packing may save the fare and the storage space in the transportation.After decompression, it will regain its original condition
7)   Outer frame  may choose the paper frame , the galvanization iron frame,or aluminium alloy frame.
Using:
1)    Thick dust filtration for the general air-condition system.
2)    Applied to the dry spray painting platform and the exchaust gas system of the automobile spray paintting room.It is environment-friendly, reducing the pollution to the  environment
Remark:
Wide variety of sizes and thickness
specification:

Model	PA-50/60	PA-100
Avg.arrestance(acc.EN779)	92%-96%	97%-99%
Initial pessure drop	15Pa	20Pa
Final pessure drop	250Pa	280Pa
Air velocity	0.7-1.75m/s	0.7-1.75m/s
Dust holding at tested final	3200-3600 g/	3600-4900g/
Temp.resistance,const	170	170
Temp.short peaks	190	190
Normal thickness	50/60mm	100mm

Why us
1We have specialized in the export of air filters for over 8 years.
2We have our own factory and brand.
3We  provide OEM and ODM service ,sample production and service according to your demand
4The dimension can be customized.
5 The delivery date will be within 2 weeks
6The products have passed ISO90012008 and SGS certification.
7With independent R&D and design capablities.
8Well equipped with complete faciliies and skilled empolyees.
