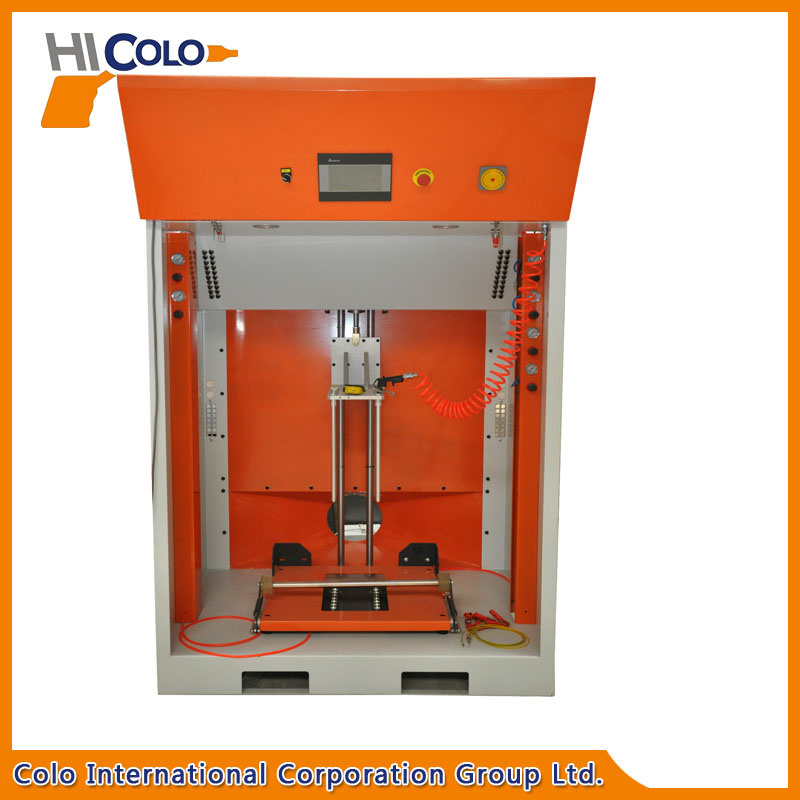

Fast Color Change System Powder Feed Centers
| Price: |
US $ 7500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Fast Color Change System Powder Feed CentersFeaturesPowder barrel lid design savess powder
Original packaging for direct supply powder
Nested structure design, cleans thorough vibration from our newly designed fludized place and powder
Powder-bit auto-detection alarm
Increase the supply of new powder automatically
Automatic matching of old and new powders together.
Applicated for the automatic coating boothFlexible with its larger hopper, quick in color change, it produces great coating results in a convenient
modular concept with OptiFlow injectors
Automatic vibrating powder feed center parameters| Power supply voltage | 1P 220VAC (110V) |
| Power | 500W |
| Gas pressure | 0.6-0.8MP |
| powder pump | 16pcs(max) |

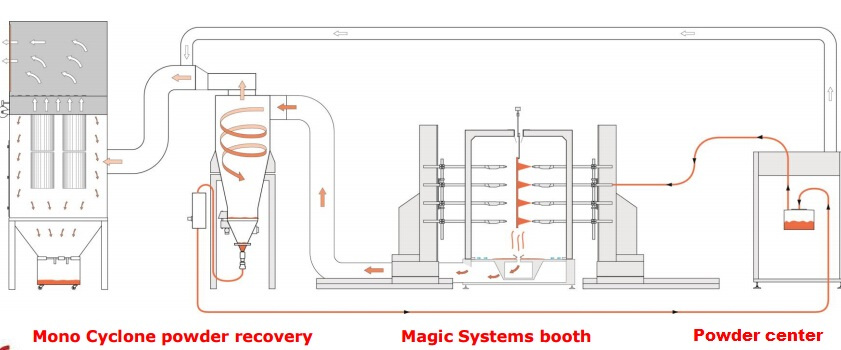

Image showThe automatic spray booth with reciprocator -automatic guns, various powder hoses,and injectors
will stay clean automatically during color change. A filter system maintains a comfortable
indoor environment by transferring dusts during cleaning.
Parts of the powder feed center:hopper,hose,pump
Hopper:the operator places the powder box under the powder hopper and activates the ventilation
of the OptiCenter housing
The recovery hose and pump are cleaned by compressed air pulses.
Side and front view
Powder Feed Center for fast color changes and improvement of productivityThe powder feed central system provides fast color change. The automatic spray gun, various powder hoses, and injectors will stay clean automatically during color change. A filter system maintains a comfortable indoor environment by transferring dusts during cleaning. The unit is fully programmable. The powder position sensor will detect the position of the powder. A lack of powder will signal a warning which will fluidized the powder barrel :100 liter capacity. The cover extends the capacity and will prevent the powder from wafting.Shake table: If you do not use the fluidized powder box, the powder can also be placed directly in the original packing carton shock stage. From there the powder can be pumped directly from the carton supply to the powder gun. It does not require cleaning when changing the powder coating box.The automatic sifter contains a screen which removes impurities contained in the recovered powder.Control System: Touch screen operator panel and keyboard input increase the supply of new powder automatically. Automatic matching of old and new powders together. More details,please contact with us.
| Prod Model: |
CL-6000PC |
| Use: |
Powder Supply |
| Working: |
Automatic |
| Frequencey: |
50-60Hz |
| Delivery Time: |
15 Working Days |
| Air Pressure: |
0.6-0.8MP |
| Power: |
500W |
| Power Supply Voltage: |
1p 220VAC (110V) |
| Pump Quantity: |
16 Powder Pump at Most |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Hicolo |
Hi colo Group owned two factory, one it is produce the powder paintings -
Tiantai Colourful Plastic Powder Co., Ltd. And another one it is professional in the powder coating application equipment ---
Hangzhou color powder coating Equipment Co., Ltd It is located in the electrostatic generator production base- Hangzhou Gongshu Economic Park, We have ability of producing electrostatic powder coating line, paint coating line which have automatic, semi-automatic, manual and special type and curing and drying ovens with many kinds heat way (oil, gas or electric), cartridge or cyclone recovery system, wet curtain or dry painting booth, conveyor systems, spray or immersion type pretreatment plant. Also we supply the spare parts such as filters, guns, reciprocators, pumps and so on.
Our machines can spray well in a variety of workpiece shapes, , it efficiently solve the penetration problems on the corners and recesses. At the same time, with the intelligent method design, it is easy for operation. We will make unremitting efforts to promote the electrostatic powder coating industry as our responsibility. Above of our productions are produced in term of ISO9000 and ISO14000, so we always keep concept of environmentally friendly. With advanced production and testing equipment, in the high-quality technology and excellent and design of the joint efforts of staff, the annual product of electrostatic generators more than 5, 000 sets of, circuit boards, modules, more than 30, 000 sets of the spray gun. COLO Coating Equipment has opened up not only the China local market and has been successfully exported to Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy, Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries, and get the Satisfaction with different clients.
Welcome guests from all countries in the world visit our factory, choosing colo it is choosing quality machine, , high-quality after-sales service. Holesale, sales and service of electrostatic coating. Its products have continuously been developed and improved day by day.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
