| Prod Model: |
29.5-25-32TL |
| Markets: |
North America,South America,Africa,Oceania,Mid East |
| Type Of Mode: |
L-5 Pattern |
| Raw Material: |
Natural Rubber |
| Tt Or Tl: |
Tt, Tl |
| Type: |
Tubeless |
| Diameter: |
≥22" |
| Tire Design: |
Bias Belted Tyre |
| Certification: |
ISO |
| Tread Pattern: |
L3/E-3 |
| Kind: |
L-5 |
Product Description

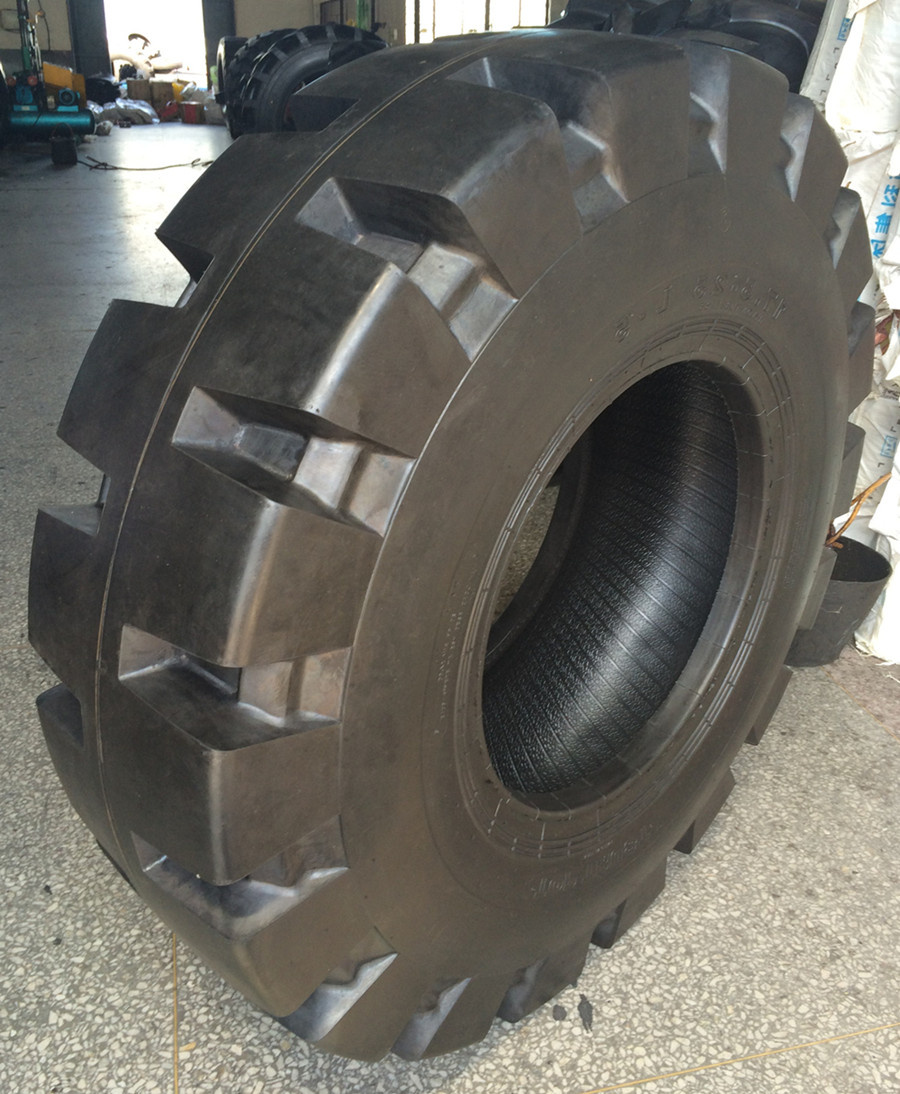

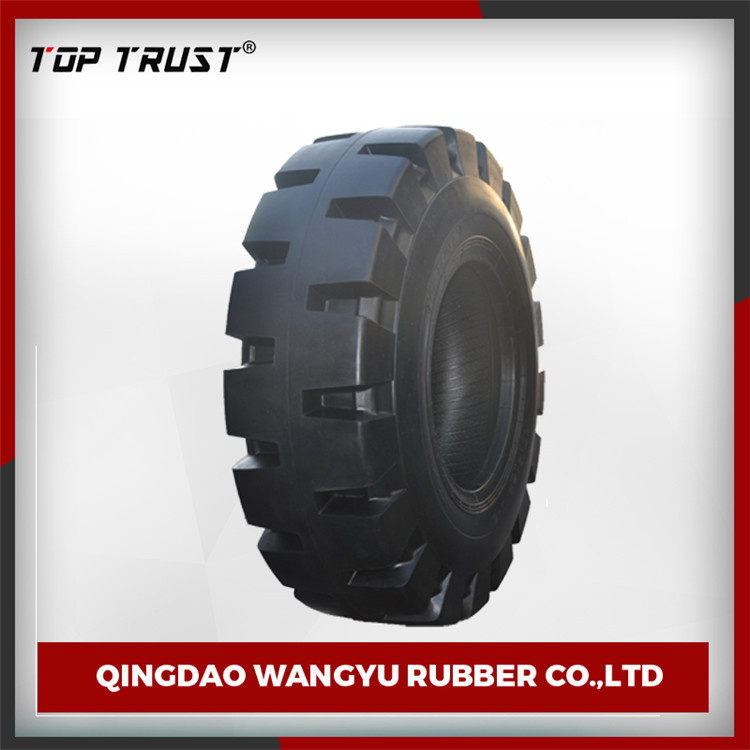

Bias OTR tires:
Brand: TOP TRUST
Port: Qingdao
TT and TL
OTR tires with broad applicability, suitable for heavy dump trucks, scrapers and loaders under various conditions; Excellent heat and wearing resistance and strong traction due to the special tread and rubber formula and strong carcass design; Widly used as durable tyres in various mines and construction sites.
Size-29.5-25
Standard rim: 25.00
Ply rating: 32
Depth of the pattern: 36mm
Section width: 710mm
Overall diameter: 1840mm
Load: 11500kgs
Pressure: 325kpa.
We are QINGDAO WANGYU RUBBER Co., Ltd. The factory is located in Qingdao, Shandong, China, with 18 years tyre production experience of 100, 000 sqm and RMB 96 million fixed assets. There are over 620 workers, 78 professionals included. Also, the factory is equipped with advance production and quality check equipment.
With 8 series and over 200 sizes of tyres, tubes and flaps, the monthly export volume has exceeded 110*40HQ. Now, we have exported to over 55 countries, with 15 agents in different countries. The brands are TOP TRUST, ALL WIN and SUNNINESS, OEM brand is also accepted, APOLLO and DOUBLE STAR included, all certified by DOT, ISO9001, CCC and BV, SGS testified.
Below are the best selling products.
OTR tyres: L-3, L-5 and G-2 series, with tube and tubeless ones.
Industrial tyres: Inflated and Solid forklift tyres, L-2 skid steer/ bobcat tyre, R4 tubeless tyre,
R3 road roller tyre.
Agricultural tyres: R-1 tractor tyre, F2 direction tyre, F3 and I-1 implement tyre.
TBB: All sizes of truck and bus bias tyres
LTB: All sizes of light truck bias tyres
Tube: Natural rubber and butyl ones for all sizes
Flap: All sizes of flaps are available.
We are Premier member of Alibaba and Made-in-China.
Besides, we go to many tyre exhibitions at home and abroad.
At home: Spring and Autumn Canton Fair, twice Shanghai Tyre exhibition, Guangrao and Qingdao Tyre Exhibition.
Abroad: Equip Auto in Alger, Algeria (March), Sao Paolo Tyre show in April, Dubai Automechanica in June, Panama Latin American Tyre show in July, Las Vegas SEMA show in November.
For more information, please visit www.wangyutyre.com
Please feel free to contact, I'm ready at your service. Here is the contact detail
Name: Apple Yu
Tel: 0086-532-85899575
Fax: 0086-532-85938328
Mob: 0086-15253270437
| L-5 pattern |
| TIRE SIZE | STANDARD RIM | PLY RATING | DEEP | SECTION WIDTH | OVERALL DIAMETER | LOAD | PRESSURE | (Km/h) | Type |
| (mm) | (mm) | (mm) | (Kg) | (Kpa) |
| 29.5-25 | 25.00 | 28 | 36 | 710 | 1840 | 11500 | 325 | 50/10 | TT/TL |
| 26.5-25 | 22.00 | 32 | 35 | 645 | 1743 | 10000 | 350 | 50/10 | TT/TL |
| 26.5-25 | 22.00 | 28 | 35 | 645 | 1743 | 9250 | 300 | 50/10 | TT/TL |
| 26.5-25 | 22.00 | 24 | 35 | 645 | 1743 | 8250 | 250 | 50/10 | TT/TL |
| 23.5-25 | 19.50 | 24 | 31 | 595 | 1615 | 8000 | 350 | 50/10 | TT/TL |
| 23.5-25 | 19.50 | 20 | 31 | 595 | 1615 | 7300 | 300 | 50/10 | TT/TL |
| 23.5-25 | 19.50 | 16 | 31 | 595 | 1615 | 6150 | 225 | 50/10 | TT/TL |
| 20.5-25 | 17.00 | 24 | 29 | 520 | 1490 | 6700 | 400 | 50/10 | TT/TL |
| 20.5-25 | 17.00 | 20 | 29 | 520 | 1490 | 6000 | 325 | 50/10 | TT/TL |
| 20.5-25 | 17.00 | 16 | 29 | 520 | 1490 | 5450 | 275 | 50/10 | TT/TL |
| 18.00-25 | 13.00 | 36 | 28 | 495 | 1615 | 16000 | 850 | 50/10 | TT/TL |
| 18.00-24 | 13.00 | 32 | 28 | 495 | 1615 | 15000 | 750 | 50/10 | TT/TL |
| 17.5-25 | 14.00 | 20 | 25 | 445 | 1350 | 4250 | 400 | 50/10 | TT/TL |
| 17.5-25 | 14.00 | 16 | 25 | 445 | 1350 | 4250 | 300 | 50/10 | TT/TL |
| 16/70-24 | 13.00 | 14 | 25 | 410 | 1175 | 3375 | 350 | 50/10 | TT/TL |
| 16/70-20 | 13.00 | 18 | 25 | 410 | 1075 | 3350 | 450 | 50/10 | TT/TL |
| 16.00-25 | 11.25 | 32 | 26 | 430 | 1490 | 12500 | 875 | 50/10 | TT/TL |
| 16.00-24 | 11.25 | 24 | 26 | 430 | 1490 | 6000 | 475 | 50/10 | TT/TL |
| 16.00-24 | 11.25 | 20 | 26 | 430 | 1490 | 5450 | 400 | 50/10 | TT/TL |
| 16.00-24 | 11.25 | 16 | 26 | 430 | 1490 | 4875 | 325 | 50/10 | TT/TL |
| 15.5-25 | 12.00 | 12 | 24 | 395 | 1275 | 3250 | 250 | 50/10 | TT/TL |
| 14/90-16 | 8.5H | 16 | 16 | 215 | 896 | 1245 | 290 | 50/10 | TT/TL |
| 14.00-24 | 10.00 | 24 | 24 | 375 | 1370 | 5150 | 575 | 50/10 | TT/TL |
| 14.00-24 | 10.00 | 20 | 24 | 375 | 1370 | 4625 | 475 | 50/10 | TT/TL |
| 14.00-24 | 10.00 | 16 | 24 | 375 | 1370 | 4000 | 375 | 50/10 | TT/TL |
| 1200-16 | 8.50 | 12 | 20 | 244 | 884 | 1245 | 390 | 50/10 | TT/TL |
