Factory Sale Wheel Alignment Scissor Lift

Name: Factory Sale Wheel Alignment Scissor Lift
Brand: ibuyautoparts.com
SKU: 798956765
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 3500-3800/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Introduction:
It's specifically for the repair maintenance, four-wheel aligning, tyre-changing and maintenance of various of high-grade cars. The advantage is easy operation, smooth& reliable working process, high lifting insurance quotient and durability. It's popular in abroad and local market.

Product features:

Main platform lifting capacity 4500kg (7700lbs), second jack lifting capacity is 4300kg
Oil cylinder parts made by automatic CNC lathe ensure the excellent finish and

concentricity.

3. Imported Oil Seal, valve and important hydraulic parts oil pipe explosion protective device.

4. Electric leakage protection overload protection
   5. Shot blasting and high temperature baking powder coated surface finish self-lubricated bushings and bearings
6. Mechanical safety, double Hydraulic System pneumatic safety lock release system
7. Stable Hydraulic Balance System
  8.  Optional second-level platform extension and infra-red electronic leveling sensor
  9. Italy technology to design
  10. 24V safely control circuit

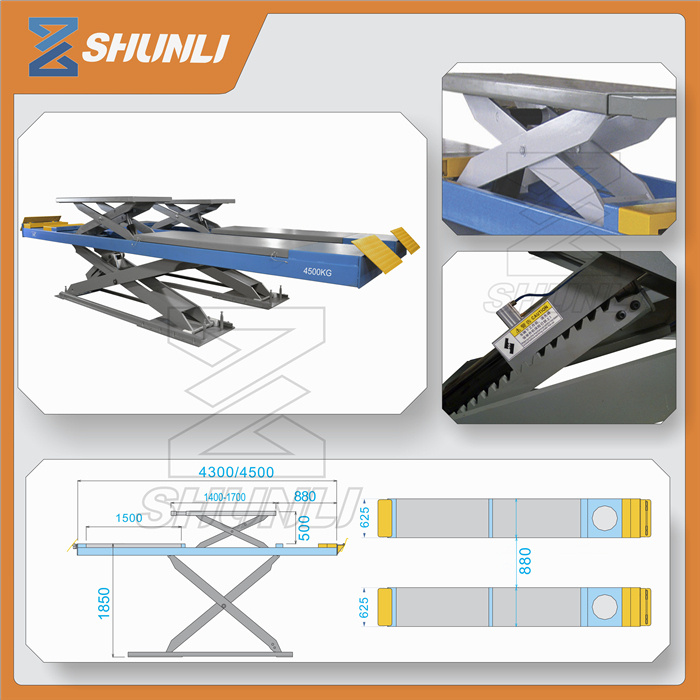

Technical parameter

Model	SHL-Y-J-45DL
Lifting Capacity	4500kg
Host Lifting Height	1850mm
The Host Platform Length	4300-4500mm
The Host Platform Width	610mm
Second Jack Lifting Height	500mm
Second Jack Lifting Length	1400-1700mm
Second Jack Lifting Width	570mm
Motor/ Power	3kw/220V, 380V
Air Pressure	0.4-0.6mpa

Product detail

Certification

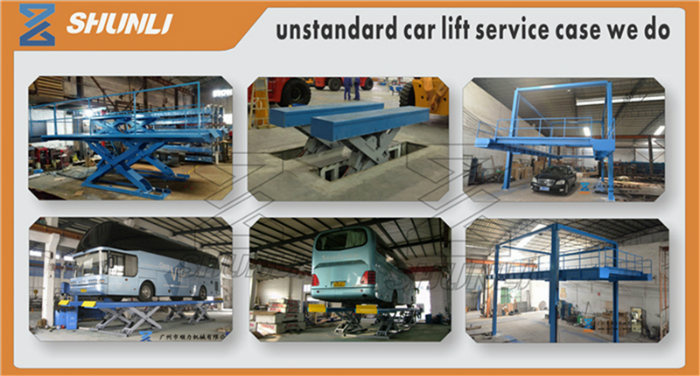

More we can do

With oversea customer

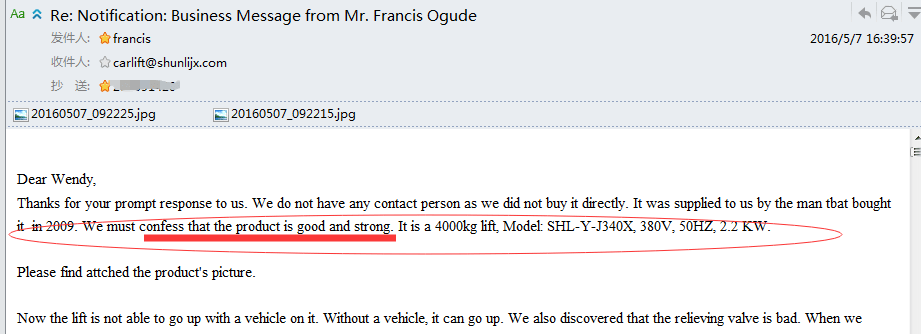

Customer Feedback

Product advantage

1. Easy control the lift table up &down by foot step

2. Solid steel X structure.

3. Without welding, one steel plate insurance machinery lock

4. Almost after-sales problem

5. Pass CE test.

6. Factory directly sales. Good price and good aftersales service.

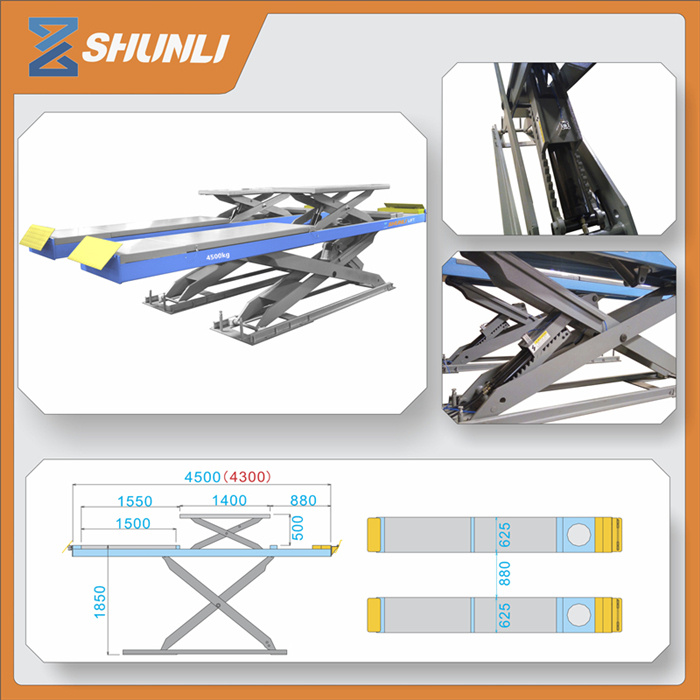

Prod Model:	SHL-Y-J-45DL
Motor:	3kw
Lifting Height (Main Machine):	1850mm
Main Lifting Capacity:	4500kg
Second Lift Max. Height:	500mm
Main Lift Platform Length:	4300mm or 4500mm
Second Lift Platform Length:	1400-1700mm
Main Lift Platform Width:	625mm
Second Lift Platform Width:	570mm
Power:	220V, 380V, 50-60Hz
Air Pressure:	0.4-0.6MPa
Type:	Four Cylinder Hydraulic Lift
Certification:	ISO
Design:	Scissor
Lifting Capacity:	4500kg
Brand:	Shunli

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

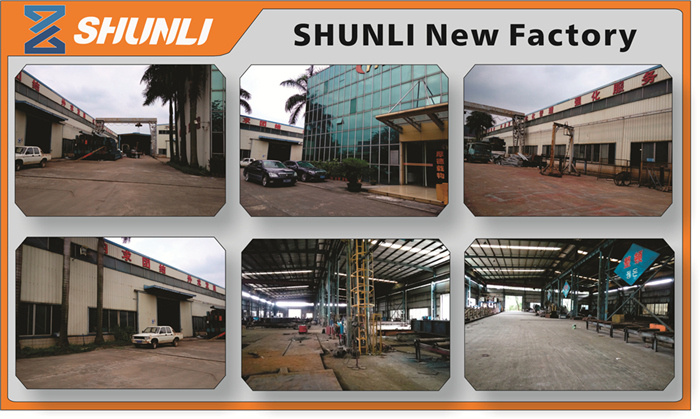

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
