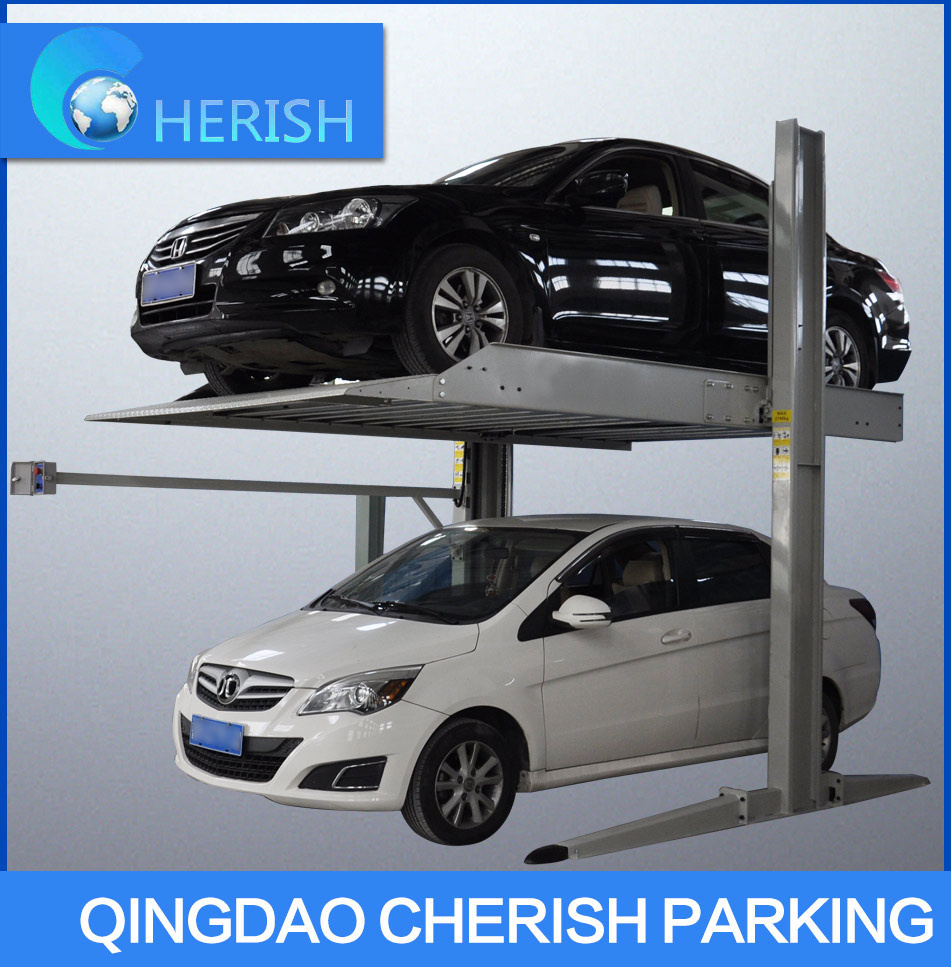

Name: Factory Sale Parking SUV Two Post Parking Lift
Brand: ibuyautoparts.com
SKU: 689607471
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 1600-1850/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHPLA2700
Colour:	Blue and White
Drive Mode:	Hydraulic
Construction:	Two Oil Cylinders+Two Chains
Surface Treatment:	Spraying Plastics or Galvanized
Service Environment:	Indoor or Outdoors
Unlock The Way:	Manual Unlocking or Electric Unlock
Electric Parts:	International Brand
Steel:	Q235A
Electric Control Voltage:	24V Safety Control
Type:	Double Cylinder Hydraulic Lift
Certification:	ISO
Design:	Two Post
Lifting Capacity:	2.7t
Brand:	Cherish

Product Description

Operating Principle:

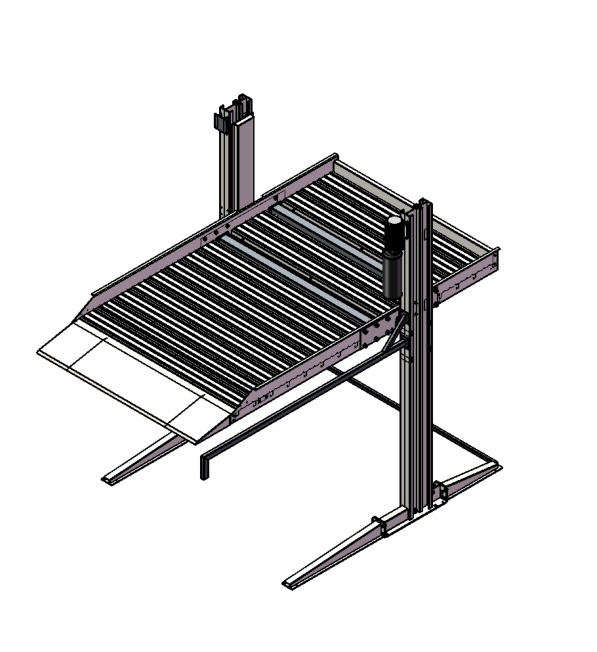

This is two level design parking system, parking space on ground level can park/unparking car directly. when
parking/unparking car on second level, the car on ground level need to be driven out. The park/unpark
process can be seen in below diagrams.
Features:

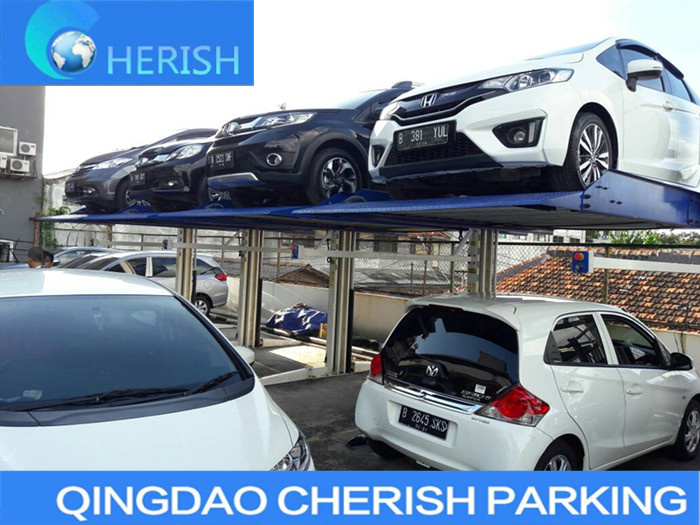

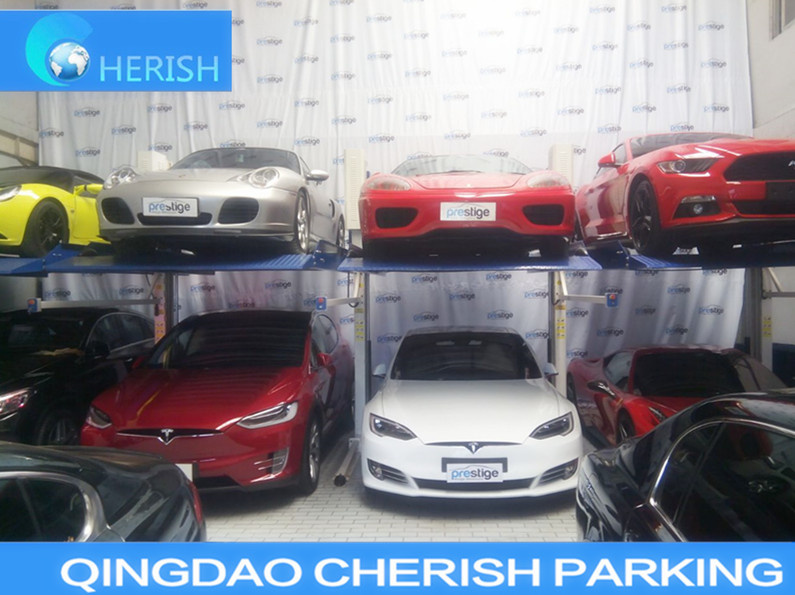

Can be used in household or office building parking lot.
Dual-cylinder lifting system, more stable
Synchronous sliding framework balancing system
Single manual- lock release system , safe and reliable
Mold machining through the whole process so that the parts are universal and interchangeable
Pass 120% capacity dynamic load text and 150% static load test.
solenoid valve has the urgent manual lock release function.
Optional 24v control box, solenoid valve
Product Photos:

Product advantages:
Sharing post design, space saving, economic and more steady.
Wave plate or diamond plate are optional, you can choose hot galvanizing, electroplating or powder spray
Italian oil seal to make sure no oil leakage
Optional manual pump on power unit in case of power off.
Optional ultrared rays alarm device, in case of unguarded entrance

Technical Parameters:

Model No.	Lifting Capacity	Lifting Height	Runway Width	*Outer Dimensions(LWH)*	Rise/Drop time	Power
CHPLA2300	2300kgs/6000lbs	1600/1800mm	2117mm	*420826163109mm*	90S/75S	2.2kw
CHPLA2700	2700kgs/6000lbs	1650/2100mm	2117mm	*420826163539mm*	95S/80S	2.2kw

Production time:
20-30 days after received the prepayment.

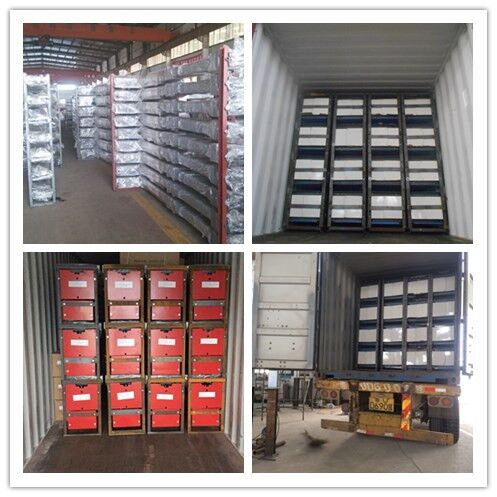

20' container load:10-12 sets; 40' container load: 20-24 sets.

Our website:
http://www.cherishparking.com
http://cherishparking.en.made-in-china.com/

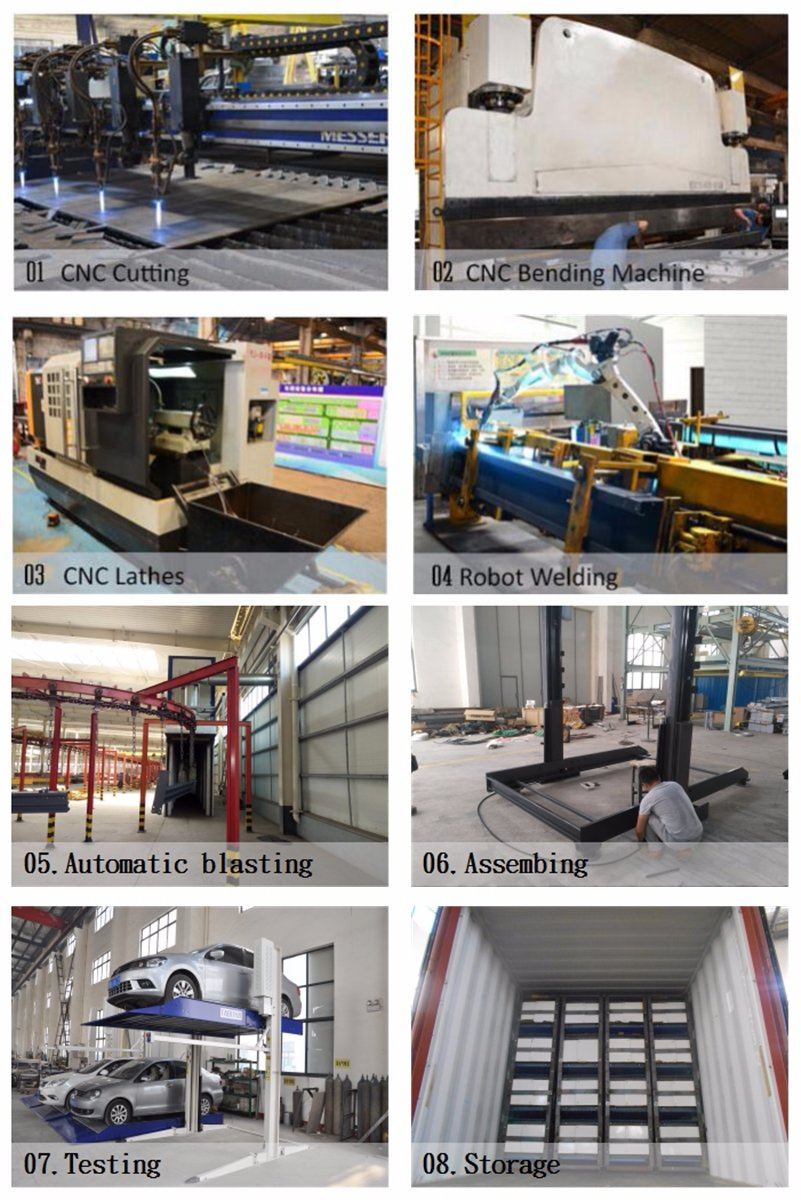

Qingdao Cherish Intelligent Equipment Co. Ltd is specialized in manufacture auto-service equipment and parking equipment, which is a comprehensive company integrates R&D, production, promotion and trading. We mainly manufacture many kinds of 2 post car lifts, 4 post car lifts, scissor lifts, puzzle parking system, easy parking system, car elevator, Turntable, vertical lifting parking system, stacking type parking system, PDX circulation parking system and PCXplane moving type parking system as well.

Cherish has always been committed to manufacturing quality parking equipment so as to set up a good corporate image. Our products can speak for that, and also for the bright future of our company in the coming years. Qingdao Cherish is located in the beautiful city -Qingdao, we would like to make friends with people from all over the world. Hope the pleasure of our encounter will last in your deep memory! Qingdao Cherish warmly welcome you! Come and join us!

Contact person: Mrs XU

TEL: 0086-15092115153

Contact address: No. 9 Jinxiu Road, Huangdao District, Qingdao, Shandong, China
