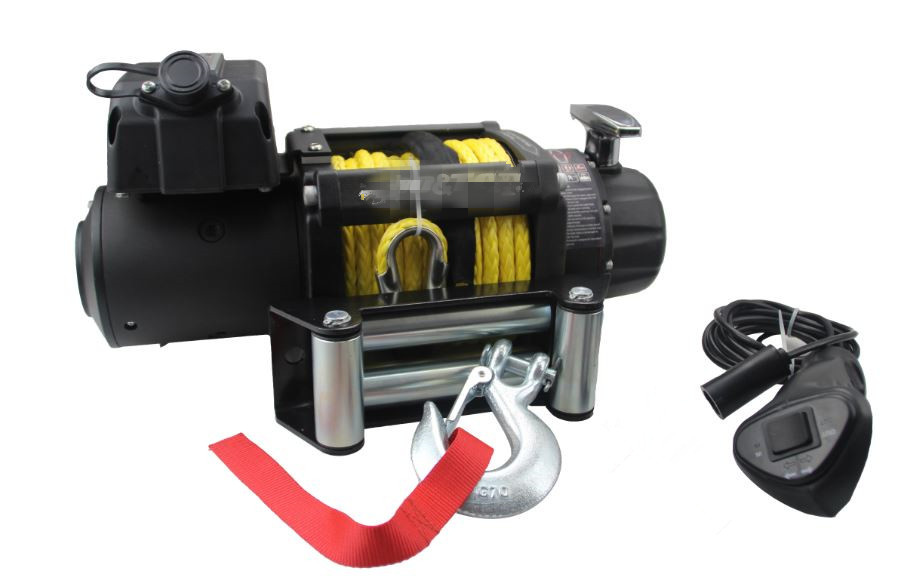

Extreme Performance Electric Winch with 9500 Lb Pulling Fits All Rock Crawler

Name: Extreme Performance Electric Winch with 9500 Lb Pulling Fits All Rock Crawler
Brand: ibuyautoparts.com
SKU: 838677835
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	US $ 162-169/Piece
Min Order:	24/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

This compact 4x4 off road winch designs to "Rock Crawler" , Small size series wound motor with big horsepower , short drum makes winch more portable ,high performance gears ---steel gears make winch more durable and strength . New remote is another attractive point . Quick mobile mount plate(optional) makes winch fix simply and easily . Your logo can be laser etched on front winch bar and clutch handle !

Both steel cables and Synthetic ropes are available .
OEM is available

9500 LBS Features and Specifications :
PN : XM-TE937
Single line rated pull: 9500lbs (4303 kgs)
Motor: 5.4hp/4.0kw series -wound
Braking action: Automatic locking with motor
Clutch: Sliding ring gear
Gear train : 3 -stage planetary
Gear ratio: 216: 1
Switch: Wire remote control with black hand bar and Wireless remote control
Fairlead:             Aluminum hawse or Aluminum hawse
Synthetic rope:        Ф9.5 x 50 ft (Ф9.5 x 15m )
Weight:              60 pound (27kg )
Overall dimension:17.3" x 9.32" x 6.3" (439.4mm x 236.7mm x 160mm)
Mounting bolt pattern: 6.45" x 4.5" (164mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	9500
Line Pull	kg	LOAD	1812	2718	3624	4303
Line speed	ft/min	33.60	20.90	14.33	10.90	8.50
Line speed	m/min	10.24	6.38	4.37	3.28	2.25
Motor current	Amps	72	152	198	256	347

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	9000	6850	5985	4250
Rated line pull per layer	kg	4077	3105	2711	1925
Length of cable on drum	ft	8.2	19.1	37	50
Length of cable on drum	m	2.5	5.8	11.3	15

Prod Model:	XM-TE937
Pulling:	8000 Lb
Warranty:	13 Months
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Electric Winch Model:	Side X Side Rock Crawle
Brand:	Xi Man
Applicable Environment:	Wherever

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
