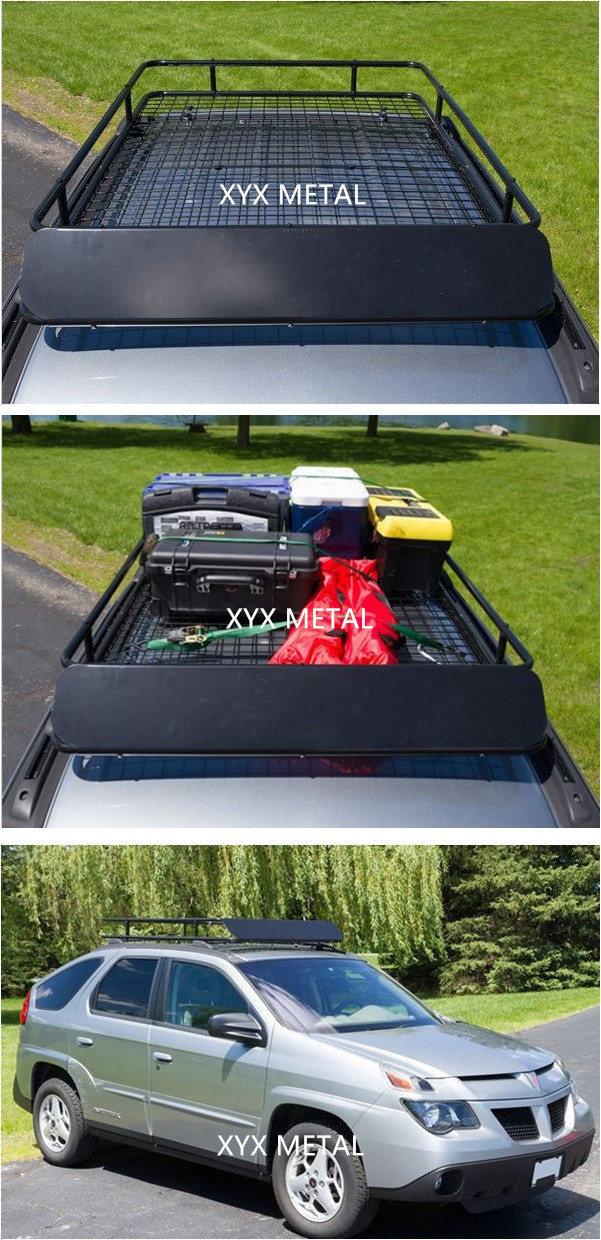

Our 62" by 45" roof luggage rack provides the space you need when you've got a lot to haul! Made from durable steel that has been powder coated for rust protection, this large roof rack carries up to 150 lbs using the existing crossbars on your vehicle. Easy to assemble and install, this roof rack also includes a steel wind fairing to reduce wind noise and resistance.
- Oversized basket (62-1/2" x 45") with 150 lb capacity
- Easily attaches to existing crossbars with no drilling
- Durable black powder coated steel construction
- 6-1/4" high side bars safely keep cargo in place
- Included wind fairing to decrease wind resistance and noise
- Weighs only 47 lbs
The roof luggage rack provides substantial room for carrying extra cargo and gear on top of your vehicle. Easy to assemble and install, this cargo rack attaches to your vehicle's cross bars using U-bolts. It also includes a wind fairing to reduce wind resistance and noise.
Product Features
- Includes steel wind fairing to reduce wind resistance and noise
- Durable black powder coated steel construction
- Attaches to existing cross bars w/ 4 U-bolts (3-1/4" W x 1-3/8" H spacing)
- Tall side rails keep cargo in place
- Sturdy bottom metal bars
- Large size provides ample storage room
- Includes a decal for fairing
- Assembly required
- Easy to assemble and install
- Optional roof bars can add more hauling options
- Mesh Spacing is 1-7/8" x 1-7/8"
The Roof Luggage Rack provides generous cargo space on the roof of your vehicle. It easily attaches to your vehicle's cross bars using four U-bolts. The cargo rack's universal U-bolts can accommodate square cross bars up to 3-1/4" wide x 1-3/8" thick or round bars up to 1-3/8" in diameter. The 6-1/4" tall and 1" diameter side rails and bottom metal bars help keep your cargo in place and provide plenty of tie down points. The roof luggage rack has a durable black powder coated steel construction, and is easy to assemble and install. A steel wind fairing is also included with this cargo basket, decreasing wind resistance and noise while giving it a sleek look. A decal is included to decorate the wind fairing if desired. Optional roof bars may be attached to the top of the basket, allowing you to use roof-mount accessories in addition to the luggage basket.
Warning and Usage Guidelines
- U-Bolt Spacing: 3-1/4"W x 1-3/8"H
- Max. Round Crossbar Mounting Requirements (Diameter): 1-3/8"
- Max. Square Crossbar Mounting Requirements: 3-1/4" wide x 1-3/8" thick

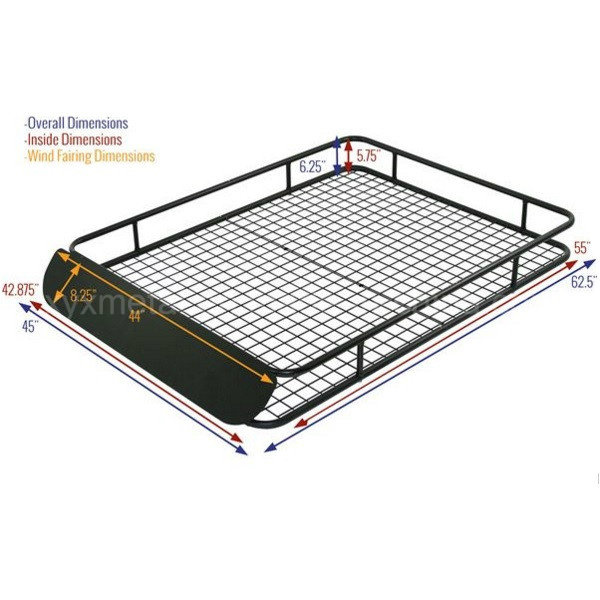

| Model Name | Item No. | Overall Dimensions
(L x W x H) | Inside Dimensions
(L x W x H) | Load capacity
Lbs.(KG) | N.W.
Lbs.(KG) | Packing Size (cm) | Load Qty.
(40'HQ container) |
| Cargo Roof Bracket | R-01 | 48.5" x 38.25" x 5.5"
1232 x 971 x 140 mm | 42.25" x 36.25"x 4.75"
1073 x 921 x 121 mm | 150lbs.
(68 KG) | 34lbs.
(15.5KG) | 100 x 59 x 18 | 520 |
| Cargo Roof Bracket | R-02 | 62.5" x 45" x 6.25"
1588 x 1143 x 159 mm | 55" x 42.75" x 5.75"
1397 x 1086 x 146 mm | 150lbs.
(68 KG) | 47lbs.
(21.4KG) | 115 x 75 x 21 | 352 |
| Cargo Roof Bracket | R-03 | 52.5" x 43.5" x 5.25"
1334 x 1105 x 133 mm | 45.5" x 41" x 3.5"
1156 x 1041 x 89 mm | 150lbs.
(68 KG) | 27lbs.
(12.3KG) | 135 x 112 x 15 | 254 |
