External TPMS for Tire Pressure Monitoring

Name: External TPMS for Tire Pressure Monitoring
Brand: ibuyautoparts.com
SKU: 788352685
Availability: InStock
Rating: 5 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Tire Pressure Monitoring System TP800

Introduction

Tire pressure monitoring system TP800 is designed to monitor the air pressure inside the pneumatic tires on various types of vehicles.The driver can have real-time tire pressure information on the display, which will help to reduce driving riskes, improve fuel economy and prolong lifetime of tires greatly.

1. What are the advantages of TPMS ?

Reduce Driving Risks

Improve Fuel Economy

Prolong lifetime of the tires

2. Features:

Monitor Features:

Reliable and easy to install.
Fixed high/low pressure warnings.
Fixed high temperature warnings.
Visible and audible alerts.
Selectable pressure units: PSI or BAR.
Selectable temperature units: C or F .
Monitors up to 5 tires maximum.
Displays pressure or temperature of 4 tires simultaneously.

Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .

3. Specifications:

Monitor specifications:

Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	diameter:33 mm, height:50 mm
Weight	20 g

External Sensor Specifications:

Pressure range:	0 to 6 bar, 0 to 87psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3ºC
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +80° C
Weight:	11 grams
Size:	diameter:21mm, height:21mm

Benefits

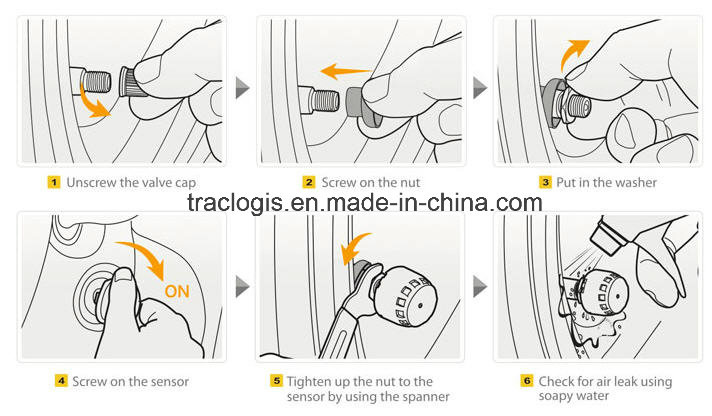

Installation

Prod Model:	TP800
Working Temperature:	-30°c ~ 120°c
Working Frequency:	433.92MHz
Sensor Pressure Range:	0-87psi
Sensor Size:	Diameter:21mm, Height:21 mm
Sensor Battery Life:	2 Years(Replaceable)
