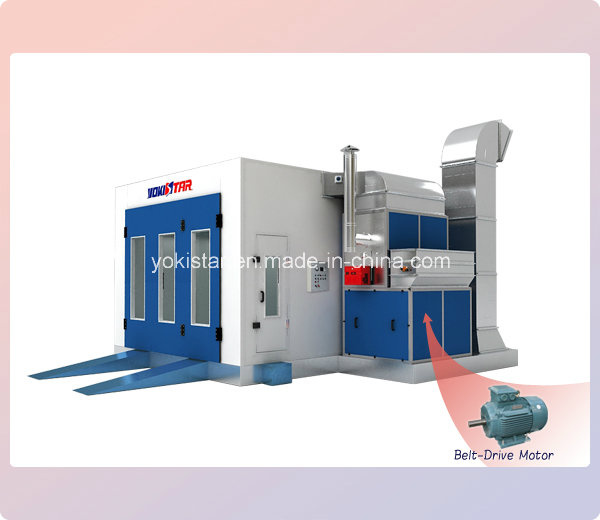

Excellent Quality Automotive Spray Paint Room with Filter

Name: Excellent Quality Automotive Spray Paint Room with Filter
Brand: ibuyautoparts.com
SKU: 754888945
Availability: InStock
Rating: 5 (68 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model:Yubase-B
Inside dimention:6900*3900*2650mm (L*W*H)
Outside dimention:7000*5350*3400mm (L*W*H)
Any Size Requirements Can Be Met
with Better Ventilation and Strong Power

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Specification of Automotive Spray Booth Yubase-B

Basement
Floor Arrangement
	2 rows of grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment,
	loading weight is 600KG/wheel, equipped with floor filter supporting frame.
	3 rows of indented plate with surface painted treatment.
	2 ramps, each size is 520x2,000mm(WxL).
Covered Plate
	made of bended galvanised steel, 300mm high.
Supporting Frame
	made of galvanised square steel tube with 40x80mm(WxL) size.
Floor Filter
	Fiber glass filter laid on the filter fram,G3 Grade(EN779), type is PA-50, filtering area: 10.35M2

Cabin
Inside Size
	6,900x3,900x2,650mm(LxWxH).
Outside Size
	7,000x5,350x3,400mm(LxWxH).
Entrance door
	3-leaf,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass
	embedded into square frame made of color steel.
Personnel Door
	1 unit, size is 700x2,000mm(WxH),with tempered glass embedded into square frame made of
	color steel.
Wall Panel
	50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside
	and outside.Tongue and groove interlock strucutre,two sides covered by steel.
Roof Panel
	Made of 0.6mm thick bended galvanised plate.
Ceiling Light
	Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with
	4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum
	450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white
	powder for long using life.
Ceiling Filter
	Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter,
	F5 Grade(EN779),type is SP-600G.

Makeup Air Units
Frame Size
	1,700x1,250x2,200mm(LxWxH)
Cabinet Frame
	Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
Motor and Fan
	Motor:belt drive,belt pulley with European style taper sleeve; qty.:2pcs;
	Single motor power:3KW, total power:6KW;
	Fan type: double intake centrifual fans, TAE-355-H, total air capacity: 21,000m3/h
Makeup Air Control
	by Belimo NMU230 10N actuator to control fresh air quantity.
Pneumatic Actuator
	To control the air valve be opened or closed while the working status is spraying or baking.
Heat Exchanger
	200KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle
	radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M
	long bended galvanisedsteel chimney and 1 pc of rain shield.
Burner
	Riello G20 diesel burner, heating productivity is 200,000Kcal/H.
Filtering
	Pre-filter, G3 Grade(EN779),type is C16-300 ;
	Fibre glass filter, G3 Grade(EN779),type is PA-50 .

Exhaust Air Units
	without the unit made of motor and fan. The wasted air exhausted by positive pressure.
	Equppped with 4M straight duct, 1pc 90° elbow duct and 1pc 30 elbow° duct.

Control System
	Temperature Controller,Hours,Baking Timer,Pressure Gauge,Power Indicator,Spray Indicator,
	Bake Indicator,Failure Indicator,Spray Switch,Bake Switch,Left Light Switch,Right Light Switch,
	Emergency Stop,Start Switch.

Prod Model:	Yubase-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ventilation:	Full Downdraft Airflow Way
Air Intake:	2*3kw Belt-Drive Type Motor Centrifugal Fan
Heating:	1 Unit Riello G20 Diesel Burner
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Optional Colour:	White, Blue, Orange and Red
Port:	Huangpu Port or by Your Order
Main Product:	Spray Booth, Prep Station, Infrared Curing System
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spray Booth
Substrate:	Steel & Aluminum
Brand:	Yokistar
Coating:	Painting & Powder Coating
Airflow Direction:	Full Downdraft Airflow Way
