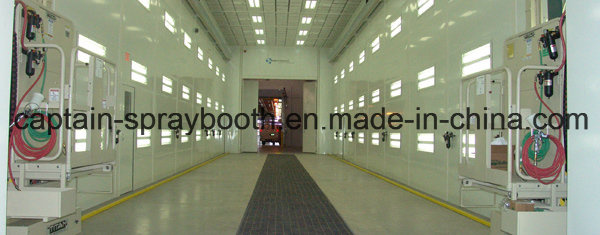

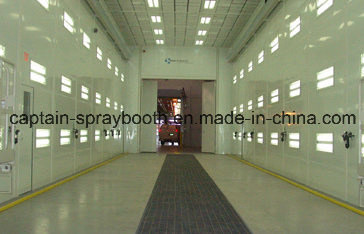

Excellent and High Quality Infrared Heating Long Bus Spray Booth
| Price: |
US $ 10600-29000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| CPDE157501 |
| Outside Size(mm): | 15150×6500×5500mm(LxWxH) |
| Inside Size(mm): | 15000×5000×5000mm(LxWxH) |

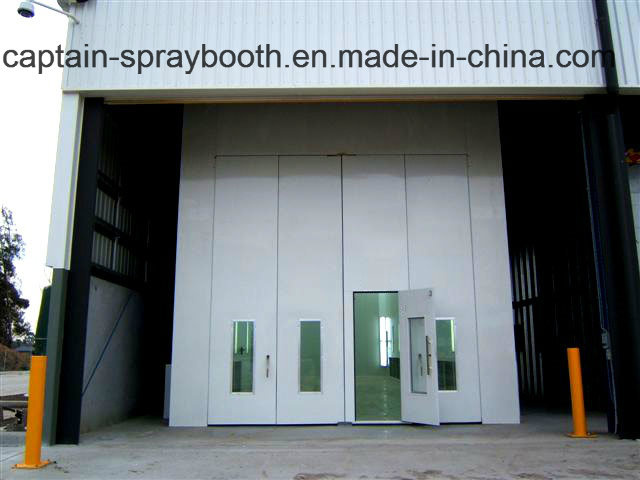

| Front Door(mm): | 4000×4000mm(WxH), 1 Unit, galvanized steel cover frame, with polystyrene(EPS) inside. |
| Service Door(mm): | 650×2000mm(W×H),2 Units, There are two sets of pressure lock which will automatically open when the pressure inside is over the limit. |
| Total Power: | 118KW |
| Cabin System | Wallboard | Double construction with insulations EPS, thickness 75mm, 0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside. |
| Basement | Need to build the base construction, 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above. |
| Inlet Fan(Belt) | Capacity: 22500m³/h each | Outlet Fan(Belt) | Capacity: 22500m³/h each |
| Power: 7.5kw | Power: 7.5kw |
| Quantity: 4 sets | Quantity: 2 sets |
| Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. |
| Heating System | With 30 units high energy short wave infra-red lamps for heating. 2 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:60KW |
|
| max temp: 80 degree centigrade, heating time:4-6 min(from 20 to 60)by Drying Phase |

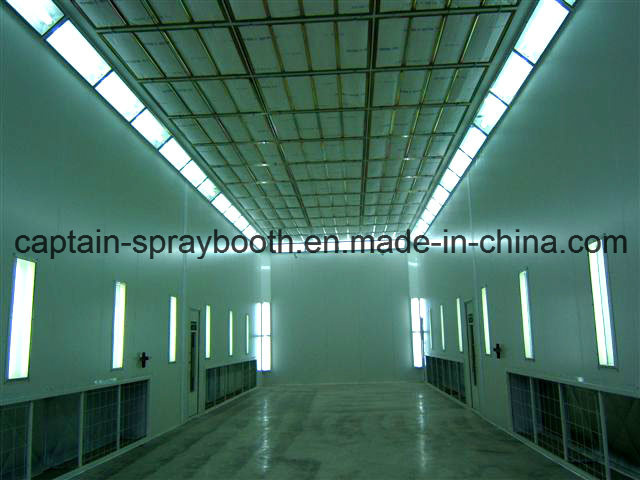

| Lighting System | Ceiling Light: 18Units, each 4×36 W, with electronic ballasts; Side Light: 22Units, each 2×36W, with electronic ballasts |
| Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller. |
| Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. |
| Prod Model: |
CPDE15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Size(mm): |
15150X6500X5500mm(Lxwxh) |
| Inside Size(mm): |
15000X5000X5000mm(Lxwxh) |
| Front Door(mm): |
4000X4000mm(Wxh), 1 Unit |
| Service Door(mm): |
650X2000 mm(Wxh),2 Units |
| Wallboard: |
75mm EPS Panel, 0.5mm Steel |
| Basement: |
2 Rows of Pits,with Galvanized Grids |
| Inlet Fan(Belt): |
4X7.5kw |
| Outlet Fan(Belt): |
2X7.5kw |
| Heating System: |
2X30units Short Wave Infra-Red Lamps |
| Lighting System: |
4X18units Ceiling, 2X22 Units Side |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Electric |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
