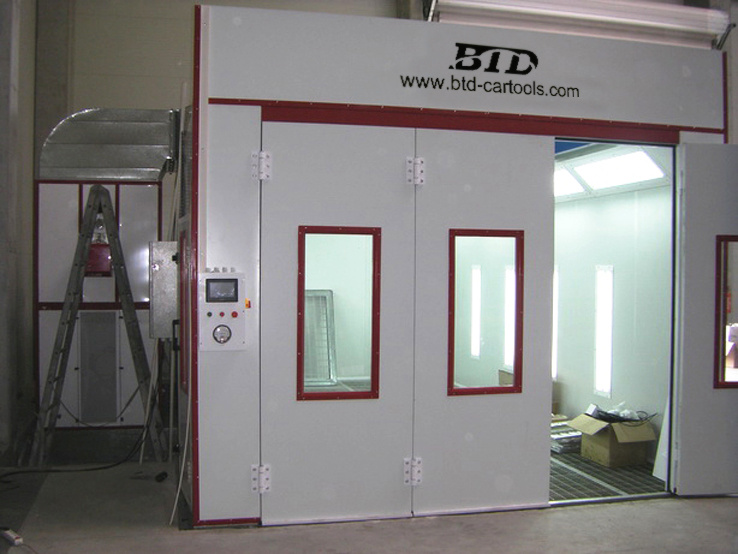

European Standard Car Spray Booth with CE
1. CE approved
2. German Technology
3. Spray booth professional manufacturer
4. Factory price, energy saving
5. High quality, best sell service, timely delivery
6. We can meet at customer's special requirement
Model: BTD 9900
| Outside size: | 7010 x 5570 x 3810 mm (L x W x H) | Inside size: | 6900 x 4000 x 2800 mm (L x W x H) |
| Foundation and floor | Foundation | Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
| Surface area of foundation | 27 M²(full galvanized grids) |
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth. |
| Drive-in ramps | 3 big drive-in ramps, each size: 2000x1030mm, diamond plate structure. |
| Wall and door | Wallboard and roof panel | High quality double construction fireproof insulation rock wool panel, thickness: 50mm |
| 3-folded entrance door with safety glass window | 1set,size: 3200x2700 mm(B x H), size is bigger than traditional spray booth. |
| Operator's door with safety glass window | 800x2000mm(B x H)the top of service door installs door closer to close the door automatically |
| Lighting | Ceiling lighting | 8units,each 4 x 36 W,total 1152w , adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Side lighting | 8units,each 2 x 36 W,total 576w, adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Brightness | ≥1000 LUX |
| Filtration system | Pre-filters | EU3 grade pocket filter system, filtration effect is much better |
| Ceiling filter | EU5 grade high efficient filter |
| Bottom filter and exhaust filter | Fibreglass paint-stop filter |
| Ventilation system | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan, 7.5KW,380V,50HZ |
| Outlet fan(Direct drive motor) | Adopt big impeller turbo fan, 5.5KW,380V,50HZ |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Total fan capacity | 25.000m³/h |
| Air flow speed in cabin | 0.23m/s in empty booth,0.25-0.35m/s in loaded booth |
| Heating system | Heating exchanger material | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
| Heating exchanger capacity | 200KW(260.000Kcal/H) |
| Burner model | Adopt Italy RIELLO two-ranges diesel burner RG5D(260.000kcal/H),quicker heating and much better effect, more rest assure for quality |
| Heating time | 3-5 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C |
| Control board | Control system | Standard Y/Δ step-down start control system |
| PLC controller | Yes, PLC control, more reliable and lower breakdown rate |
| Human-computer interface touching screen control | Yes, touching screen control, easier to operate |
| Pressure testing | The pressure gauge indicate the pressure inside cabin |
