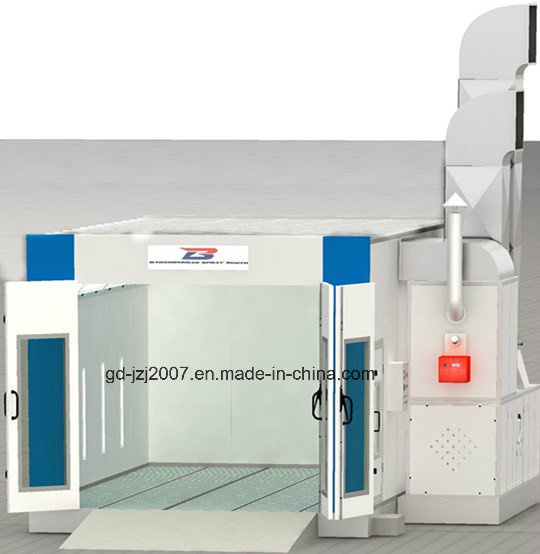

European Standard Auto Spray Paint Booth for Sale
| Price: |
US $ 8820-11350/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
BZB-8000EU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

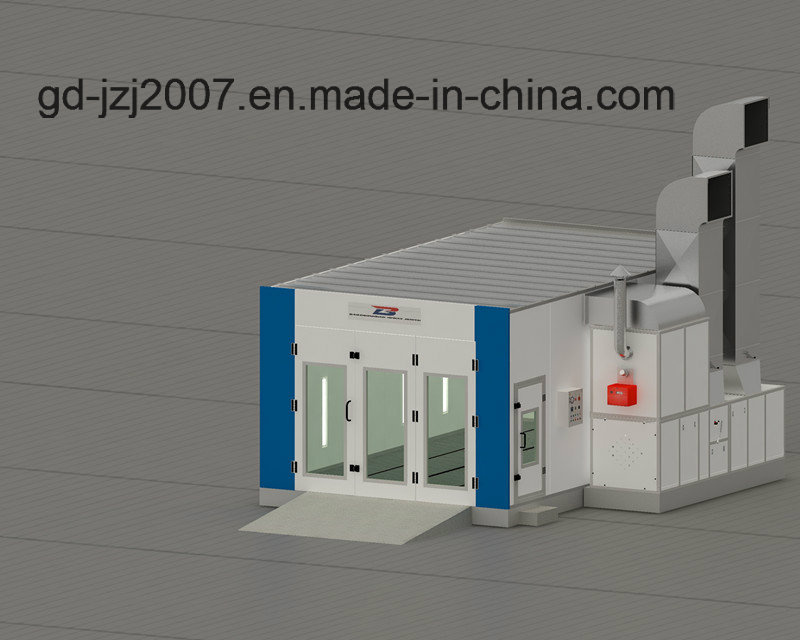

BZB-EU Spray Booth 6.9m*4m*2.65m
Specification:Inside Size(mm): 6900*4000*2650
Outside Size(mm): 7000*5360*3480
Front Door(mm): 3000(W)*2600(H)
Total Power(kw): 19kwCabin System1) Wall panel: Main door is EPS panel, other is rock wool 0.6mm steel skin panel, 50mm thick, tongue & groove style,
2) roof panel is galvanized steel plate,compound construction,
3) the room body's frame is powder coating steel plate,anti-flame and heat-insulation.
4) All the window are rectangular and aluminum alloy frame.
5) Roof panel: galvanized steel.
6)Basement: Galvanized steel sheet and square steel pipe assembling, Full grid, Three Ramps made of embossed plate, 2000(L)*900(W)mm.
7) Front Door: 3 folded glass door.main door's frame is aluminum alloy,
8) Glass: Main door and emergency door glasses are toughened glass. Air Circulation System1) Inlet Fan Model: Siemens motor,Single inlet swirl fan; 7.5kw, Capacity: 25000m3/h, 1 set.
2) Outlet Fan Model: Siemens motor,Single inlet swirl fan; 7.5kw, Capacity: 25000m3/h, 1 set.
3) Load Air Speed: 0.35m/s; Air recycling times: 320 times/h. All motors are Siemens motor.
4) The circulation system covers 1 set of pneumatic damper and 2 sets of manual dampers, Manual adjustment valves are placed in intake air and exhaust air duct to control airflow volume and adjust pressure.the pneumatic damper controls circulation inside and outside of booth.
Air Purification systemDual filtering structure, the primary filter can capture granules larger than 10μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP ≤1.4mg/m3.
Heating SystemItaly Riello G20 diesel burner, heating capacity 180000Kcal/h, pneumatic damper, cylinder conversion can automatically achieve from spraying to baking cycle.
SUS304 stainless steel 2mm thick heat exchanger, argon arc welding, matching 150mm explosion-proof vent.
Max temp: 80ºC, heating time: 6-8min(20-60ºC), fuel consumption: 6-8kg/vehicle.
Lighting SystemCeiling Light: 8sets*4pcs=32pcs 36w Philips Lamp; bottom light: 16 pc 36w Philips lamp, 1000 Lux. Ballasts Professional and durable, light glasses are toughened glass, with high temperature wire.

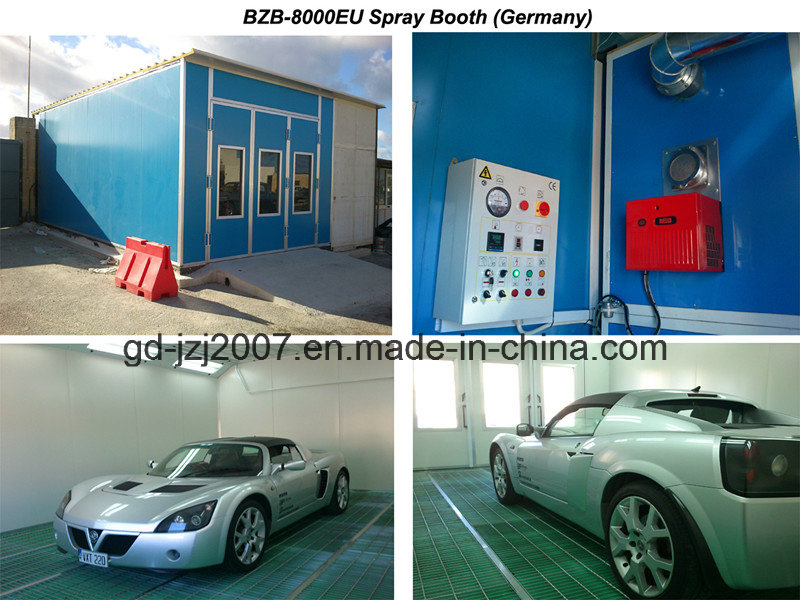

Controlling SystemMicro-Computer Programme Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm.(All electrical are suitable for CE Standard.) Environmental SystemMulti-layers fiberglass filter and active carbon. BZB-8000EU After Installation Photo:

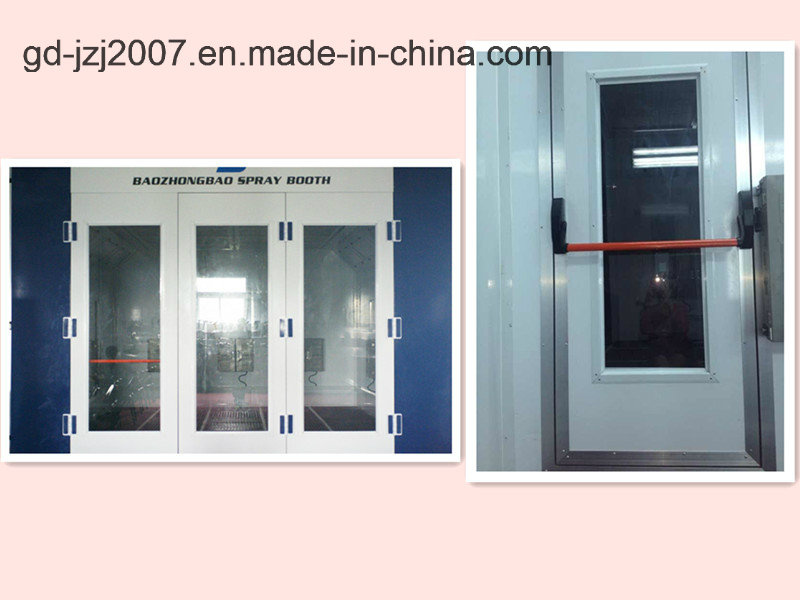

Spare parts: a) Steel metal front door( with tempered glass view indows)
New style aluminum hinge
New door plugRock wool panel
Heating exchanger ( SUS304 galvanized steel) d)Pneumatic Damper
F)direct motor fan G)control system
