| Prod Model: |
custom design |
| Management Certification: |
ISO9001: 2000 |
| Technology: |
German Technology |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Usage: |
Bus and Truck Spraying and Baking |
| Color: |
White |
| PLC: |
Yes |
| Heating Type: |
Diesel/Gas Burner |
| Overpressure Manometer: |
Yes |
| Alarm Equipment: |
Yes |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description

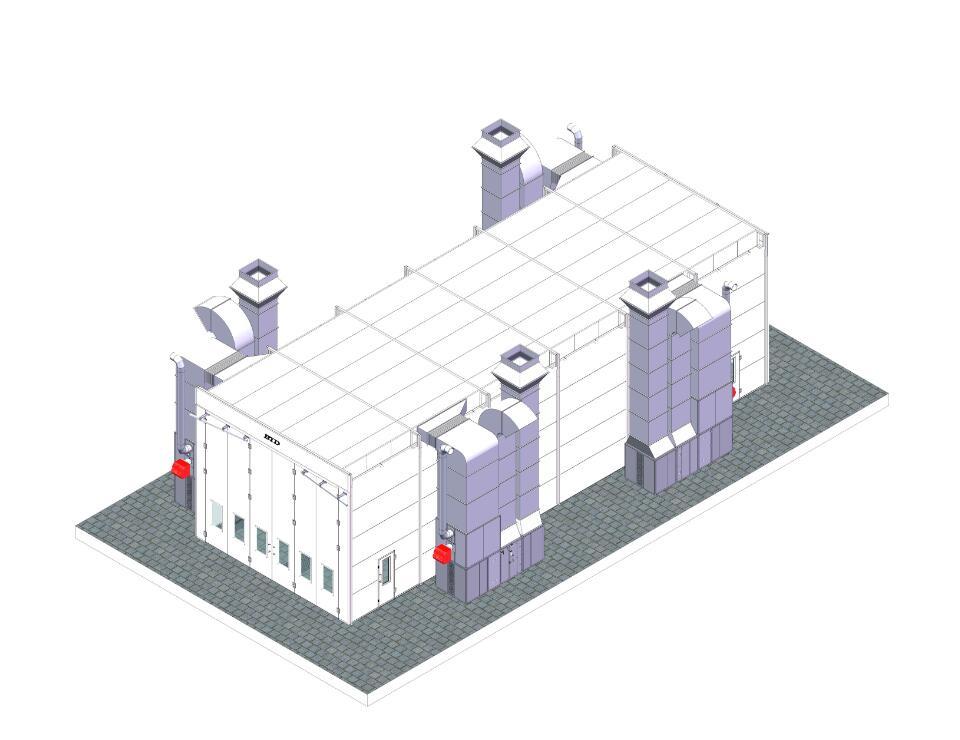

European Design BTD Industrial Painting Booth
1. CE approved
2. German Technology
3. Suitable for painting bus and truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service
7. We can meet at customer's special requirement
| Product:custom design spray booth(20×7.2×5.5M) |
| Design standard | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Internal size | 20000×7200×5500mm (L×W×H ) |
| External size | 20120×10670×6500mm(L×W×H ) |
| Basement | |
| Basement design type | Dig pit type, three rows floor grids, load capacity is 650KG/wheel |
| Filter area | 43 |
| Cabin | |
| Cabin structure | Wall panel horizontal insert |
| Plenum chamber height | 1000mm |
| Wall panel | |
| Wall panel | 60mm EPS panel |
| Roof panel | 50mm EPS panel |
| Material of wrap edge | 1.5mm galvanized steel plat bend forming |
| Entrance door | (with anti-falling device) |
| Type of entrance door | Hand made entrance door,3+3 structure |
| Size of entrance door | 6400×5400 mm (W×H) |
| Arrangement and QTY of entrance door | 1 set |
| Description of entrance door | With frame inside, fill with EPS |
| Service door | |
| Type of service door | Frame structure |
| Size of service door | 800×2000 mm (W×H) |
| QTY of service door | 2 sets |
| Description of service door | With safe glass observation window |
| Ceiling lighting | |
| QTY and power | 26 units, each 4×36W, total 3744W |
| Lighting arrangement type | On two sides |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand light |
| Side lighting | |
| QTY and power | 20 units, each 2×36W, total 1440W |
| Lighting arrangement type | On two sides |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand light |
| Total illumination | >800Lux |
| Filtration system | |
| Pre filter | G3 Grade pocket type filter |
| Ceiling filter | F5 Grade filter, model is SP-600G |
| Floor filter | Fiber glass paint-stop filter |
| Exhaust filter | Fiber glass paint-stop filter |
| Inlet system | |
| Inlet fan type | Direct drive turbo fan |
| Inlet fan power and motor description | 4X11KW,970 rpm, 380V, 50 Hz |
| Inlet fan parameter | 35000m3/h 650pa |
| Total air volume | 140000m3/h |
| Exhaust system | |
| Exhaust fan type | Direct drive turbo fan |
| Exhaust fan power and motor description | 4X11KW,970 rpm, 380V, 50 Hz |
| Exhaust fan parameter | 35000m3/h 650pa |
| Total air volume | 140000m3/h |
| Equipment empty loaded air speed | +/- 0.24m/ when empty loaded |
| Noise | <78 dB |
| Heating system | |
| Materials of heat exchanger | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Power of heat exchanger | 232KW |
| △T temperature increase ability | 20 ºС(from-10 ºСto 10 ºСunder painting status) |
| Max working temperature | 80 ºС |
| Heating time | 4-6 minutes (from 20 ºСto 60 ºС) baking status |
| Burner model | RS5 (customer provide the front part pressure decrease valve unit) |
| Ducting configuration | |
| Straight duct | 36 pieces |
| 90 degree | 4 pieces |
| 45 degree | 4 pieces |
| Reducing | 8 pieces |
| Anti rain hat | 4 pieces |
| Control system | |
| Performance standard | Standard Y/Δ step down start control system |
| Distribution facilities | CE standard connection cables, junction box, wire tubes and accessories |
| Pressure testing | With pressure gauge to show pressure inside cabin |
| Function | Painting, leveling, baking, emergency stop switch, failure indication, over-temperature alarm indication |
| Special item | |
| |
| 3D painting platform | (2 sets) |
| Design height | 3800mm above floor |
| Travel distance | 18000mm |
| Travel speed | 8m/min |
| Working platform size | 800X800mm |
| Platform lifting height | 550~3800mm |
| Retractable speed | 3m/min |
| Platform load capacity | 300KG |
| 3D platform design total power | 3KW |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
