| Prod Model: |
custom design |
| Internal Size: |
7000X4000X2800mm |
| Motors: |
Germany Siemens Brand |
| Voltage: |
220V50Hz1pH for Lights,380V50Hz3pH for Motors(Opti |
| No Load Speed: |
0.3m/S |
| Power: |
25kw |
| Control System: |
Human-Computer Interface Touching Screen Control |
| Energy-Saving System: |
Model E-32000 |
| Inverters: |
Finland Vacon Brand |
| Color: |
White and Red |
| Warranty Time: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology guarantee quality, BTD brand spray booth is getting more and more popular all over the world. BTD enjoy reputation in Europe and hold the most market share for high-end Spray Paint Booth.

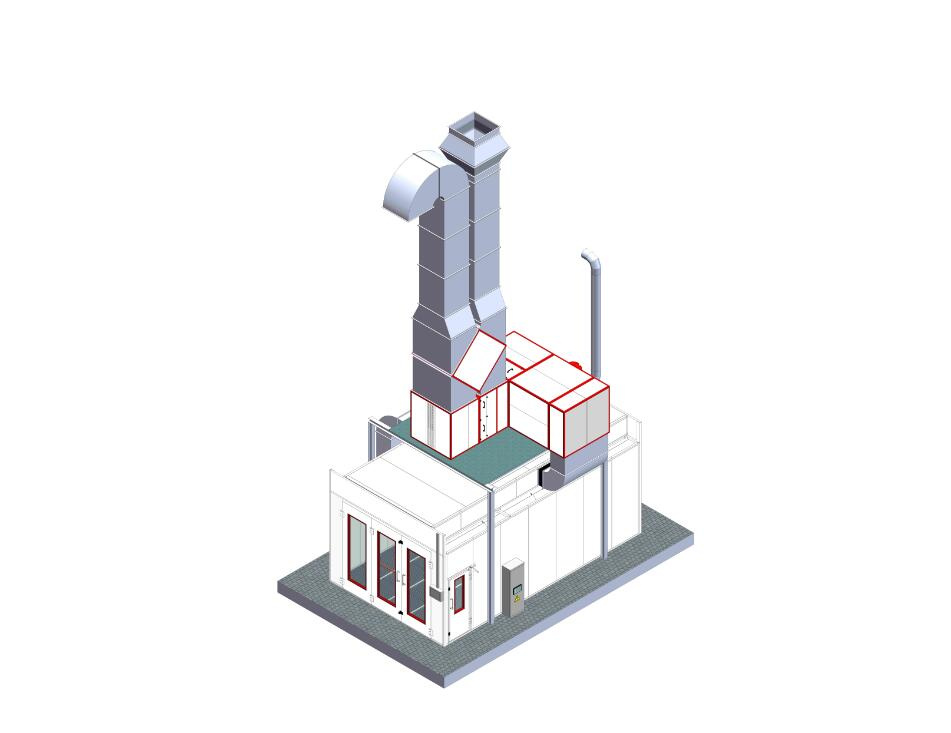

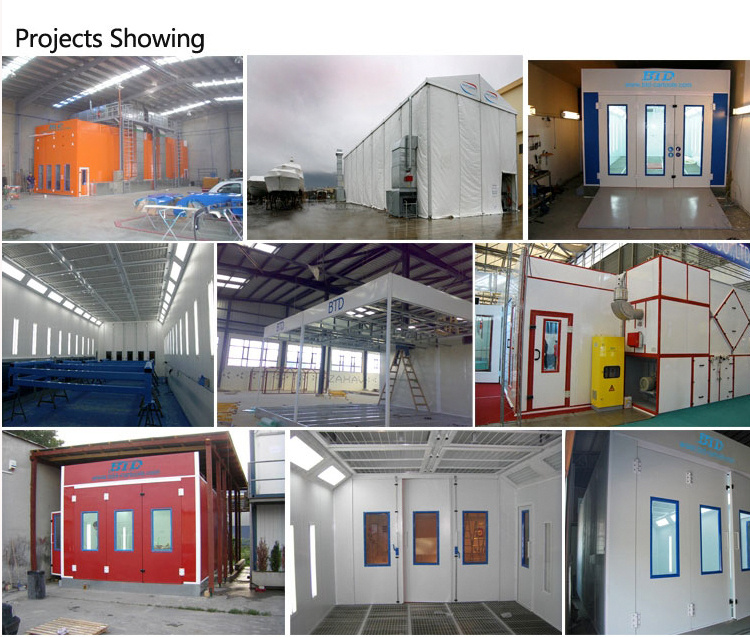

European Design BTD Auto Spray Booth| Product:Custom design spray booth(7×4×2.5M) |
| Design standard | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Internal size | 7000×4000×2500mm( L×W×H) |
| External size | 7110×4110×3160mm(L×W×H) |
| Basement | |
| Air return design type | Two sides air collection box for air return |
| Filtration area | 2.8m2 |
| Cabin | |
| Cabin structure | Wall panel vertical insert |
| Plenum chamber height | 600mm |
| Wall panel | 50mm EPS panel |
| Roof panel | 50mm EPS panel |
| Material of wrap edge | 1.2mm galvanized steel plate bend forming |
| Entrance door | |
| Type of entrance door | Hand made entrance door,2+1 structure |
| Size of entrance door | 3200×2400 mm (W×H) |
| Arrangement and QTY of entrance door | 2 sets |
| Description of entrance door | With frame inside, fill with high temperature resistance EPS |
| Service door | |
| Type of service door | Frame structure service door |
| Size of service door | 800×2000 mm (W×H) |
| QTY of service door | 1 set |
| Description of service door | With safe glass observation window |
| Ceiling lighting | |
| QTY and power | 8 units, each 4×36W, total 1152W |
| Lighting arrangement type | On two sides |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand light |
| Total illumination | >850Lux |
| Filtration system | |
| Pre filter | G2 Grade plate type filter |
| Ceiling filter | F5 Grade filter,model is SP-600G |
| Bottom paint mist collection | Fiber glass paint-stop filter |
| Exhaust filter | Fiber glass paint-stop filter |
| Inlet system | |
| Inlet fan type | Direct drive turbo fan |
| Inlet fan power and motor description | 5.5KW,970 rpm, 230 V, 50 Hz, |
| Inlet fan parameter | 18000m3/h ,600pa |
| Exhaust system | |
| Exhaust fan type | Direct drive turbo fan |
| Exhaust fan power and motor description | 5.5KW,970 rpm, 230 V, 50 Hz, |
| Exhaust fan parameter | 18000m3/h ,600pa |
| Equipment empty loaded air speed | +/- 0.5m/when empty loaded |
| Noise | <78dB |
| Heating system | |
| Materials of heat exchanger | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Power of heat exchanger | 200KW |
| △T temperature increase ability | 20°C(from-10°C to 10°C under painting status) |
| Max working temperature | 80°C |
| Heating time | 10-1 5minutes (from 20° to 60ºС) under baking status |
| Burner model | RG5D |
| Ducting configuration | |
| Straight duct | 8 pieces |
| 90 degree | 1 piece |
| 45 degree | 1 piece |
| Anti rain hat | 1 piece |
| Reducing | 2 pieces |
| Control system | |
| Performance standard | Inverter control system |
| PLC | Yes,PLC control,higher reliability and lower failure rate |
| Inverter control | Inverter control, more energy saving and more economic |
| Function | Painting, warm painting, baking, levelling, emergency stop switch, inverter, failure indication, over-temperature indication, baking stop delay protection |
| Special item | |
