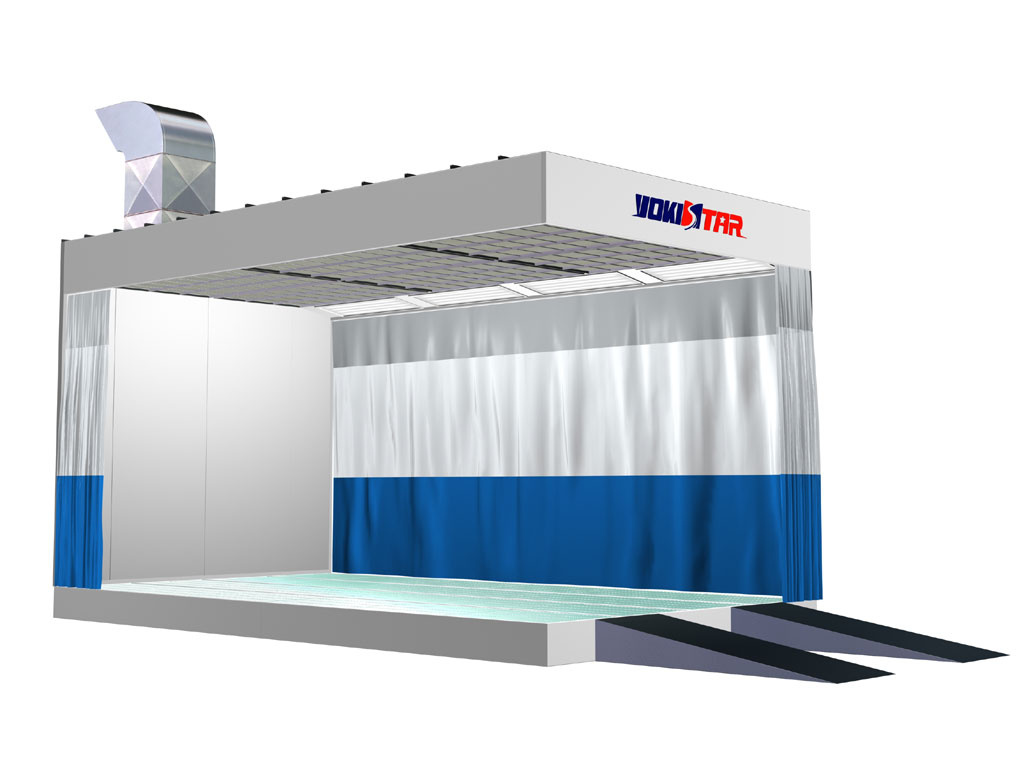

EPS Insulated Industrial Preparation Station

EPS Insulated Industrial Preparation Station
Price: US $ 5350-6960/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: YS-300-B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ventilation: Full Downdraft Airflow Way
Air Exhaust: 5.5kw Double Intake Centrifugal Fan
Voltage: 1X220V,3X380V,Your Special Voltages Are Accepted
Optional Colour: White, Blue, Orange and Red
Main Product: Spray Booth, Prep Station, Infrared Curing System

Product Description

Model:YS-300-B
Inside dimention:6300*3450*2700mm L*W*H
Any Size Requirements Can Be Met.
with plenum and exhaust air system


A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts
D. Optional heat units are available for high production needs.


Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.



Outside Dimension7550×3550×3100mm(L×W×H)
Inside Dimension6300×3450×2700mm(L×W×H)
     Plenum Dimension6300×3450×400mm(L×W×H)
Basement300mm galvanized steel basement, full grilles made by flat bar and round steel then galvanized. 2 ramps, external setting, 2000×750mm(L×W), surface is painted.
Room BodyBack side with 50mm EPS wall panels, the other 3 sides with PVC curtains;
LightingCeiling lights 8units×4pcs=32pcs 36W, with electronic ballasts ,5.0mm clear tempered glass
   Generator SettingExhaust air from rear side; galvanized steel molding frame , white coated steel cover.
       Intake and Exhaust Air System5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m 3 /h, electric damper for exhaust air.
Filtering SystemPre-filter, high efficiency filter, exhaust fiberglass filter
  Roof PlateGalvanized steel plates
Control SystemFan operation switch, lighting switch, emergency stop;
Setting StyleSuspending steel hook from roof of building or steel column supporting;
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
