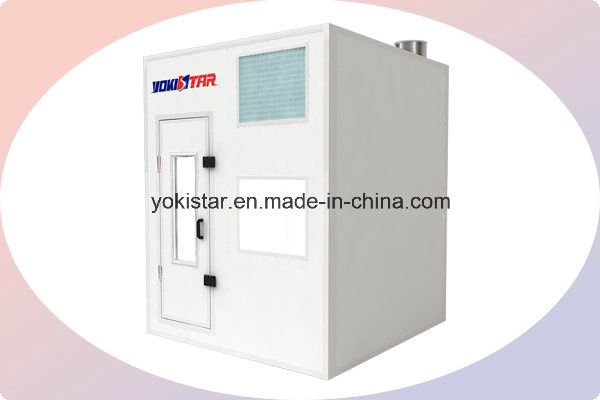

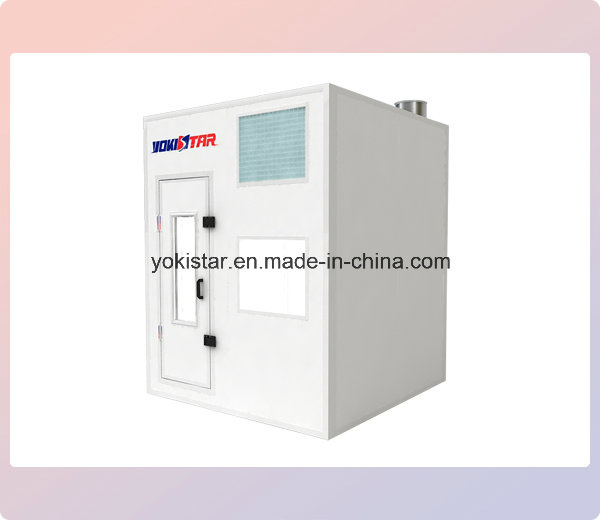

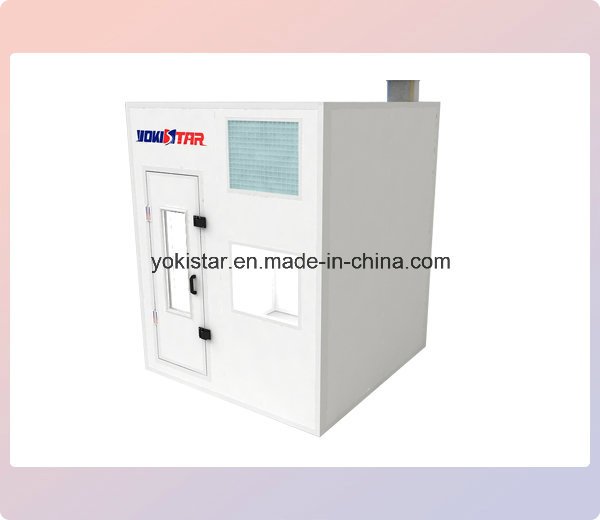

Environmental Friendly Spray Paint Mixing Room
| Price: |
US $ 2100-3150/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YS-MR1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ventilation: |
Cross Flow Way |
| Air Exhaust: |
Axial Fan |
| Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
| Optional Colour: |
White, Blue, Orange and Red |
| Port: |
Huangpu Port or by Your Order |
| Certification: |
CE |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
Steel & Aluminum |
| Brand: |
Yokistar |
| Coating: |
Painting & Powder Coating |
| Airflow Direction: |
Downdraft Airflow Way |
| Heating Mode: |
No Heaters |
Product Description
Product Details*Model: YS-MR1
*Inside dimention:2,030x1,930x2,500mm-5,530x2,430x2,500mm L*W*H
*Any Size Requirements Can Be Met
*Environmental friendly

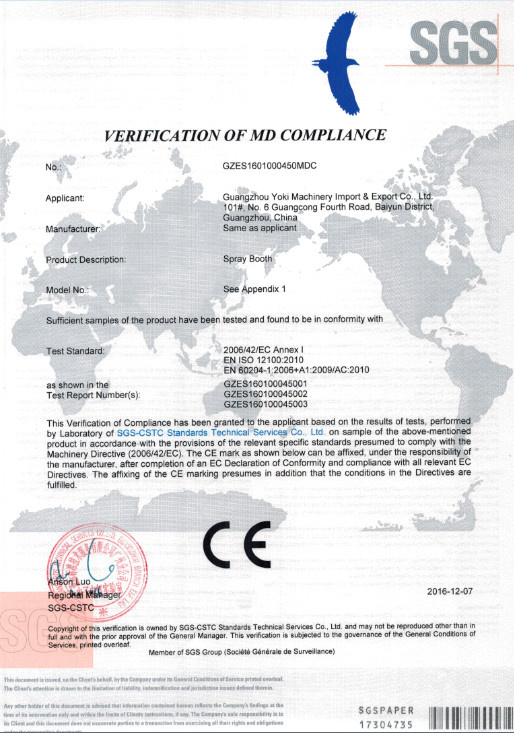

*CE certificate approval
Painting Mixing Room AdvantagesA. Paint mixing room provides a controlled area to safely mix paints.
B. Paint mixing room contained an automatic fire extinguishing system.
C. Paint mixing rooms are available in a range of sizes and specifications; Nonstandard sizes can be manufactured to suit a specific area.Painting Mixing Room Conveying And StoragAs mixing rooms are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.
The finished parts of mixing rooms are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.WarrantyThe goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
| Model | YS-MR1 | YS-MR2 | YS-MR3 | YS-MR4 |
| Inside Dimension | 2,030x1,930x2,500
mm(LxWxH) | 3,030x1,930x2,500
mm(LxWxH) | 4,530x2,430x2,500
mm(LxWxH) | 5,530x2,430x2,500
mm(LxWxH) |
| Outside Dimension | 2,130x2,030x2,550
mm(LxWxH) | 3,130x2,030x2,550
mm(LxWxH) | 4,630x2,530x2,550
mm(LxWxH). | 5,630x2,530x2,550
mm(LxWxH) |
| Escape Door | 1 unit, 800x2,000mm(WxH) |
| Room Body | Wall panels and roof panels are double skinned, tongue and groove structure, thickness: 50mm, made by 0.326mm color steel with polystyrene(EPS) inside, color: white. |
| Lighting System | Ceiling lights 1units× 4pcs=4pcs36W, with electronic ballasts. | Ceiling lights 2units× 4pcs=8pcs36W, with electronic ballasts. | Ceiling lights 4units× 4pcs=16pcs36W, with electronic ballasts. | Ceiling lights 5 units× 4pcs=20pcs36W, with electronic ballasts. |
| Ventilation System | Exhaust air from top side. Motor:external setting; total power:0.18KW. Fan type: axial fan, BAF-300 anti-explosion motor, total air capacity: 2,200m3/h. | Exhaust air from top side.Motor:external setting; total power:0.18KW. Fan type: axial fan, BAF-300 anti-explosion motor, total air capacity: 2,200m3/h. | Exhaust air from top side. Motor:external setting total power:0.37KW Fan type: axial fan, BAF-400 anti-explosion motor, total air capacity: 2,880m3/h. | Exhaust air from top side. Motor:external setting total power:0.37KW Fan type: axial fan, BAF-400 anti-explosion motor, total air capacity: 2880m3/h. |
| Filtering System | Pre-filter, exhaust fiberglass filter. |
| Control System | Power Switch,Light Switch,Fan Running Switch,Power Socket. |
