Engine Timing Kits for Suzuki and Ford

Engine Timing Kits for Suzuki and Ford
Price: US $ 26.99-38.99/Set
Trade Terms: FOB,CFR,CIF
Min Order: 200/Set
Pay Type: T/T
Timing chain kit, auto timing kits
They are suitable for various Car Brands: Buick, Nissan, Suzuki, Ford, Fiat etc

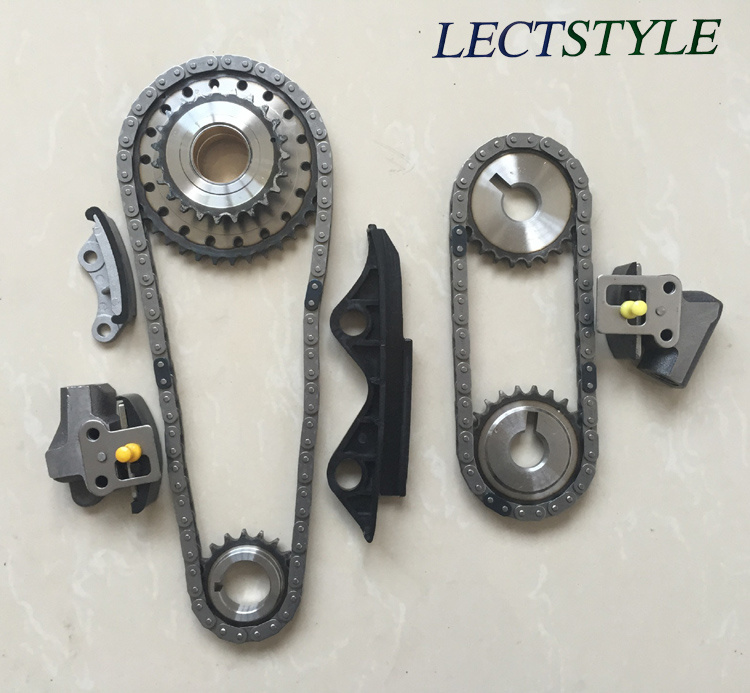

Timing chain kit contains :
1.Timing chain
2.Cam sprocket
3.Crank sprocket
4.Tensioner
5.Guide
Guarrantee : 60,000 km or One year  ~~~


Timing chain kit parts Details
(1)Component Part:
       Timing Chain, Timing Sprocket/Gear, Tensioner, Guide, Gasket and so on.

(2)Timing Chain:
Material:   Link Plate--65Mn; Pin--35CrMo; Bush, 20CrMnMo
Process:   Link Plate--isothermal heat treatment; Pin--chromate treatment
Link Plate Surface Treatment: Bluing, Yellowing, Copper-plated, Zinc-plated, Nickel-plated, Chrome-plated
                 Pin and Bush with polishing treatment, and pin with accurate grinding
Hardness:   Pin, RC60; Link plate, RC47
Pin Diameter Tolerance: 0.015mm
Tensile Strength: 5.5~6.0kn

(3)Timing Gears:
Material: S45C, FCD450
Treatment: Carbonized
Teeth Hardness: HRC48~52

(4)Tensioner:
Material: FC200
Hardness: HRC20
Tensile Strength:≥200MPA

(5)Guide:
Material: S45C, PA66
Hardness: S45C, HRC18~22; PA66, HRC75~80



Choice for all the world
LECTSTYLE is one key of global suppliers for motor and transmission parts.
Our brand aim to continuity, quality, service, reliability and innovation .
(1)  OE quality
As  a professional supplier,
we are using the experience we have acquired over many years and state-of-the-art production technologies
we are continually investing in the expansion of our own production and own sales team.
all products must meet our own strict quality criteria
we know exactly which factors affect the quality of the production process.
(2)  Ensure customer satisfaction
we always focus on the wishes and requirements of our customers and partners. After all, it is only through know-how, speed, the highest level of delivery reliability and focusing on service that we can meet our ambition to achieve future-proof partnerships throughout the entire value-added chain in the independent aftermarket.
(3) Best choice from us
We can supply more than 600 models popular timing kit . We give you a 12 months quality guarantee on LECTSTYLE timing chain kits


Prod Model: TK-002
Markets: North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe
Type: Steering Gears/Shaft
Material: Alloy
Certification: GB
Automatic: Semi-Automatic
Standard: Standard
Condition: New
About us

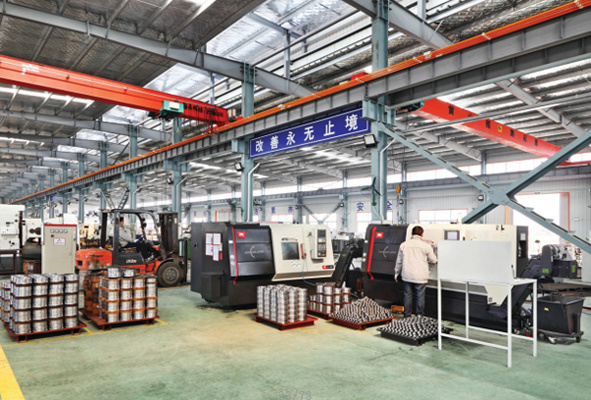

Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.

Our main supplied products as below:

1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer

2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).

Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.

Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.

In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
