Elevator Brake Lining in Roll

Name: Elevator Brake Lining in Roll
Brand: ibuyautoparts.com
SKU: 744623245
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	300mm x 7mm x 10meter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe
Size:	300mm X 7mm X 10meter
Width:	300mm
Thickness:	7mm
Density:	2
Color:	Brown and Yellow
Type:	Brake System
Material:	Non-Asbestos
Position:	Front
Certification:	AMECA

Product Description

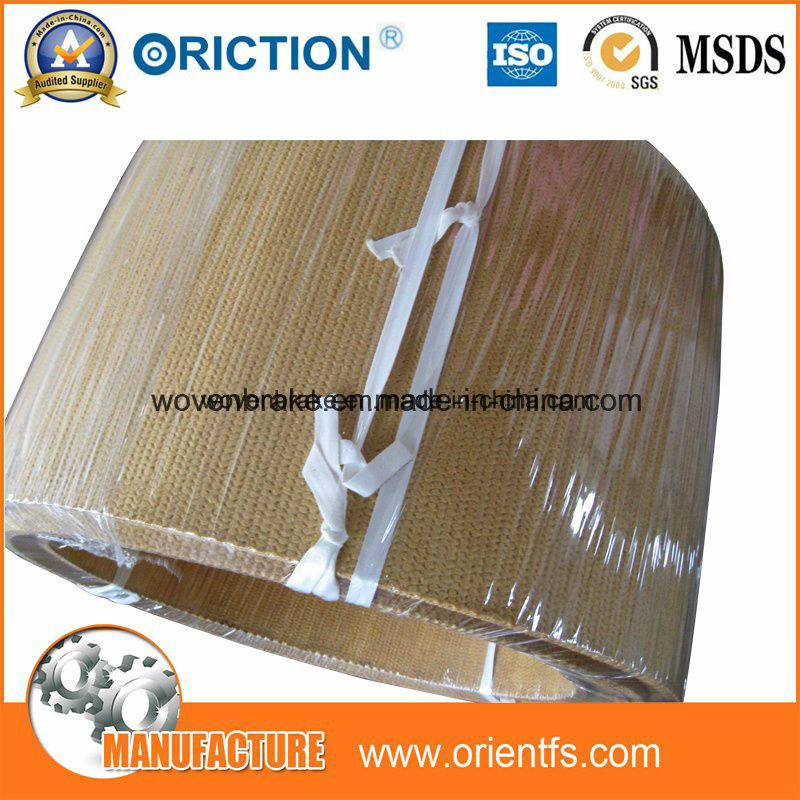

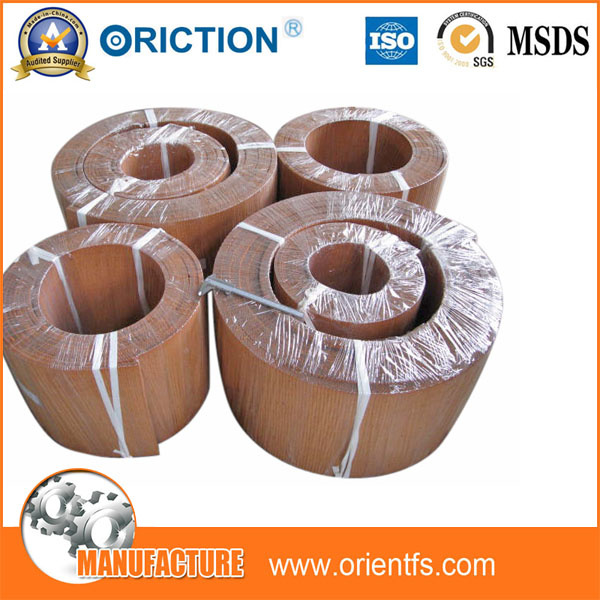

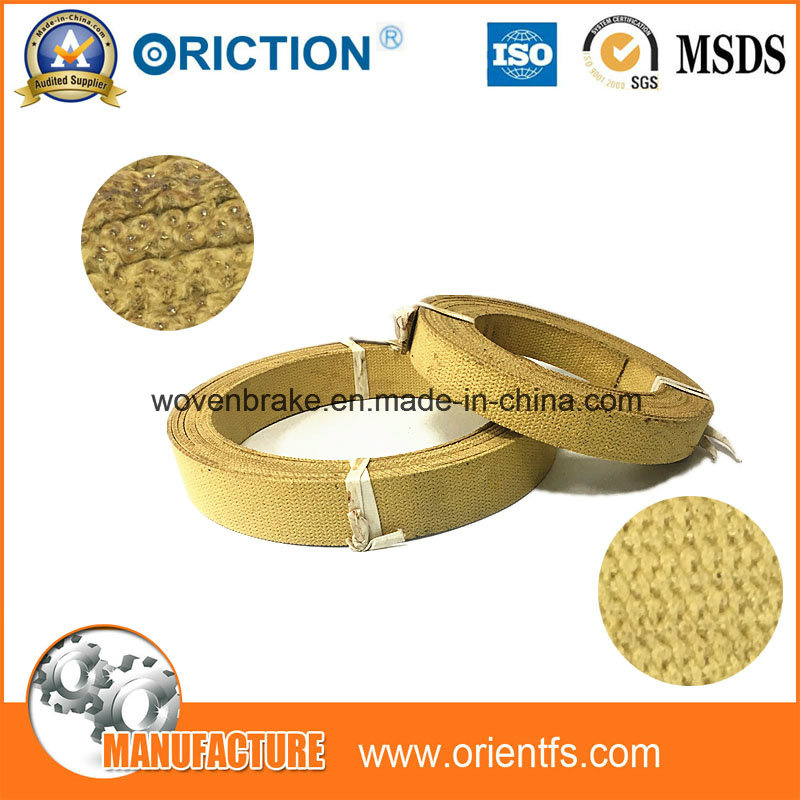

Elevator industrial woven brake lining in roll is made from non asbestos fiber, brass and resin. Orient brake lining in roll is high flexibility, good wear rate, stable friction coefficient and without any environment pollution.

Elevator industrial woven brake lining in roll is good wear rate, stable friction coefficient and without any pollution.
39years' experience
ISO9001: 2008 verified
Hot sale products
High quality with competitive price
This product can be applied to tractor, traction machine, windlass, winch, elevator, mine hoist, escalator, excavator, conveyor, boat, crane, drilling machine, light truck, motorcycle, forklift, blender, turbine, etc
Elevator industrial woven brake lining in roll

TemperatureCoefficient of friction(μ )Wear rate(V)cm3/N. M
1000.40--0.65≤ 0.7 X 10-7
1500.35--0.65≤ 0.9 X 10-7
2000.32--0.60≤ 1.1 X 10-7
Elevator industrial woven brake lining in roll
Color: Brown and yellow
Working conditions200, 1.0MPa Pressure.
Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
SpecificationT5~30X W500
Elevator industrial woven brake lining in roll is good wear rate and stable friction coefficient.

NINGBO CIXI ORIENTAL FRICTION PRODUCTS CO. Ltd.

*****************************************************
Address: No 168, Sanjiangkou Industrail Area, Cixi, Ningbo, China
Phone: 0086-574-87655800
Mobile: 0086-13884461123
Fax: 0086-574-87025070
Website: www.wovenbrake.com
Postcode: 315324
******************************************************

Cixi Oriental Friction&Sealing Product Co., Ltd. is located in Cixi, south of Hangzhou Bay, Zhejiang Province, China. It is 110 km east of Hangzhou, 80 km west of Ningbo, and close to national road No. 329. The factory occupies an area of 30, 000 square meters. The company manufactures friction products and sealing products.

With more than 39 years experience Cixi Oriental Friction&Sealing Product Co., Ltd. Specializes in producing brake lining in roll, clutch facing, brake lining, ceramic fiber, carbon fiber packing and non asbestos yarn, all under the ORICTION brand. These products are mainly used in winch brake and engineering machines.

Our factory is a leading enterprise in the Chinese friction and sealing products industry. We have already developed environmentally friendly non-asbestos products of the first generation, featured as: "environmentally protective, safe, value-added and advanced". Our products have passed ISO9001(2008)international quality system certification and have been exported to North America, Western Europe, Southeast Asia.

With competitive prices and good service, we are looking forward to doing business with you.
