Electronic Ve Pump Tester

Name: Electronic Ve Pump Tester
Brand: ibuyautoparts.com
SKU: 628402165
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	US $ 800-1100/Piece
Trade Terms:	By Express
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

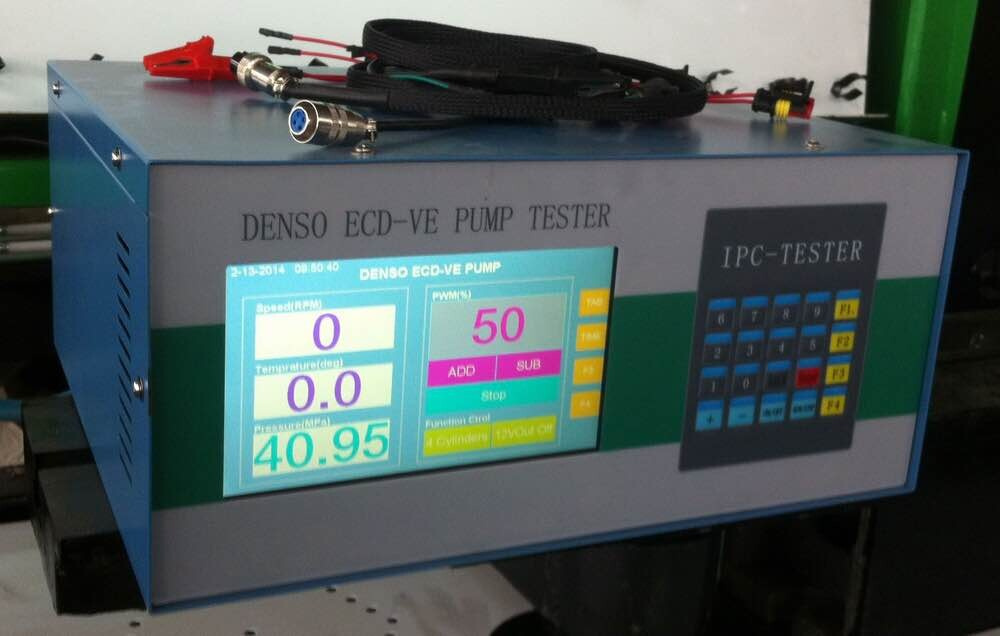

Electronic VE Pump Tester

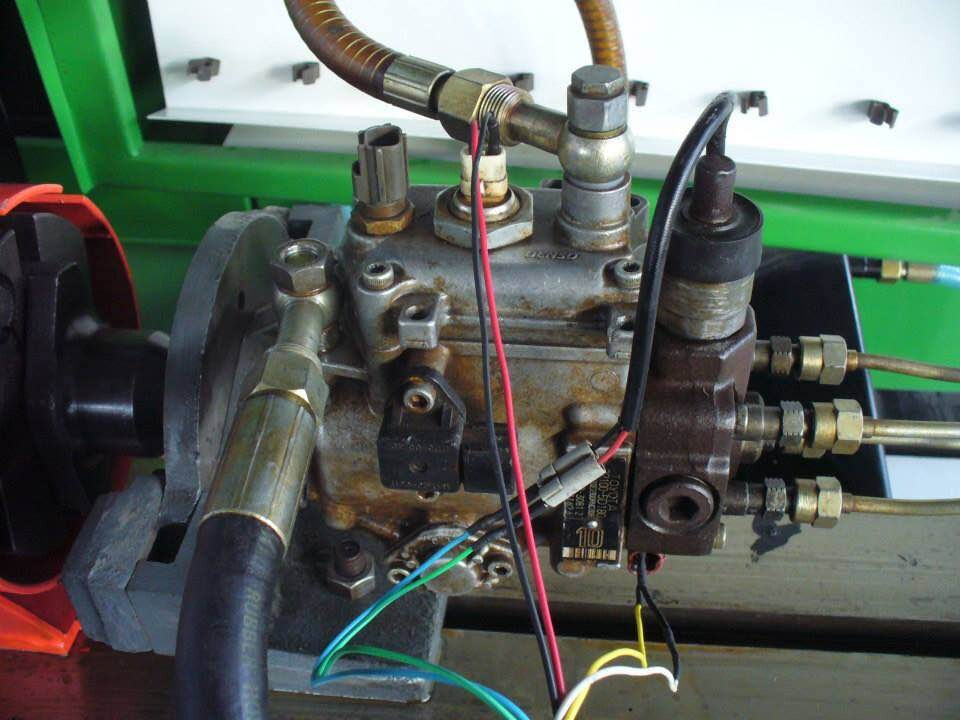

The repair tester for BOSCH VP37 pump simulates the outputs of an Engine Control Unit (ECU), to control fuel injection quantity by driving the proportional rotary-magnet actuator. The injection quantity consistency under different engine speeds or different fuel injection deliveries can be tested by this tester.

Design Features

1. Two user selectable operational control modes

- Open-loop control mode

The angular position of the rotary-magnet actuator is controlled by manually setting the duty circle of the driving PWM signal.

- Close-loop control mode

The operator sets a target position of the rotary-magnet proportional actuator.

The system adjusts the duty-cycle of the driving PWM signal automatically according to the real-time measurement of the angular position sensor.

The proportional actuator is stabilized to the target position quickly.

2. Monitor voltage signal of the angular sensor on the LCD screen

3. Button to enable or disable fuel injection cut-off solenoid on VP37 pump

4. Calibrated by a Bosch Genuine Standard Injector

Prod Model:	VP37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO
Update Method:	by Hard Disk

Our company was established in 1978 as one of the oldest Chinese agricultural and construction equipment supplier in the overseas market and ISO9001 approved. Annual turn over is over 100 million US Dollars per year.

We supply 18HP-280HP tractor and tractor implements; construction equipment including LIUGONG wheel loader, XCMG wheel loader, truck crane, motor grader, skid steer loader, HC forklift, SD bulldozer, backhoe loader, reach stacker, etc. and its spare parts.

All products are not only well sold in China, but also to Southeast Asia, Middle East, Australia, Africa, Europe and America. In order to meet the requirement of international market, FOTMA will strive to upgrade our products and keep on innovation so as to provide perfect products and best service to the customers both from domestic and abroad.
