Electronic Gas Valve CNG Cylinder Act04 Regulator

Name: Electronic Gas Valve CNG Cylinder Act04 Regulator
Brand: ibuyautoparts.com
SKU: 839042215
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 1-26/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

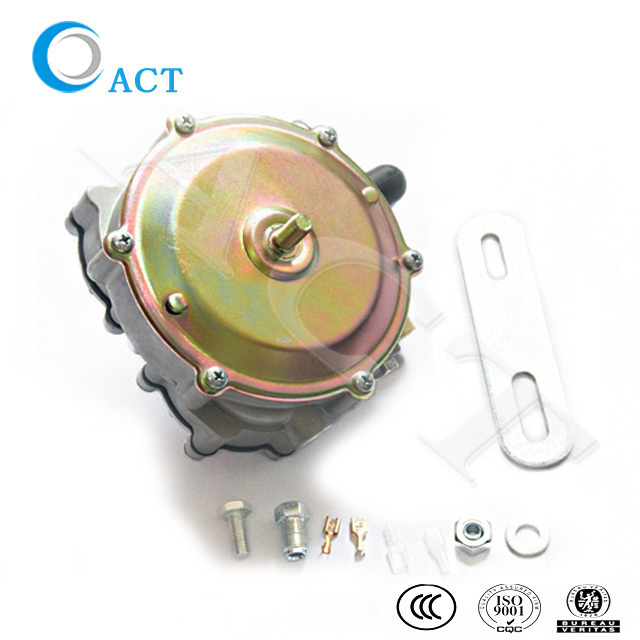

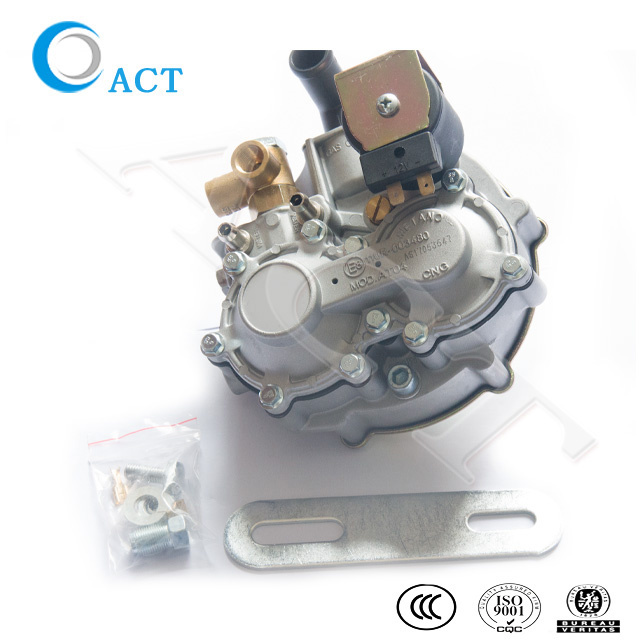

Electronic Gas Valve CNG cylinder ACT04 regulator

Brief Introduction

Electronic reducer for traditional CNG systems

ACT CNG pressure reducer, model ACT04, is a 3 stages electronic reducer for traditional systems.

Compact and very reliable, it is homologated in accordance with ECE R110 and complies with ISO 15500 standards. This reducer is equipped with a double regulation system to obtain always the best performances.

SPECIFICATIONS FOR ACT04 Reducer
Product details	Regulated media	CNG
	Material	Aluminium
	Dimension	155x190x110 mm
	GW/NW	2.3 kG /2.25KG
Main performance parameters	Maximum input pressure	26 MPa (260 bar)
	Maximum output pressure	depending on the mixer
	Inlet Connection	M12x1 pipe ø 6 mm
	Outlet connection	Swivel fitting ø 19 mm
	Working voltage	DC12V
	Coil Power	17 W (solenoid)
	Power Capacity:	Up to 140 HP
Package details	10 Pieces / carton	23 KG	0.055 CBM
	20 Pieces / carton	46 KG	0.011 CBM

Chengdu ACT Technology Co.,LTD

Located in Chengdu city, Sichuan province, China. With eighteen years development, ACT becomes one of largest CNG LPG kits manufacturers in China, mainly specializing in R&D, manufacturing CNG/LPG conversion kits for vehicles.

Our best seller products include CNG/LPG reducer/regulator, ECU conversion kits, injection rail, switch, emulator, pressure gauge,...Most of them are approved by ECE R110 and BV certificates.
Our products have been sold to more than 60 countries around the world.

Packing & Delivery

1.Packaging	A:Common Packing: 1PC + Plastic bag + Label + Inner Box+Export Carton 50PCS/Carton,carton size:45x35x26cm; B:Customized Packing: OEM Label, Inner Box,etc.
2.Transportation	(1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you.
3.Payment Terms	T/T, Paypal,Western Union,L/C,Escow
4.Delivery Time	According to your order quantity.
5.Company Type	Factory and trade integration,years of export experience;

FAQ

Why choose us?.................................................................

1)Top Quality. Every product is made through strictly production process and quality testing, which has pass the test of BV,ISO, CE and GOST, and been accepted by clients spreading over 43 countries even including Italy and Poland.

2)1-year Warranty. All products enjoying 2 years free of equipment maintainence warranty.

3)Free Sample. If you order a set of products for testing, we will return the freight to you from your next normal order;if you order a component for testing, we will return the sample charge to you.

4)Cost Saving. We provide long-life, shock-resistant autogas equipment with excellent quality and better performance, resulting in cost saving.

5)Quick Delivery. We promise to ship your goods with 3 days after confirming your order, or we would like to return your payment if you asked.

Can your factory supply OEM serive?.........................................
Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening

model →start to produce the sample for testing →continue to produce according to your feedback.
What's your MOQ, payment terms?............................................

Our MOQ :1 piece for sample order,5 pieces for normal order.
Our payment terms: T/T, D/P, L/C, Paypal, Escrow.

Contact

Dawson deng

Chengdu ACT technology Co.,Ltd

www.actong.cn www.act-cng.com
http://actcng.en.alibaba.com/
Tel :+86-17828030170 / +86-15928807960

Prod Model:	Reducer
Fuel:	Natural Gas
Component:	Carburettor
Certification:	ISO9001
Stroke:	4 Stroke
Cylinder:	Single Cylinder
Body Material:	Aluminum
Application:	1.6-6.5 L Cars.
