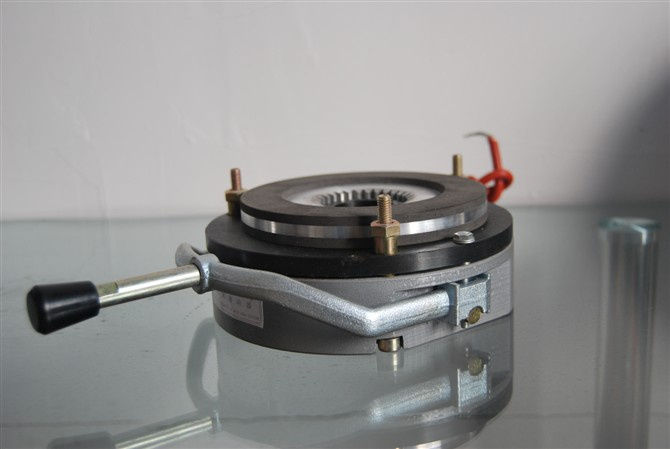

Electromagnetic Lose Electric Brakes-Brake-Motor Brake
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
electromagnetic brakes is losing electricity power-cut occurs. it (release), power off spring Brake friction drum brake (hereinafter referred to as the brake). It mainly with Y series Motor supporting YEJ electromagnetic braking into series three-phase asynchronous motor. Is widely used
In metallurgy, construction, chemical, food, machine tool, packaging machinery, and the broken when power safety (Fang Xian) brake occasions, realizing fast parking and accurate positioning. Because of its small size. light weight, easy installation, wide adaptability, low noise, Working frequency high, action quick, brake reliability, may be added manually interpretation Put devices, it is a kind of ideal automation equipment. Torque can be divided into Adjustable type (conventional type) and an adjustable type (N type) two kinds.

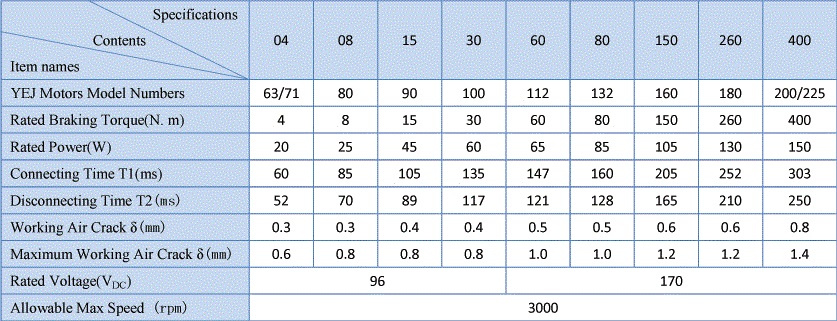

Main Technical Data

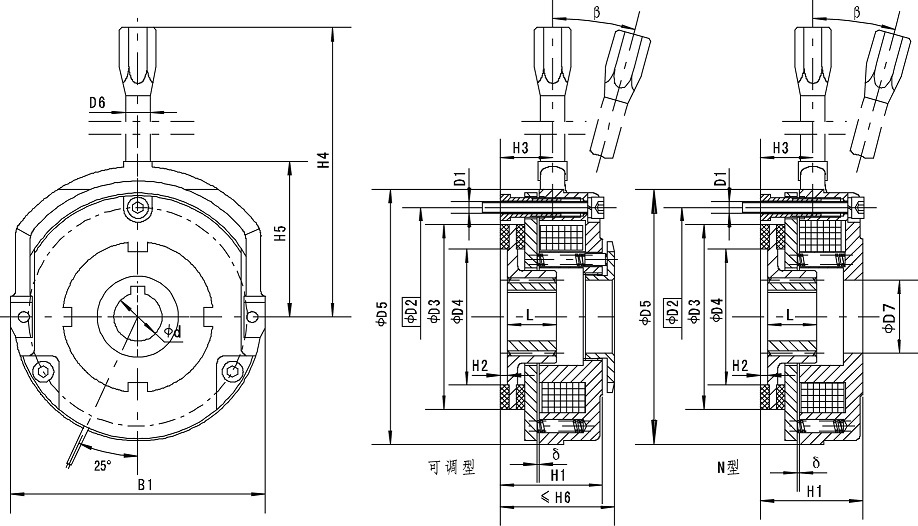

Overall and Installation Dimensions
Installation
Warning
Friction disc and armature surface should be kept clean and free of grease.
When fixing, the air gap "δ" should be kept to the specified value.
The gear hub are not allowed to move along axially.
Turn the hollow bolt so that it is fixed on the bake cover or the flange plate.
| Prod Model: |
DZS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Brake System |
| Material: |
Steel |
| Position: |
Rear |
| Certification: |
ISO9001 |
