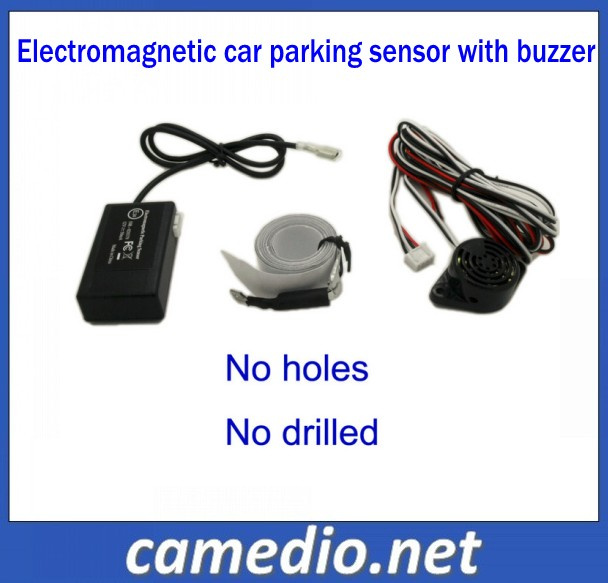

Electromagnetic Back-up Car Parking Sensor with Buzzer

Electromagnetic Back-up Car Parking Sensor with Buzzer
Price: US $ 7.5-9.8/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union
1)Electromagnetic sensor
2)Minimize bumper damage
3)Indicates object distance with different
4)beeping frequencies
5)Easy and concealed "inside bumper" installation


Best for Narrow Space Paking
No Damage on Veichle Appreance
Automatically Start
No Blind Zone, Full Protection




Products Description :

Improves parking safety. Detection in all directions without dead angle.

Minimize bumper damage. Totally built-in installation without impair overall appearance.

Indicates object distance with different beeping frequencies. The sensor antenna activates 3 types of acoustic

signals during approaching an obstacle at different distances.

A continuous sound of Beep approximately between 0-0.3m

A short interval sound of Beep approximately between 0.3-0.5m

A long interval sound of Beep approximately between 0.5-0.7m

Simple and concealed installation. The sensor antenna is entirely installed

inside the bumper without any drilling work.

Maintenance free, no cleaning or washing is required.

Fit for any car, truck, RV or mini-van. Peel & Stick Antenna foil tape

sensor for vehicles bumpers.

Wires to Reverse Lamp (12 Volts DC)

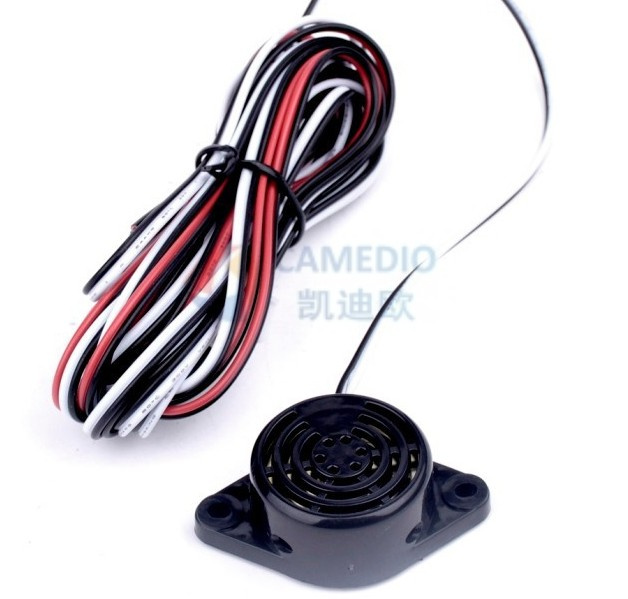

High output Piezo buzzer alert you with a beeping sound

Detects object at 3 feet or less



Specifications:

Peel and Stick foil tape sensor for vehicles with non-metal bumper

Electromagnetic field changes as object get closer to the bumper

Wires to "Reverse Lamp" (12 Volts DC)

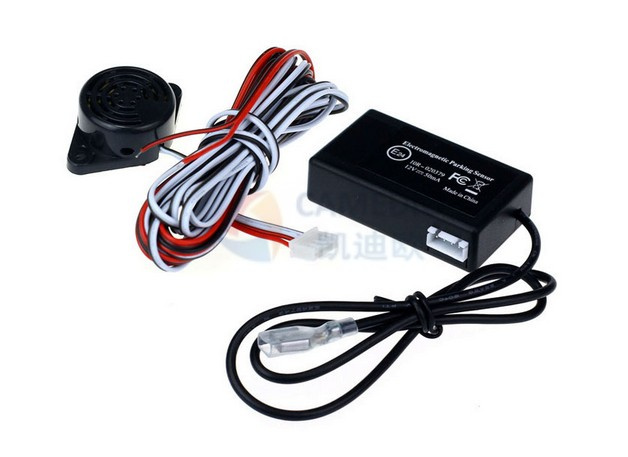

Size: Main Module: 5.8 x 3.4 x 1.8 cm Alarm Horn: Approx 4.8 x 3 x 1.6 cm

Net weight:80 g

Package weight:165 g

Color:Black+Red

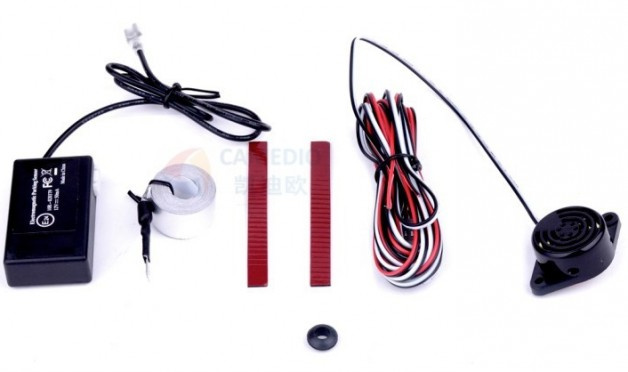

Packing Content:

1 x Main Module

1 x Alarm Horn

1 x Sensor Antenna

1 x set of tool

1 x User Manual in English












Prod Model: U102
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Parking Sensor Style: Rear
No Of Sensor: 4
Detecting Distance: 0-2.5m
Power: 12V/5W
Rate Current: 20-200mA
Colors For Sensors: Various for Selection
Kind: Obstacle Detection Radar
Test Distance: 2.5-0.3m
Certification: CE
Working Principle: Frequency Modulated Continuous Wave
Operating Temperature Range: -20??C~+80??C
