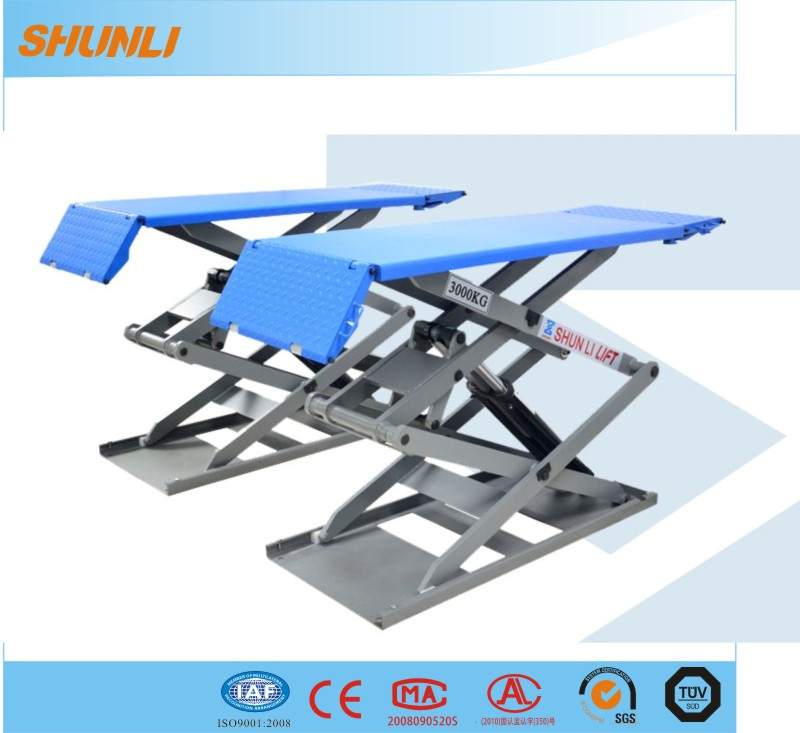

Electro-Hydraulic Scissor Car Lift (SHL-Y-J-30CBL)

Electro-Hydraulic Scissor Car Lift (SHL-Y-J-30CBL)
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: SHL-Y-J-30CBL
Motor: 3kw
Lifting Height: 1880mm
Main Lifting Capacity: 3000kg
Initial Height: 105mm
Clour: Blue, Grey, Yellow, Red Optional
Platform Width: 650mm
Platform Length: 1480-2080mm
Power: 220V, 380V, 50-60Hz
Air Pressure: 0.4-0.6MPa
Installation Type: on Ground
Type: Four Cylinder Hydraulic Lift
Lifting Capacity: 3T
Certification: ISO
Design: Scissor
Brand: Shunli

Product Description

1.     Double level scissor lift, 110mm above the ground at the lowest level.
2.     Adjustable of ramp. It' more convenience and save room.
3.     Alloy Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;
4.     Double hydraulic balance system(main lift) and mechanical safely with automatic unlick are equipped
5.     24V safety control circuit
6.     Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
7.     It can use for more long wheelbase vehicle.
8.     Wear-resisting bearings spare part.

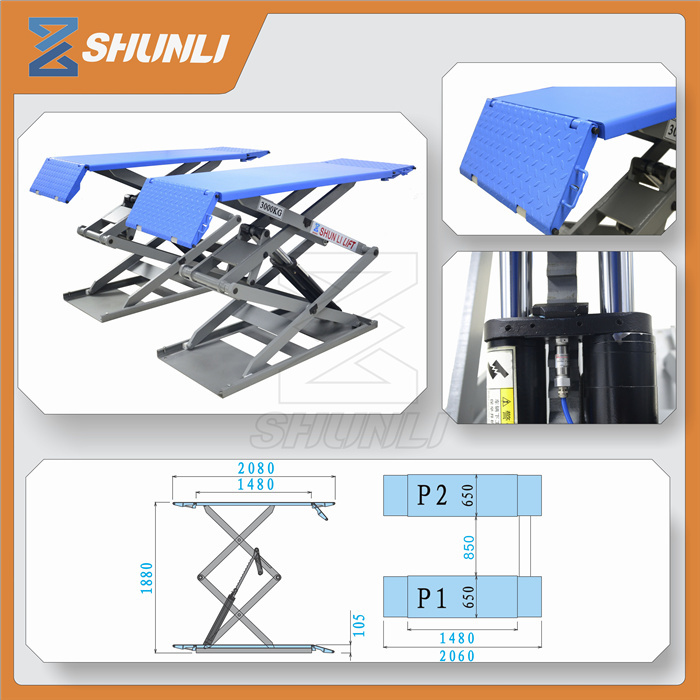

Technical parameter
ModelSHL-Y-J-30CBL
Lifting Capacity3000kg
Lifting Height1880mm
The Platform length1480-2080mm
The Platform Width650mm
Initial Height105mm
Motor3kw
Power220V, 380V
Air Pressure0.4-0.6mpa

About us
SHUNLI Factory OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipment with high added value. The main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balance and tire changer etc. Welcome to visit our factory to know more detail.

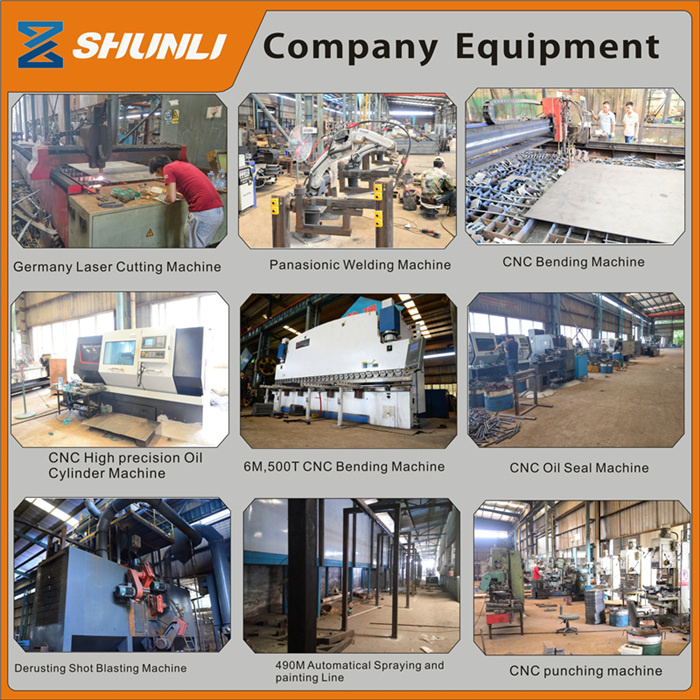

The factory more than 20,000M2, We have advantage equipment. Including 500T CNC lathe, 200M painting and baking line, Robot welder machine and so on. all of product good quality and perfect outside.








SHUNLI is the leader manufacturer in Sounthern of China, specialized in post lift and scissor lift only.  A very professional and powerful company, further information please contact us.

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
