Electrical Heated Spray Booth for Auto Repair Equipment

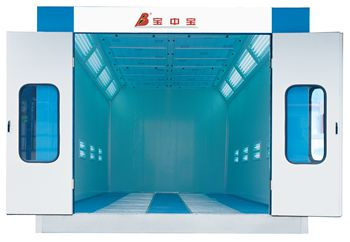

Name: Electrical Heated Spray Booth for Auto Repair Equipment
Brand: ibuyautoparts.com
SKU: 690452532
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 3500-9950/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	Optional
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude

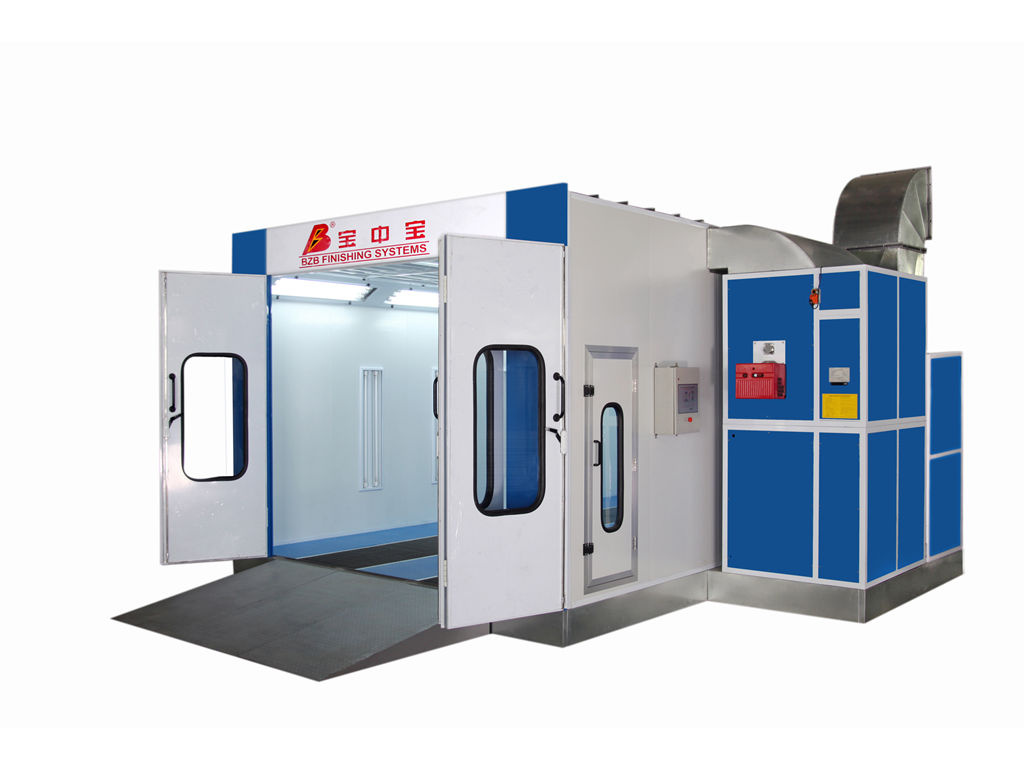

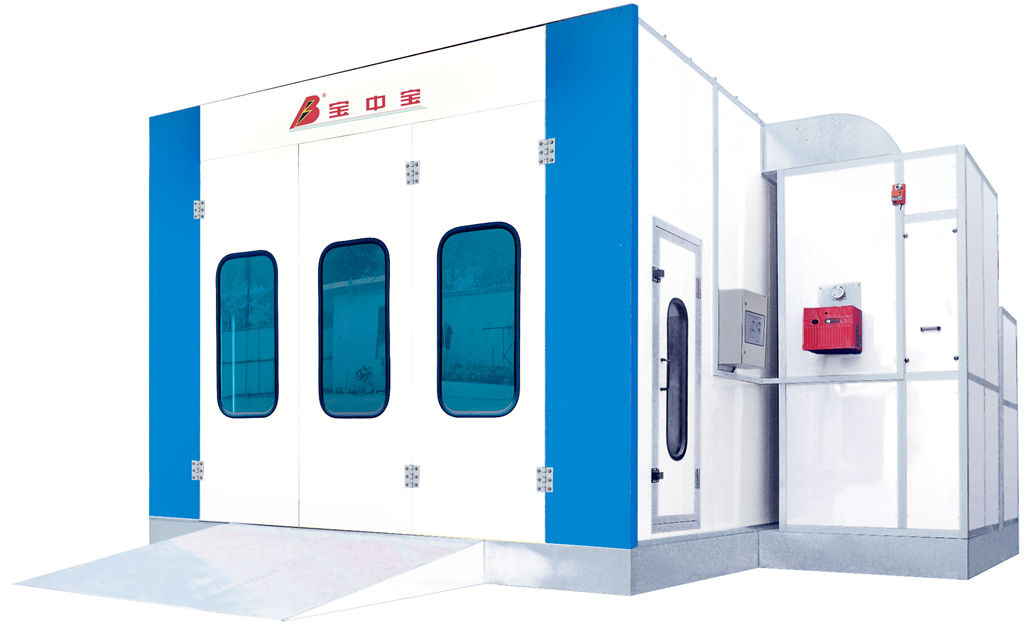

New type 8400 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×1800mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: steel structure base; two line grilles, three diamond plates; height is 280mm; three ramps;
Electric dampers actuate from spraying to baking cycle,equip with electric damper for exhaust air.
Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system:paint booth with infrared lamps as heating, heated by electricity, which is environment-friendly and easy for operation. ;
Lighting system:≥900Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ;Side light: 8Groupsx2Pcs=16Pcs x36W;
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 17.5KW

Intake
Fan

Model:YDW-4.5AL1
Power: 4KW
Quantity:2Sets
Air Capacity:24000m3/h

Exhaust Fan

Model:YDW-5.6M
Power:7.5KW
Quantity:1Set
Air capacity:20000 m3/h

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
