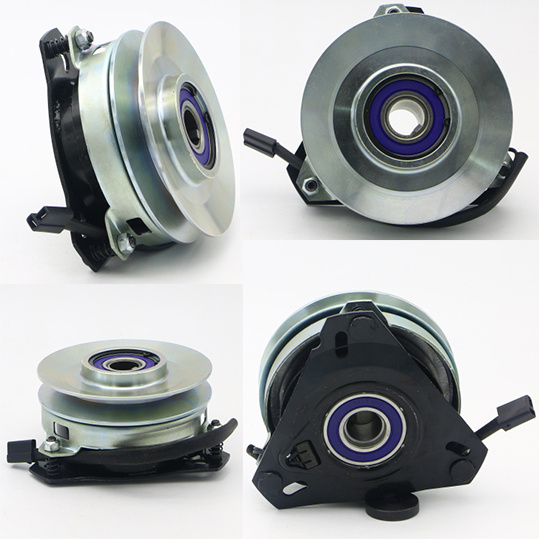

Electric Pto Clutch for Warner 5215-13
| Price: |
US $ 69-79/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
199/Piece |
| Pay Type: |
T/T |
Electric Pto Clutch / Warner 5215-13 Pack Size:1 EXMARK 1-611223, EXMARK 603539, FERRIS 1521823, SCAG 48786, SCAG 481633, SCAG 461074, SIMPLICITY 21823SM, SIMPLICITY 21823, SIMPLICITY 5021823, SNAPPER 29678, SNAPPER 7029678, WARNER 5215-13 J. THOMAS 5215-13, LANDSCAPER EXPRESS 521513, ROTARY 11857 Designed for rugged use , Adjustment and maintenance free , For proper ordering, reference Warner or Ogura part number stamped on clutch , Residential and commercial applications , Made by an OEM supplier , Torque correctly to prevent premature failure , Height: 3 1/2 ", Direction: Clockwise , Uses belt width: 1/2 " OR 5/8", Diameter Pulley: 6 ", ID: 1 "
| 5215 SERIES |
| ITEM | ATC # | WARNER # | INTERCHANGE / REPLACE OTHERS ( CODE + brand ) | PULLEY DIA | SHAFT | DIRECTION |
| 1 | LC21501 | 5210-30
5215-68 | 01000725 /717-3375 /717-3384 /717-3389 /717-3389P /917-3384 /917-3389 CUB CADET
01000725 /717-3375 /717-3389 /717-3389P /917-3389 MTD
01000725 /717-3375 /717-3389 /717-3389P /917-3389 TROY BILT
717-3375 /717-3389 /717-3389P /917-3389 WHITE
717-3389 /717-3389P /917-3389 SEARS CRAFTSMAN | 255-347 STENS
X0188 /X0188-K XTREME
230-4081 EUROGARDEN
7-06035 PRIME
12230 ROTARY | 6" | 1" | CCW |
| 5215-14 | 532109550 /106316X /109550X AYP / ROPER
532109550 /106316X /109550X SEARS CRAFTSMAN
532109550 /106316X /109550X POULAN
532109550 /106316X /109550X WEED EATER
532109550 /106316X /109550X ELECTROLUX
917063 /532109550 /532917063 /109550X HUSQVARNA
917063 /532109550 /532917063 /109550X JONSERED
17063 /1-7063 /7017063 /7017063YP SNAPPER | D18000 JOHN DEERE
D18000 GREAT DANE 21083 /1521083 /5021083 FERRIS 188018 /188019 BOBCAT
33-114 OREGON
7-06030 PRIME
11858 ROTARY
255-387 STENS
X0168 /X0168-K XTREME | 541001 /541003 /541050 /542322 /543259 /543860 /543862/551054 /1-541001 /1-541003 /1-541050 /1-541353 /1-542322 /1-543259 /1-543860 /1-543862 /1-551054 EXMARK | 6" | 1" | CCW |
| 5215-134 | 174367 /532174367 AYP / ROPER
174367 /532174367 ELECTROLUX
174367 /532174367 HUSKEE
174367 /532174367 HUSQVARNA
174367 /532174367 POULAN
174367 /532174367 SEARS CRAFTSMAN | 255-363 STENS
X0167 /X0167-K XTREME
230-4067 EUROGARDEN
33-122-1 OREGON
7-06264 PRIME
12980 ROTARY |
| 6" | 1" | CCW |
| 2 | LC21502 | 5210-52
5215-120
5215-62 | C38410 /WD-C38410 WHITE
C38410 CASE
C38410 /WD-C38410 CUB CADET
C38410 INGERSOLL RAND
C38410 JACOBSEN
C38410 /WD-C38410 MTD
C38410 /WD-C38410 NEW HOLLAND
C38410 /WD-C38410 SEARS CRAFTSMAN | 30908 /03090800 ARIENS
30908 /03090800 GRAVELY
388766 /604182 GRASSHOPPER
388766 /604182 WOODS | 255-519 STENS
93-3160 TORO
X0450 /X0450-K XTREME
230-4073 EUROGARDEN
33-113 OREGON
7-06028 /7-06029 PRIME
9913 ROTARY | 4-7/8" | 1-1/8" | CW |
| 3 | LC21503 | 5215-18 | 126167 1226167 128028 128132 BOBCAT / RANSOMES
| 255-415 STENS
| 33-183 OREGON | 6" | 1" | CW |
| 4 | LC21504 | 5210-33 5215-59 | 16343 /19982 /53679 /7016343 /7053679 /1703816SM /717-0983 /717-3497 /917-0983 /917-16343 /19982 /53679 /7016343 /7053679 /7053679YP SNAPPER | 232201 KING CAT
33-128-1 OREGON | 5 11/32" | 1" | CCW |
| 717-3036 /717-3497 /917-3497 /959-3230 TROY BILT
717-0983 /717-3497 /917-0983 /917-3497 WHITE
717-0983 /717-3497 /917-0983 /917-3497 BOLENS
717-0983 /717-3497/917-0983 /917-3497 CUB CADET
717-0983 /717-3497 /917-0983 /917-3497 MTD | 1703816 /71703816 /1703816SM SIMPLICITY 1703816SM AGCO
990947 CASE
990947 INGERSOLL RAND
990947 JACOBSEN
990947 NEW HOLLAND | 7-06062 PRIME
12227 ROTARY
255-547 STENS
11346 /99-8012 TORO
X0185 /X0185-K XTREME
230-4079 EUROGARDEN
3497 SEARS CRAFTSMAN |
| 5210-33
5215-59
5215-7
5215-53 | 326108 /326108MA AYP / ROPER
326108 /326108MA MURRAY
138412 /326108 /326108MA SEARS CRAFTSMAN | 255-423 STENS
X0190 /X0190-K XTREME
230-4070 EUROGARDEN | 138412 CUB CADET
33-110 /33-116 OREGON | 5-3/8" | 1" | CCW |
| 5215-35
5215-55
5215-92
5215-96 | AM100979 /AM115090 /AM118969 /AM122969 JOHN DEERE
AM108393 /AM119971 /AM123038 /AM38260 JOHN DEERE | X0408 /X0407 XTREME | 5-3/8" | 1" | CCW |
| 5 | LC21505 | 5215-13 | 255-383 /255-507 STENS
X0165 /X0165-K XTREME
7-06260 PRIME
11857 ROTARY
48786 /461074 /481633 SCAG | 21823 /1521823 /5021823 FERRIS
21823 /1521823 /5021823 /21823SM /5021823SM SIMPLICITY
21823 /29678 /5021823 /7029678 /7029678YP SNAPPER
21823 /29678 /5021823 /7029678 SNAPPER PRO | 6" | 1" | CW |
| 601979 /603463 /603539 /611190 /611223 /1-601979 /1-603463 /1-603539 /1-611190 /1-611223 EXMARK |
| 5215-15 | X0173 /X0173-K XTREME |
|
| 6" | 1" | CW |
| 6 | LC21506 | 5215-129 | 717-1708 /917-1708 BOLENS
717-1708 /917-1708 CUB CADET
717-1708 /917-1708 MTD
717-1708 /917-1708 TROY BILT
717-1708 /917-1708 WHITE | 255-539 STENS
X0164 /X0164-K XTREME
230-6235 EUROGARDEN
33-125-1 OREGON | 7-06064 PRIME
11828 ROTARY | 5 3/8" | 1" | CCW |
| 74022 /707402 /7-4022 /7074022 /7074022YP /717-1708 /917-1708 SEARS CRAFTSMAN
74022 /707402 /7-4022 /7074022 /7074022YP SNAPPER |
| 7 | LC21507 | 5215-73 | 255-359 STENS
X0191 /X0191-K XTREME | 230-4066 EUROGARDEN
7-06262 PRIME | 12309 ROTARY
532150283 DIXON | 5 3/8" | 1-1/8" | CCW |
| 140923 /170056 /174509 /532140923 /532150283 /532170056 /532174509 /917140923 /917170056 /917532140923 /917532170056 AYP / ROPER
140923 /170056 /174509 /532140923 /532150283 /532170056 /532174509 /917140923 /917170056 /917532140923 /917532170056 ELECTROLUX
170056 /174509 /532140923 /532150283 /532170056 /532174509 /917170056 /917532140923 /917532170056 HUSQVARNA
140923 /170056 /174509 /532140923 /532150283 /532170056 /532174509 /917140923/917170056/917532140923 /917532170056 POULAN
140923/170056 /174509 /532150283 /532170056 /532174509 /917532140923 /917532170056 SEARS CRAFTSMAN
917170056 /917532140923/917532170056 CUB CADET |
| 8 | LC21508 | 5215-51 | 717-0949 /717-1434 /917-0949 /917-1434 WHITE
717-0949 /717-1434 /917-0949 /917-1434 TROY BILT
717-0949 /717-1434 /917-0949 /917-1434 MTD
717-0949 /717-1434 /917-0949 /917-1434 CUB CADET | X0184 /X0184-K XTREME
230-4064 EUROGARDEN
108218X POULAN
7-06034 PRIME | 9910 ROTARY
33-110 OREGON
255-351 STENS | 5.304" | 1" | CCW |
| 137140 /142600 /532108218 /532142600 /917532108218 /917532142600 /108218X AYP / ROPER
137140 /142600 /532108218 /532142600 /917532108218 /917532142600 /108218X HUSQVARNA
137140 /142600 /532108218 /532142600 /917532108218 /917532142600 POULAN
137140 /142600 /532108218 /532142600 /917532108218 /917532142600 /108218X /917-0949 /917-1434 SEARS CRAFTSMAN
137140 /142600 /532108218 /532142600 /917532108218 /917532142600 /108218X WEED EATER |
| 9 | LC21509 | 5215-130 | 717-1709 /917-1709 CUB CADET
717-1709 /917-1709 MTD
717-1709 /917-1709 SEARS CRAFTSMAN
717-1709 /917-1709 TROY BILT
717-1709 /917-1709 WHITE | X0166 /X0166-K XTREME
230-4077 EUROGARDEN
33-126-1 /33-139 OREGON | 7-06063 PRIME
11829 ROTARY
255-543 STENS | 5 3/8" | 1" | CCW |
| 10 | LC21510 | 5210-34
5215-88 | 050236 /03450500 /3450500 ARIENS
050236 /03450500 GRAVELY
79197 /79446 /7-9197 /7-9446 /7079197 /7079446 /7079446YP SNAPPER | X0196 /X0196-K XTREME
230-4060 EUROGARDEN
50300 DIXIE CHOPPER
116277 EXMARK | 33-118-1 OREGON
7-06263 PRIME
11070 ROTARY
255-323 STENS
116277 TORO | 5 3/8" | 1" | CW |
| 11 | LC21511 | 5215-69 | 717-3390 /917-3390 CUB CADET
717-3390 /917-3390 SEARS CRAFTSMAN
717-3390 /917-3390 TROY BILT
717-3390 /917-3390 WHITE
717-3390 /917-3390 MTD | 523025 /523370 ENCORE
33-127 /33-185 OREGON
7-06040 PRIME
14045 ROTARY | 255-435 STENS
X0189 /X0189-K XTREME
230-4069 EUROGARDEN | 6" | 1-1/8" | CCW |
| 12 | LC21512 | 5215-142 | 717-04080 /917-04080 CUB CADET
717-04080 /917-04080 MTD
717-04080 /917-04080 SEARS CRAFTSMAN
717-04080 /917-04080 TROY BILT
717-04080 /917-04080 WHITE | X0170 /X0170-K XTREME
230-4083 EUROGARDEN
33-139 OREGON | 7-06296 PRIME
12247 ROTARY
255-475 STENS | 6" | 1" | CCW |
Low & High temperature bearings
Machined pulleys
Low & High temperature wires
Stainless steel rivets
Stainless steel leaf springs
Replaceable pulley bearing
Low & High temperature encapsulated Coil
Grinding armature
One piece formed shell
Environmental plating
20%-30% higher torque |
| Prod Model: |
WARNER 5215-13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Pto Clutch: |
Warner 5215-13 |
| Scag 461074: |
Electric Pto Clutch |
| Lawn Mower Clutch: |
12VDC Clutch |
| Certification: |
RoHS |
| Stroke: |
4 Stroke |
| Usage: |
Farm Machinery |
| Voltage: |
DC12V |
Ningbo Eastar Electromechanical Industrial Trading Co., Ltd is a manufacturer and dealer for garden tool, Chainsaw, lawn Tractor, agriculture machinery, snow blower spare parts and their aftersales services
We produce and resell Air filter, oil filter, Fuel Pump, fuel filter, fuel hose, carburetor, blade, trimmer line, trimmer head, recoil starter, Cylinder Piston kit, Starter Motor, Saw Chain, Guide Bar, Chain saw Grinder, Chain File,
Pulley & Idle, Electric PTO clutch, Mandrels Quills, Spindle Housing Shaft Assembly, V Belt, Hex Kevlar V Belt, Starter Motor &Electric PTO Clutch & Solenoid Switch, , Lawn & Garden Tubeless Tire, Tire Tube, Snow Mud Turf Wheel, Farm & Golf Tubeless Tire, PU Rubber Foam Tire, Parts Washer & Ultrasonic Cleaner, Carby Carburetor etc
Main aftermarket brands are STIHL HUSQVARNA MTD PARTNER OLEC-MEL, KOHLER, Honda, KAWASAKI, OREGON, Tecumseh, ROBIN, PARTNER, POULAN, SHINDAIWA, Briggs Stratton, ECHO, WALBRO, ZAMA, YANMAR, Mitsubishi etc.
OEM ODM are available!
