TPMS for GM Vehicles:

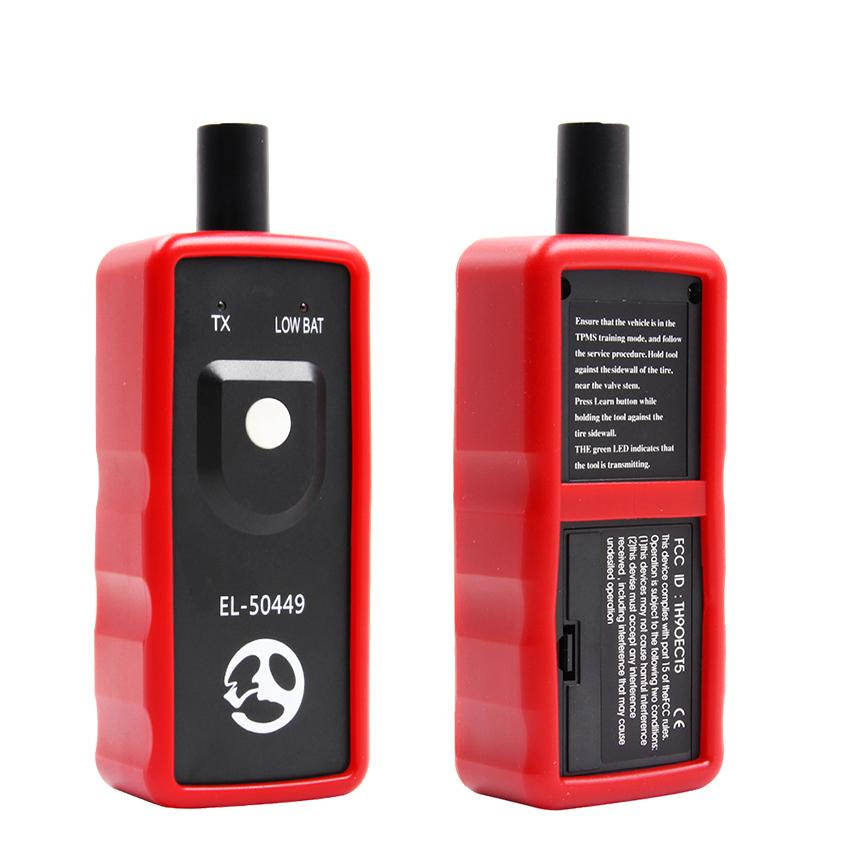

EL-50449 Auto Tire Pressure Monitor Sensor EL50449 external TPMS Reset Tool for Ford vehicles
The brand for Ford Cars, in the replacement tire pressure sensor or tire pressure alarm or exchange tires, need to carry out tire pressure reset operation.
Operation Method:
1: Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; training mode for the vehicle to start the state of the three consecutive dangerous alarm), if you hear the speaker sounded that the training mode has been enabled;
2: Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light;
3: When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear;
4: When the left rear sensor has been read and the speaker is also also twice, the read process is completed and the body control module also exits the read mode.
Precautions:
1: The new battery power lead to less than the standard launch power, after use, please charge about 2 hours;
2: Is the position of the antenna to the tires of the antenna, between the tires and the wheels near the gas core, not wore the gas core.
Vehicle supported
EL-50449 TPMS Compatibility Vehicle List:
2007-2014 for Ford F-150
2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty
2007-2015 for Ford Mustang
2007-2014 for Ford Edge
2006-2015 for Ford Escape
2008-2015 for Ford Expedition
2006-2016 for Ford Explorer
2008-2015 for Ford Flex
2008-2015 for Ford Tauru
2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans
2008-2015 for Ford Fiesta
2008-2015 for Ford Focus
2008-2015 for Ford Fusion
2008-2011 for Ford Crown Victoria
2011-2015 for Ford Transit Connect
2006-2011 for Ford Ranger
2007-2015 for Lincoln MKX
2007-2015 for Lincoln MKT
2008-2015 for Lincoln MKZ
2008-2015 for Lincoln MKS
2008-2015 for Lincoln Navigator
2008-2011 for Lincoln Town Car
2007-2008 for Lincoln Mark LT
2006-2010 for Mercury Mountaineer
2006-2010 for Mercury Monterey
2006-2011 for Mercury Mariner
2006-2011 for Mercuy Grand Marquis
2006-2011 for Mercury Milan
Packaging & Shipping
Packaging List :
1pc x EL-50449
Package:
Polybag + Standard carton box, or OEM as your request:
Shinningpc Technology Co., Ltd is a professional automotive safety systems supplier. We have our own factory and cooperated factories for producing different auto equips products. As a traditional security products manufacturer, we have a clear target that to provide the most competitive products not only in quality but also at price to clients with those mature auto equips. We would like to supply those equips to our clients exactly meet their requirements and surely we adjust our products design according to end user useful advise. And our innovation will make our enterprises as a leading company in the auto security field.
Our products mainly include vehicle mobile safety system, reversing camera system, backup systems, car security monitor, automobile stand-alone monitor, overhead mouting DVD player, headrest DVD monitor, CMOS/CCD night vision waterproof surveillance cameras, vehicle Side Camera, vehicle DVR, mobile DVRs and other auto equips...These products are widely used on cars, vehicles, buses, trucks, trailers, board etc to assure safety while driving/operating.
We concentrate on providing you with reliable equips, every product were strictly tested and inspected. For example, vibration test, waterproof test, vandal-proof test, and aging test are processed to evaluate the product performance. All of our security products come with a 12 month warranty. Also with MOQ and lead-time, we can response quickly and make it finished within 10 working days.
We are sincerely looking for long-term and mutual benefit relationship with stable partners, please don't hesitate to contact with us for further detail.
CE, LVD, RoHS certificate already.
