EG571 DC Motor Graphite Electric Brushes Made in China
1. Products description:
1). Item name: EG571 DC Motor Graphite Electric Brushes Made in China
2). Model No.: EG571(ME377),EG251,EG236S,EG283,EG295AC,EG18,EG2243). Size:2(9.5*51.6*57)mm, or as sample or draft
4). Material: natural graphite material, metal graphite, eletric graphite, resin-boned graphite.
5). Grade: We have Morgan, Schunk, E-Carbon, Mersen, Megaa for you chooses.
6). Sample Lead Time:10 days.
7). MOQ: 10PCS
8). Delivery time: 15-25 days.
9). Addition: We can produce as customer's requirement.
10). Payment: TT, L/C, Western Union, Paypal.
11). Shipping: By Sea, by Air, by Express door toor( DHL/TNT/UPS/EMS/FedEx).
12). Packing: 1. Box packing 2. PP bag 50 or 100 sets, 3. As customer's requirement.
Data sheet:
| Grade | Resistivity
uΩ@m | Transverse Strength
Mpa | Shore Hardness
Mpa | Density
g/cm³ | Contact Vol.Drop
ΔU(V) | Coef.Of Friction | Current Density
A/cm³ | Normal Max.Surface Speed
M/s |
| EG571 | 51 | 31 | 72 | 1.68 | 1.70 | 0.22 | 12.5 | 41 |
2.About material
1) Graphite material --- for slip ring of high-speed turbine.
2) Metal graphite material --- for high load and low voltage motors with less commutation task.
3) Resin bonded graphite material --- for small and middle sized DC(Direct Current) motors and generator plant.
4) Electro graphite material --- has excellent commutating performance and self-lubricated functions, has been widely used in all AC(Alternating Current ) and DC(Direct Current) motors that achieve not only longer product life but also low wear of commutator or slip ring.

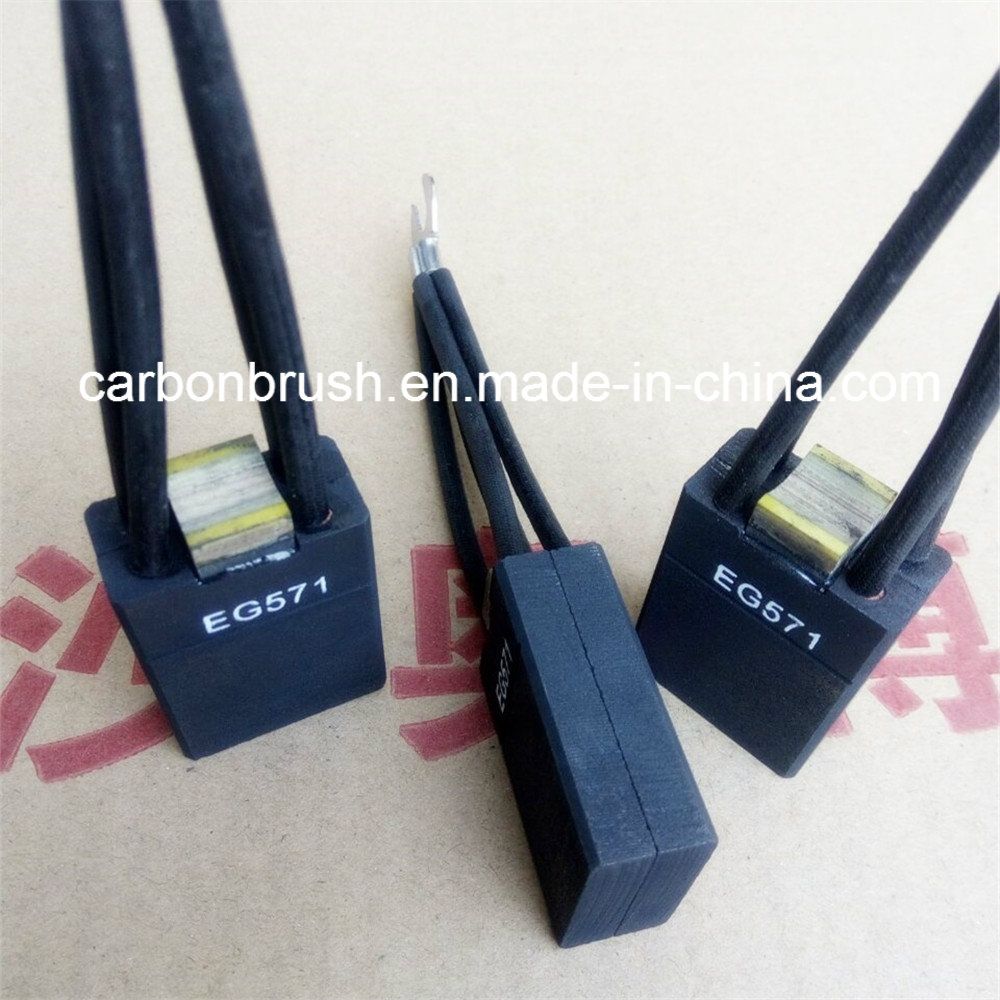

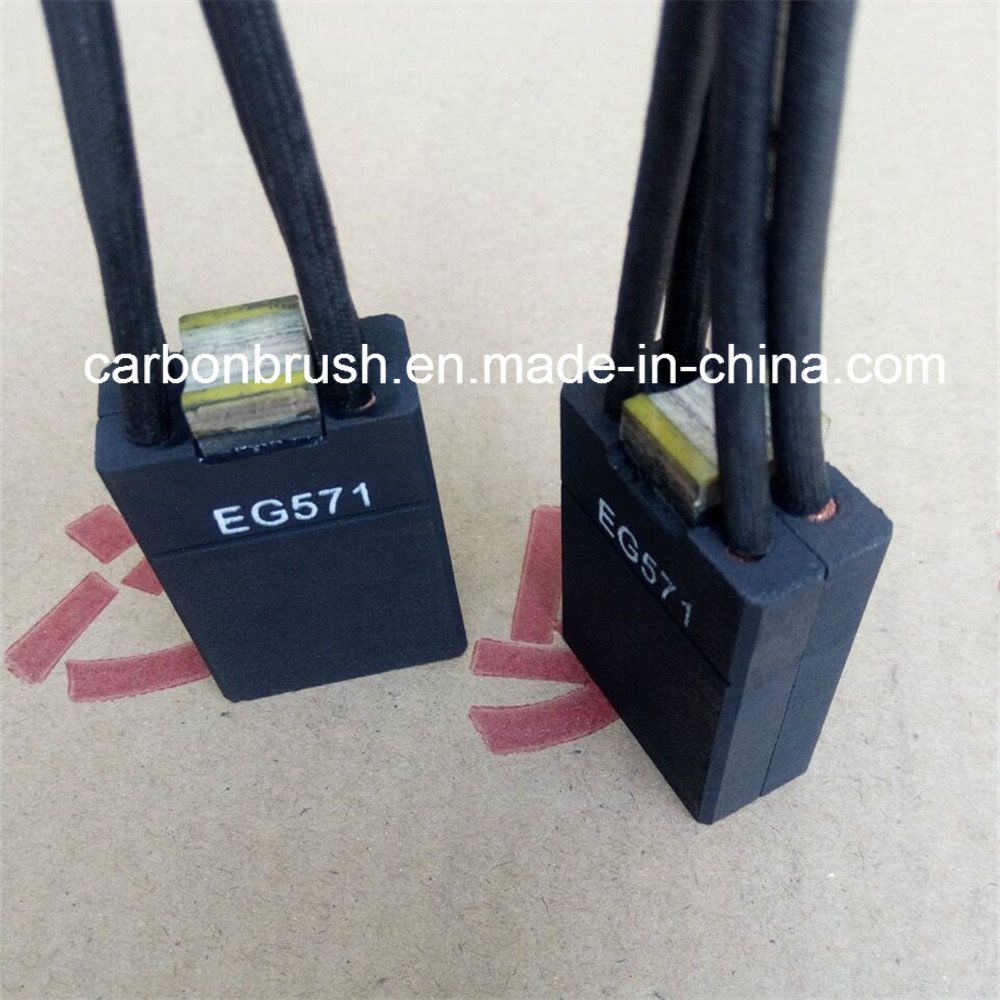

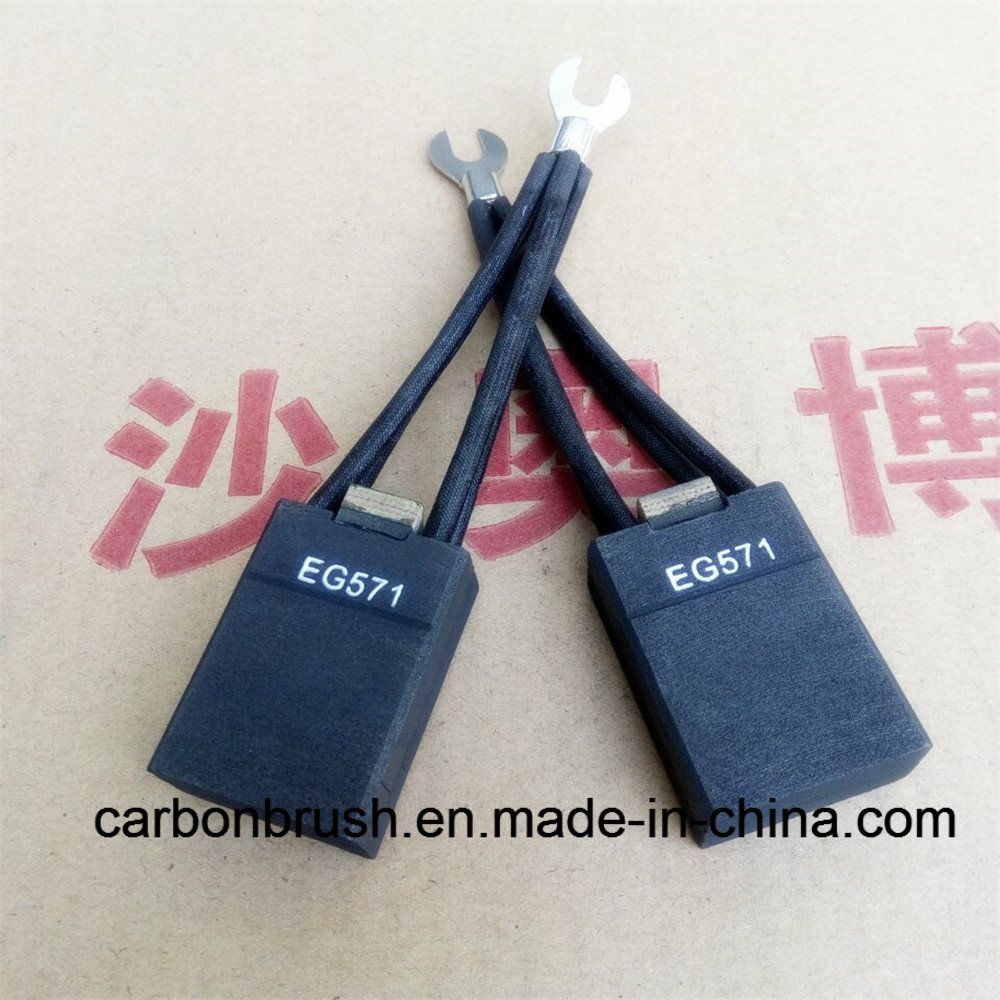

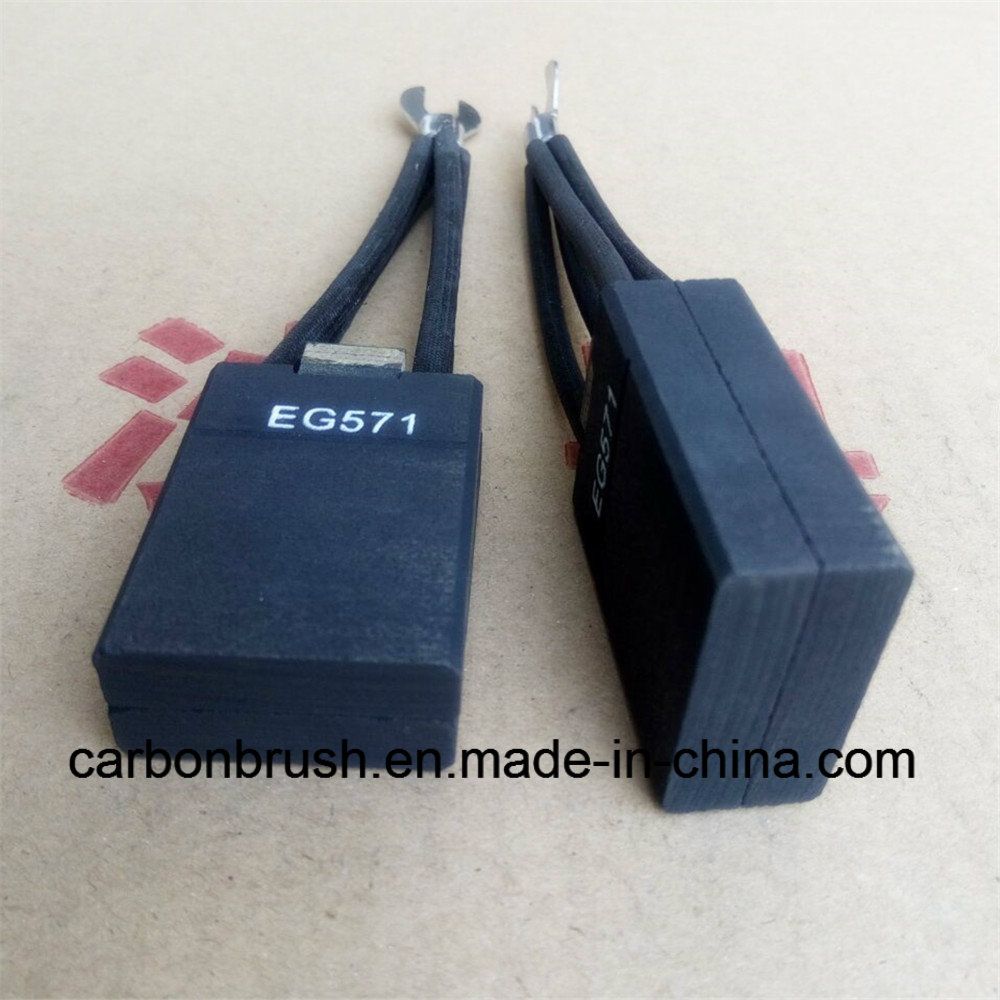

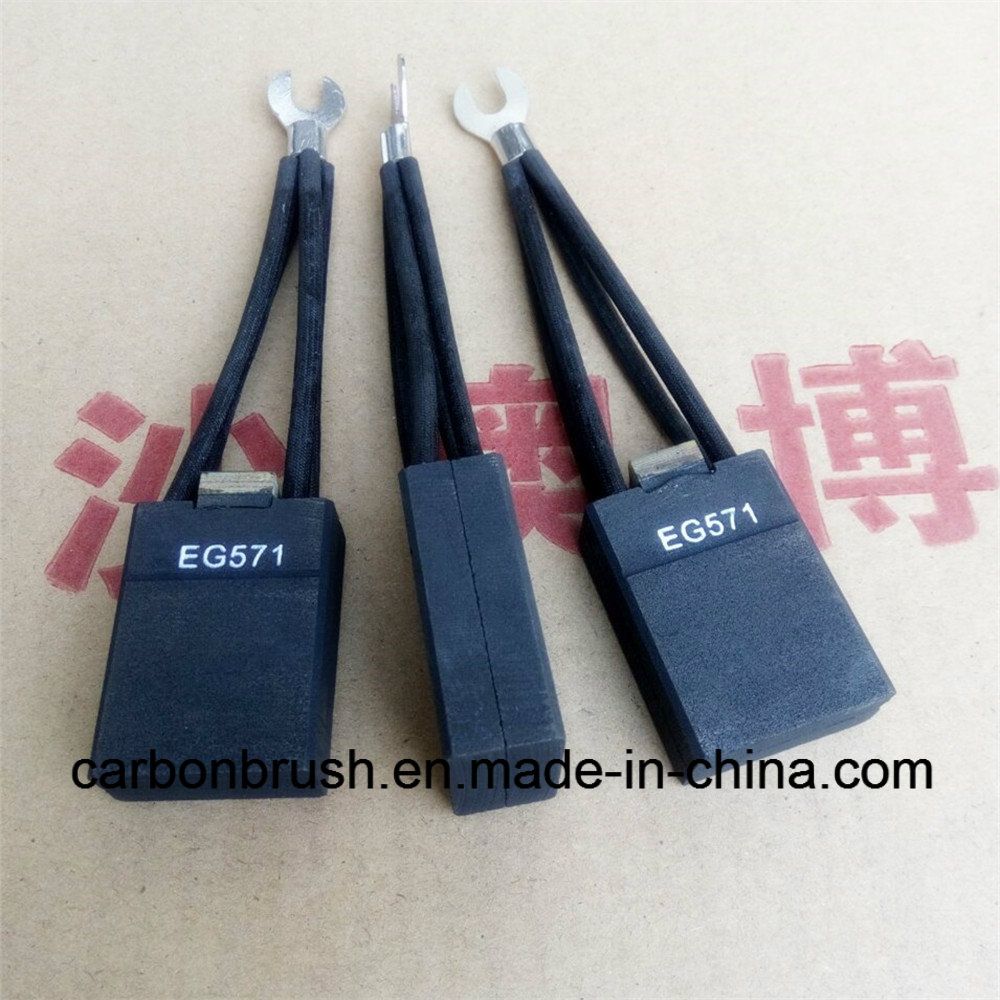

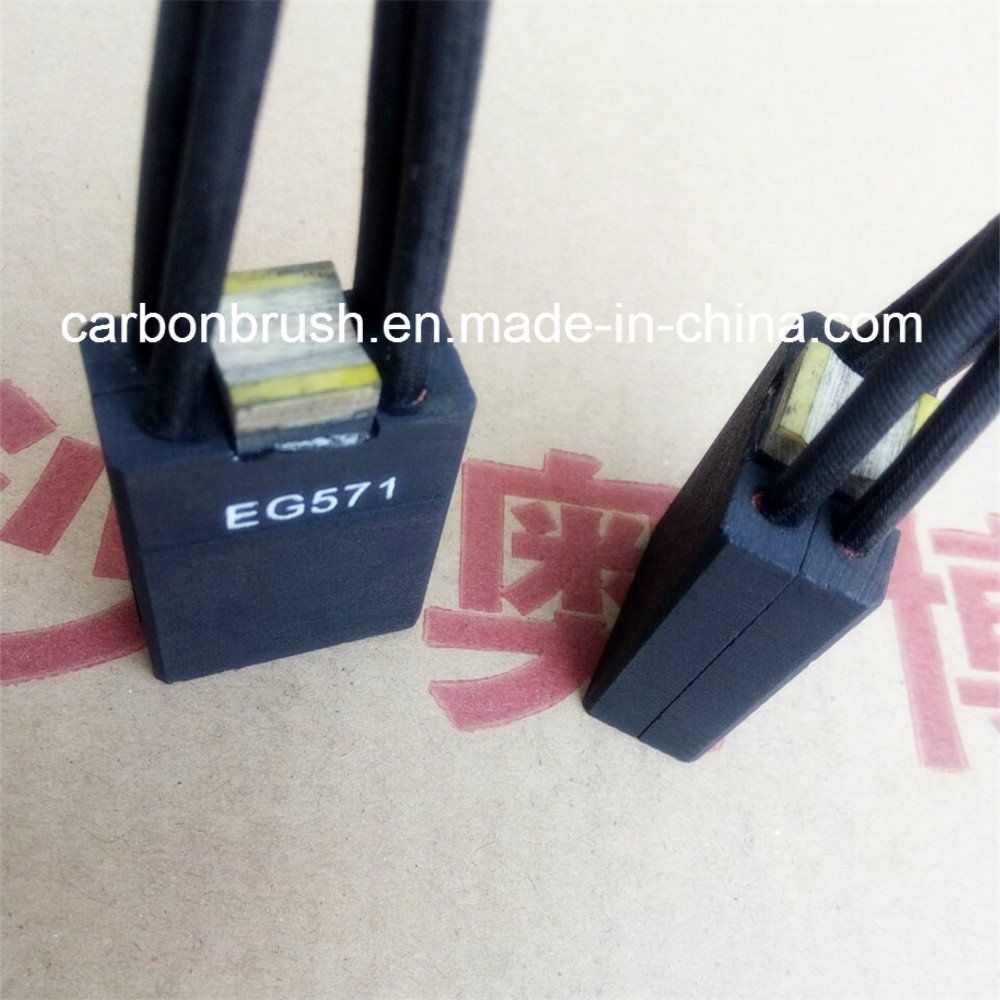

3. Products picture
4. How to select brushes
-according to the motor feature to choose grade of carbon brush
-according to box size of brush holder to confirm size of carbon brush
-according to brush holder structural to know type of carbon brush
5. Key Markets
-Aerospace
-Automotive
-Construction
-Consumer Products
-Industrial
-Mining
-Paper & Printing
-Power Generation
-Renewable Energy
-Steel
-TransportationWelcome to send the inquiry to us, thanks.
