thickness 50mm EPS or rock wool filled with G20 oil burner
inside size: 6900 × 4000 × 2650mm ( L× W× H )

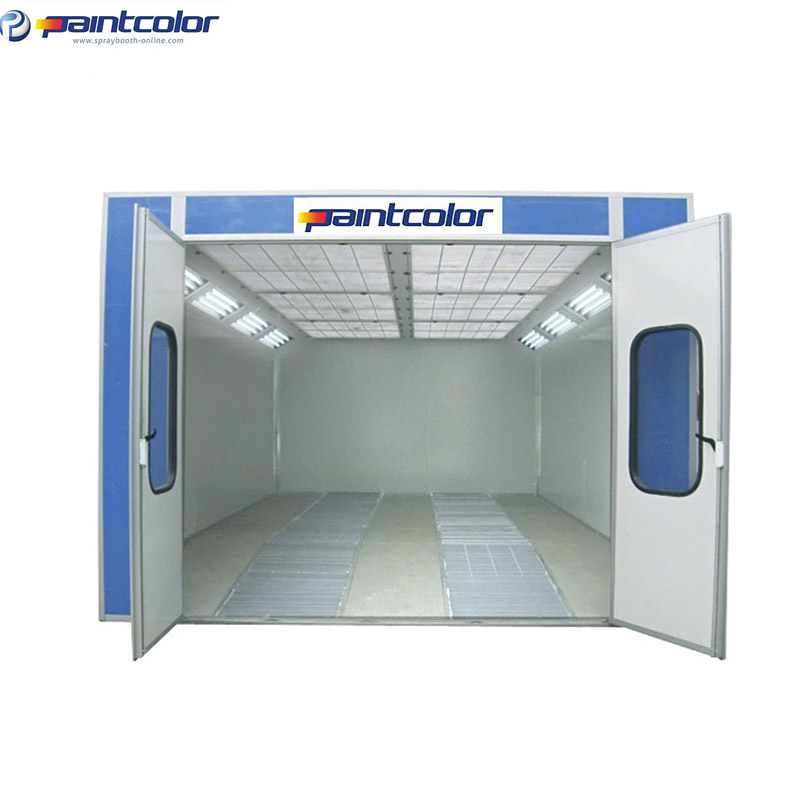

standard auto paint booth
Model: PC14-S200
1. Normal spray booth with CE
2. Professional spray booth manufacturer
3. Competitive price with best quality
4. Timely sell service and lifelong after service work
5. Prompt delivery and effective loading
|
Outside size |
7000× 5250 × 3430mm ( L× W× H ) |
|
inside size |
6900 × 4000 × 2650mm ( L× W× H ) |
|
Main door |
3000× 2600 mm ( W× H ), folding door, 3 folds, made by EPS panel with oval-shaped glass window. |
|
Escape door |
1 unit, 650× 1800mm ( W× H ). |
|
Wall Panels |
Thickness: 50mm, tongue and groove structure, 50mm thick EPS insulation inside. |
|
Roof Plates |
Galvanized steel |
|

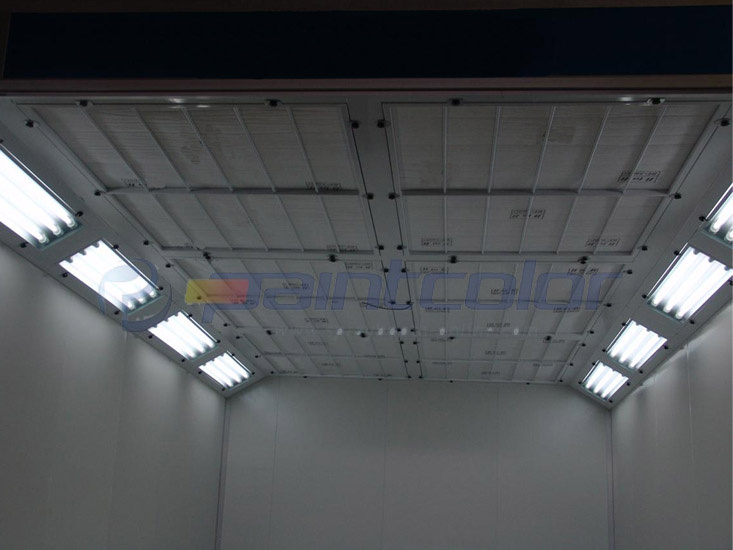

Lighting System |
Ceiling Lights: 8Units × 4Pcs=32Pcs × 36W, with electronic ballasts, lighting boxes are powered coated. |
|
Illumination: above 800LUX |
|
Basement |
Galvanized steel assemble, 280mm high, quadrate steel support, 2 rows of grilles made by flat bar and round steel, 3 rows of indented plates. |
|
Ramps: 500× 1800mm/pc, external setting, 2pcs |
|
Generator setting |
Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; no powder coating, galvanized steel inside, filled with heat preservation material in the middle. |
|
Intake and Exhaust air system |
1× 7.5 KW tubo fan for intake air, total air capacity: 25000m 3 /h |
|
as optional |
|
Heating system |
RIELLO G10 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 100000kcal/h. |
|
Filtering system |
Pre-filter, ceiling filter, fibreglass filter |
|
Control system |
Spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter |
|
Note |
gas burner for optional |
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
