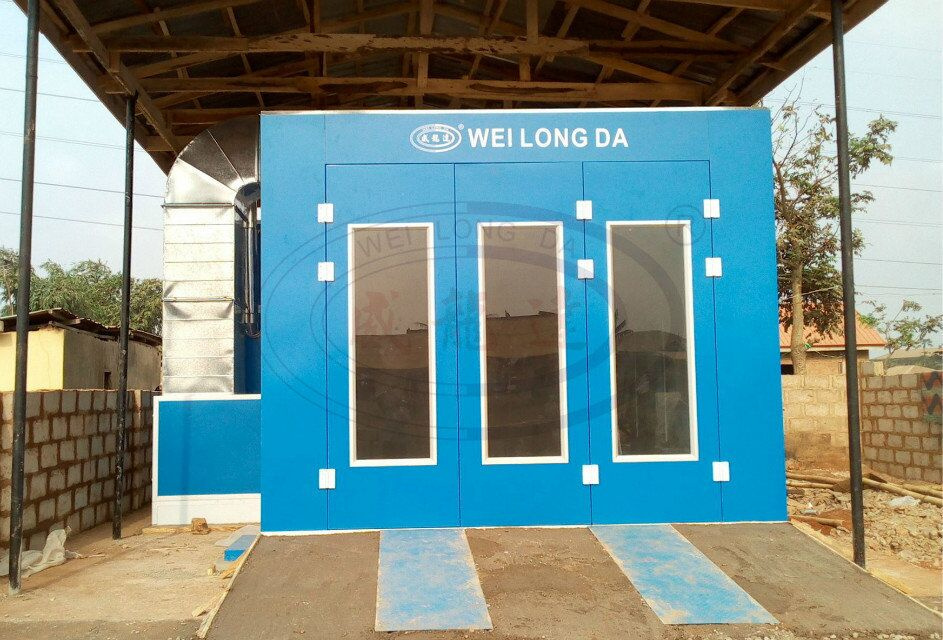

Ecomomic Auto Paint Booth for Car (WLD6200)
| Price: |
US $ 5000-20000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
WLD6200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld-6200(CE) |
| External Size: |
7000*5450*3250mm |
| Internal Size: |
6900*3900*2600mm |
| Air Flow: |
20000m3/H |
| Air Speed: |
0.3-0.5m/S |
| Power: |
12kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS |
| Brand: |
Weilongda |
Product Description

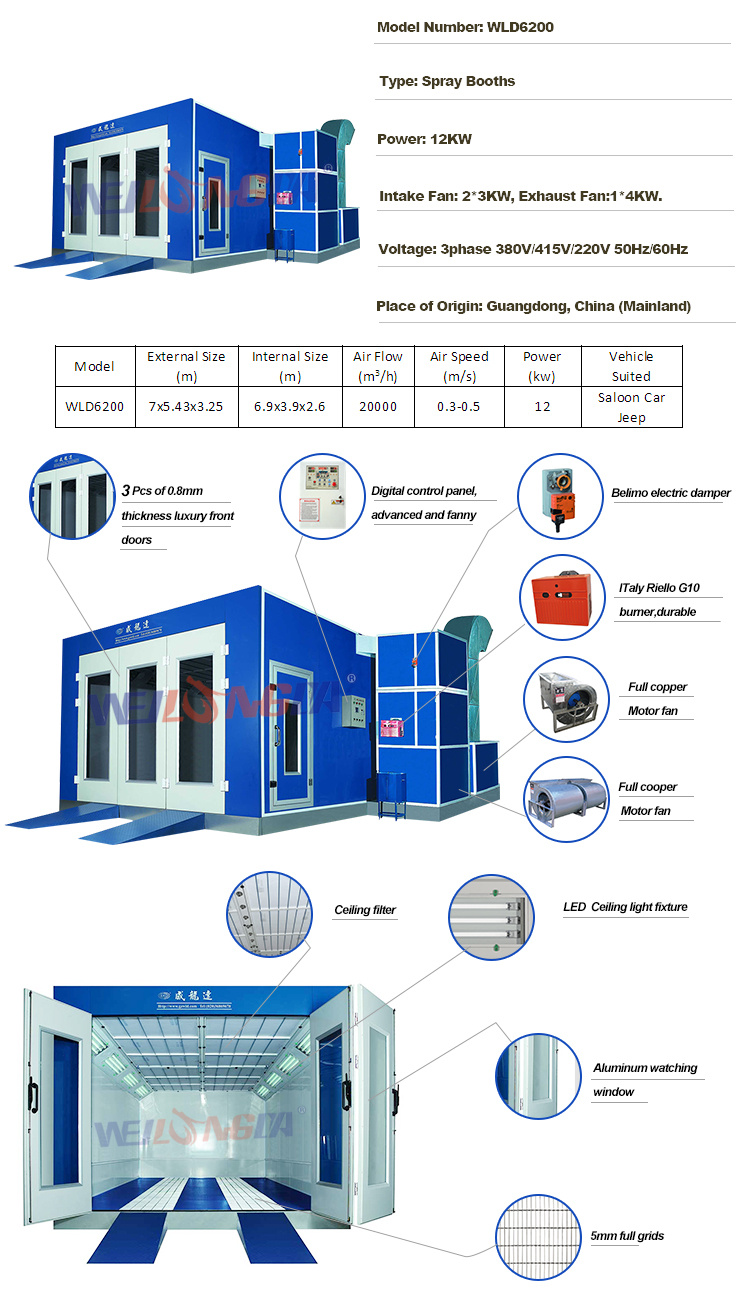

Ecomomic Auto Paint Booth for Car (WLD6200) Specification : | External Size | L7000×W5450×H3480(mm) | Air Flow | 20000m³/h |
| Internal Size | L6900×W3900×H2600(mm) | Air Speed | 0.3~0.5m/s |
| Main Door Size | W3000×H2600(mm) | Fuel Consumption | 4~5kg/vehicle |
| Total Power | 12KW | Application | Saloon Car/Jeep/Wooden/Furniture |

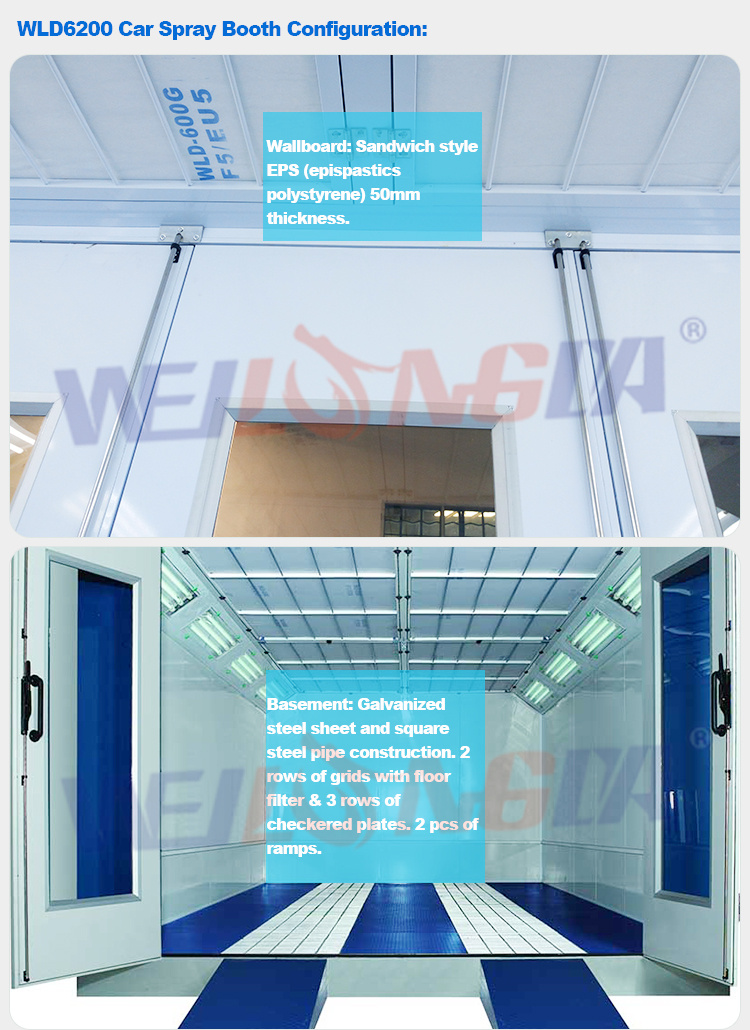

| Wallboard | 50mm EPS, foam density is 14kg/m³. 0.326mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
| Basement | Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plated, 2pcs of large ramps. |
| Door | 3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2600(mm). 1pc of service door, size: W800×H2000 (mm). |
| Fan | 2×3KW centrifugal intake fans, 1×4KW centrifugal exhaust fan, introduced from Siemens technology, supply large air flow to the working environment at low noise. |
| Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
| Air Purification | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter captures granules larger than 5μm. The air cleanliness in the working environment can reach 98%. |
| Burner | Italy Riello G10 diesel burner, 100000Kcal/h. The heating time is 7~9min (20~60ºC). Max. temperature is 80ºC. |
| Heat Exchanger | Made of stainless steel, two layers and two wings for temperature rising quickly and dissipating more heat, the heat exchange rate can reach 85%. Multilayer fiberglass filter. |
| Control Box | Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable. |
| Damper | BELIMO 20N electric damper. |
| Ceiling Light | 8 units × 3pcs=24pcs of LED lamps. |
