E1r90 ISO/Ts16949 Certificates Approved Brake Discs for Benz Car
| Price: |
US $ 5-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
about 2000items |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Ts16949: |
SGS |
| Ht250: |
G3000 |
| Quanlity Standard: |
G3000 G4000 |
| Package: |
Color /White Box |
| Type: |
Brake Discs |
| Material: |
Iron |
| Position: |
Front |
| Certification: |
ECR90 |
| Main Market: |
Global |
| Drum Brakes Classification: |
Brake Disc |
Product Description
1. Are you a factory?
Yes,A pprofessional manufacture of brake rotors and brake drums Brake Discs.
2. How about the products range do you produce?

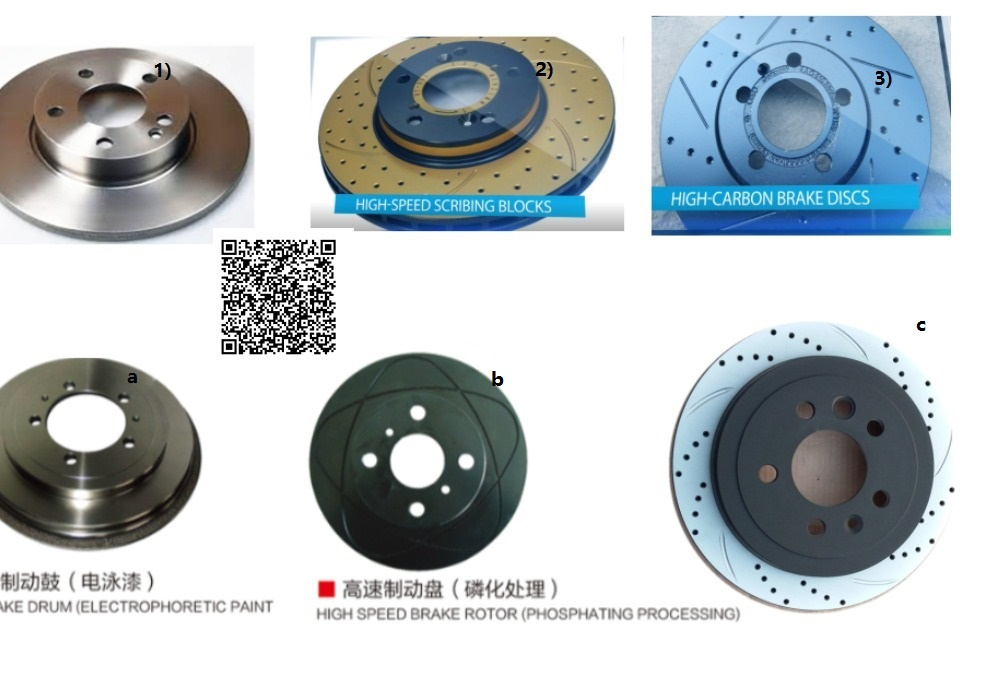

We are specilized in producing a lot of types brake disc for the brake system of truck and trailer. Produc range as below:
3. Can you supply brake disc with adjustable design to adapt customers' using requirment?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment.
4. What advantages of your products and company?
1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2)longer product life.
3) Warranty period: 12 months
4) All of our brake disc passed the strict test before sale to customers.
Brake Discs Material Requirements
1. Must meet Grade GG20 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max. 15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230
Our Brake Discs Specifications:
1. TS16949 AND ISO9001: 2008
2. FOR PASSENGER CAR AND RACING CAR
3. CUSTOMIZED BRAKE ROTORS
DM high quality brake rotor can ensure safety while you are enjoying the driving pleasure.| Quality Standard | OEM G3000 G4000 |
| Meterial Grade | HT250 |
| Chemical composition | C: 3.1-3.4 Si:1.9 -2.3% Mn: 0.6-0.9%
P: <0.15% S: <0.5% Cr:0.6-0.9% Cu:0.3-0.8 |
| Mechanics performance | tensile strength: ≥ 220Mpa |
| Hardness | HB187-240 |
| Non-Destructive Test | Metallurgical test |
| Dimension inspection | dimension inspection report |
| Production according to | customer's drawing or OEM Aimco numbers |
Features:
1) Hardness: 180- 240HB
2) Long service life
3) 100% crucial dimension inspection
4) 100% qualification
5) Low noise Standard for casting is G3000. Standard for machining is SAE- J431. We use AIMCO# and OEM# and right now we have more than 5000s that can be supplied to the aftermarket worldwide.

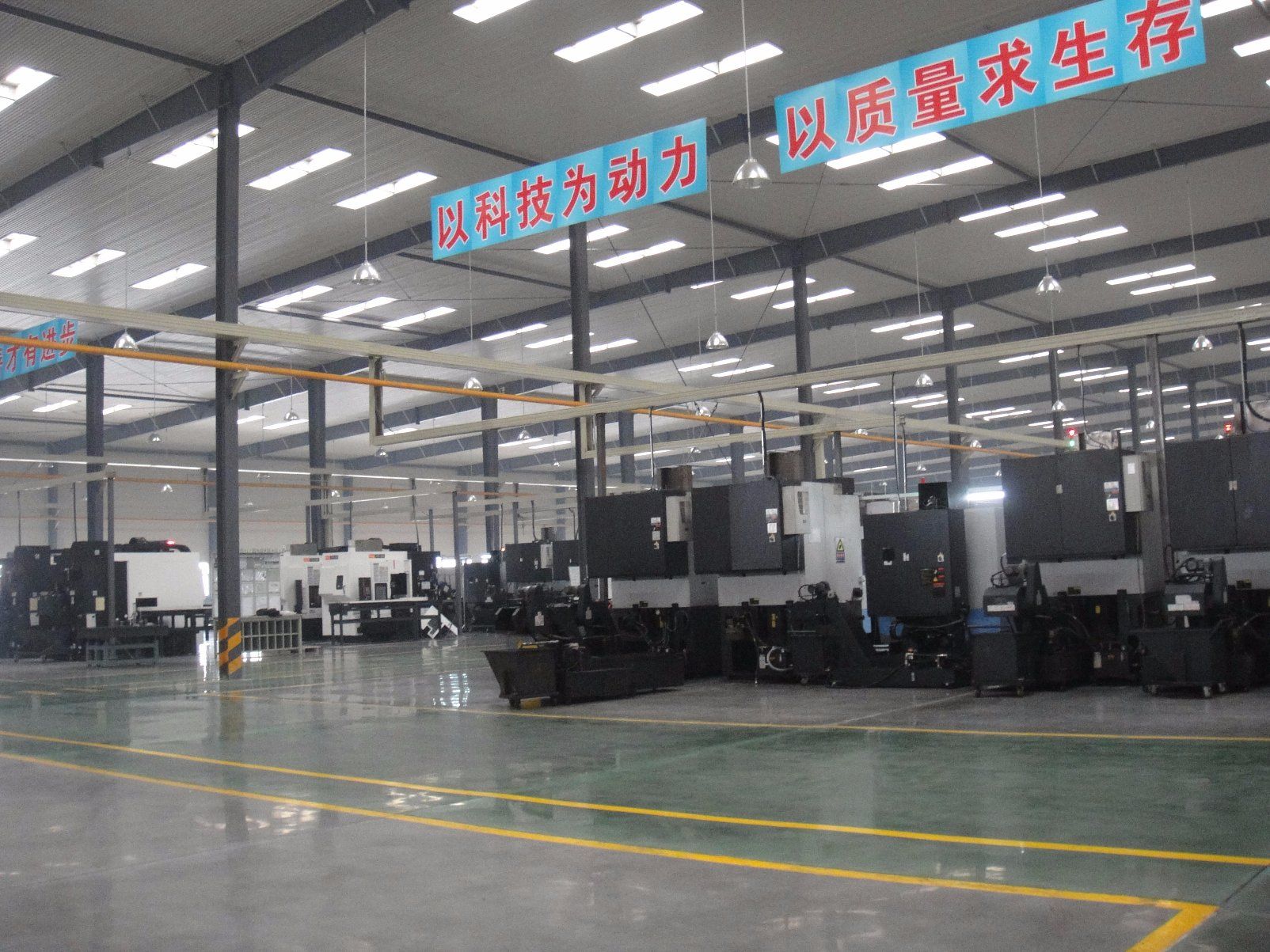

Shandong Zhengnuo Group Co., Ltd. Was founded in 2011, is a collection research and development, production, and sales of automobile brake disc, brake pads, car axles for the leading products of the new industrialization of high and new technology enterprises. An annual capacity of the company is 3 million cars high speed energy-saving brake disc.
At present, the company in key auto parts research and development already obtained 1 invention patents, 10 unity model patents. For the success of the world's top 500 American Chrysler, Ford, GM host form a complete set, become the first domestic among international automobile host supporting market brake disc production enterprise.
At the moment, in the domestic and foreign companies have registered the "Shandun", "Ruichi" trademark of the 9 products, and through the efforts of ISO9001, ISO/TS16949, the EEC international standards certification system, guarantee the product quality reach the international advanced level.
We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
