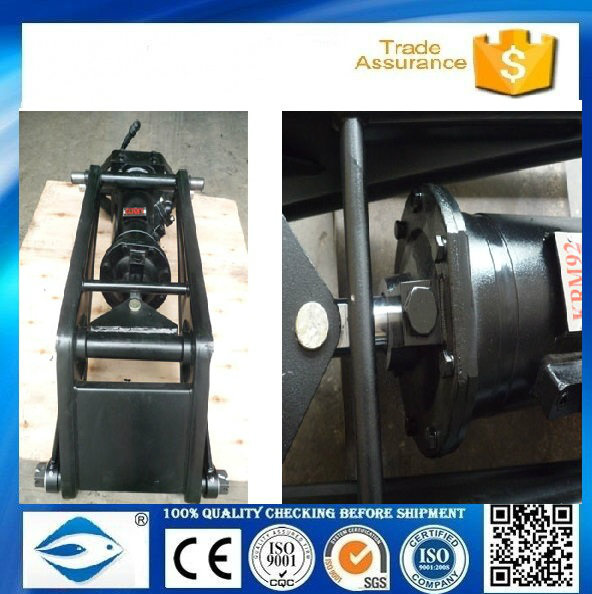

Dump Truck & Electrical Control System
| Price: |
US $ 130/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,D/P |
Products are briefly describe and advantage:
1. Hydraulic hoist
2. Carbon steel
3. Hard chrome plated piston rod
4. Imported material for seal kits
Products feature:
1. With Rolling technology, the cylinder are straighter, the surface are harder and its quality are more durable.
2. All piston rod have to go through comprehensive processing: Heating Vehicle processing GrindingPolishingPlating hard chromePolishing, this comprehensive processing make the cylinder harder, wearable and acid.
3. Using imported materials for seal kits.
4. The structure kits are made by high-strength manganese plate
5. Andvanced surface treatment:
A. Environmental automatically pipelined painting
B. Cleaning with automatic washing machine
C. Assembling in seal clean workshop
| Length(mm) | Width(mm) | Height(mm) | Min. Closed Length(mm) | Weight(kg) |
| 1120 | 528 | 350 | 749 | 122 |
Hoist Cylinder KRM92 | Working Pressure(MPa)(Kgf/cm2) | 6.4 |
Gear Pump KP-35B | Rotating Speed(rpm) | 800 |
| 65 |
| Inner Diameter (mm) | 160 | Discharge Volume(ml/rev.) | 35 |
| Stroke (mm) | 405 | Max. Testing Pressure (MPa)(Kgf/cm) | |
| Min.Close distance (mm) | 666 | 17.2 |
| 175 |
| PistonRod Diameter(mm) | 45 |
Weight(kg) |
10 |
Max. pressure (MPa)
(Kgf/cm 2 ) | 14.7 |
| 150 |
Hoist Mounting and Maximum Lifting Capacity
| Recommended Truck G.W.(kg) | Body Length(mm) | Rear Overhang(mm) | Distance between Load Center and Hinge(mm) | Distance between trunion and Hinge(mm) | Rated Lifting Capacity(kg) | Designed Max. lifting Capacity(kg)
(including load weight) |
| 4000-5500 | 3100 | 340 | 1210 | 1270 | 2000-3000 | 5500/60° |
| Prod Model: |
KRM92 |
| Over 15 Years On Machining Products.: |
ISO9001: 2000; |
| Krm-92 Dump Truck: |
Krm-92 Dump Truck |
| Type: |
One Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
GS |
| Design: |
Single Post |
