Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft
| Price: |
US $ 7000-10000Set |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PHJ-100/200 |
| Power: |
Electronic |
| Gross Weight: |
1200 Kg |
| Drive Power: |
1.5 Kw |
| Power Supply: |
220V 50Hz, or Customization |
| Motor Power (Kw): |
1.5(Variable-Frequency) |
| Application: |
Drive Shaft |
Product Description

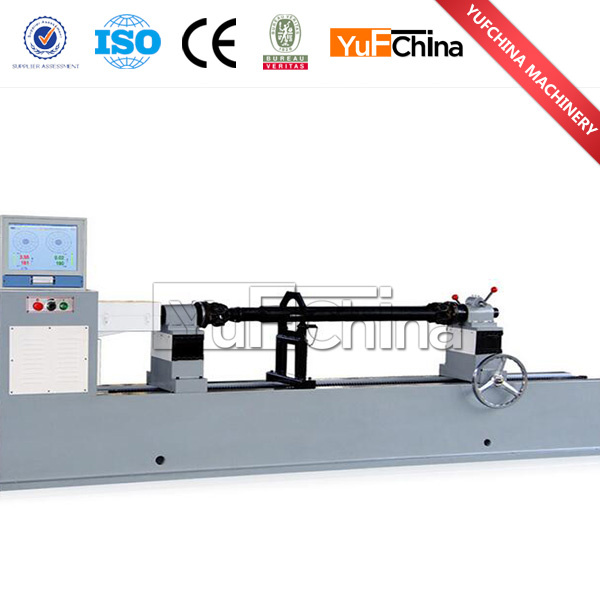

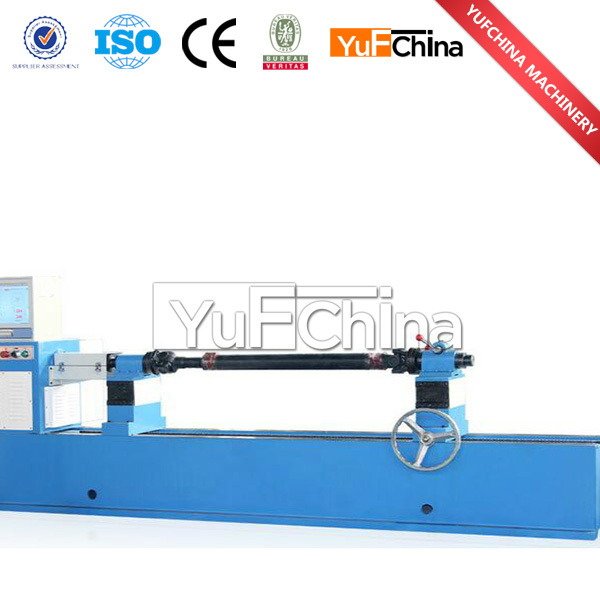

Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft
Description of Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft• Specially designed brackets transmit mechanical force with high rigidity
• Durable and reliable sensor possesses high sensitivity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Advanced electrical measuring system and friendly man-machine interfaceFunction of Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft1. Specially designed brackets, transmit force effectively.
2. High sensitivity sensor, good linearity.
3. Equipped with advanced measuring system.
Application of Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft This balancing machine is equipped with hard bearing structure.Electromechanical transducer adopts piezoelectric sensor large output, small size, stable performance. Mainly used in the production and repair of all kinds drive shaft factories. With the advantages of high measuring speed, high precision, easy to load and unload, investment at low cost. It is an ideal device for shaft manufacturers and maintenance factories.Production Parameters of Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft | Product Name | Drive Shaft Balancing Machine |
| Application | Drive shaft |
| Technical data at a glance | PHJ-100/200 |
| Mass Scope of Workpiece(kg) | 100/200 |
| Max Diameter of Workpiece (mm) | 130 |
| Max Length of Workpiece (mm) | 2000 |
| Shaft tube diameter of workpiece(mm) | 120 |
| Balancing speed(mm) | 1600~3200/1200~3200 |
| Rotation Speed of the Main Axis (r/min) | -3200 |
| Motor Power (KW) | 1.5(variable-frequency) |
| Universal joint torque(N.M) | 60 |
| Min Achievable Residue Unbalance Amounte mar | 5g•mm/kg |
| Once reduced rate (%) | ≥90 |
| Dimensions | 3600mm*600mm*1300mm |
| Gross weight | 1200 kg |
| Drive power | 1.5 kw |
| Power supply | 220V 50Hz, or customization |
Contact Information of Drive Shaft Balancing Machine for Tea Plucking Machine Transmission Shaft We can design machines according to customers' need. If you want to learn more information, please contact us at any time.
