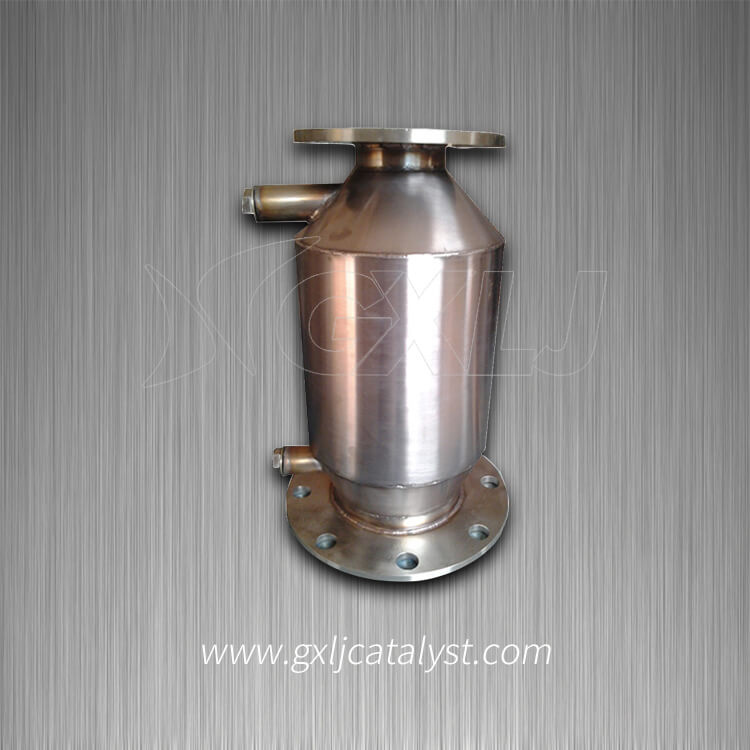

DPF Filter for Small Commercial Vehicles (SCV)

Name: DPF Filter for Small Commercial Vehicles (SCV)
Brand: ibuyautoparts.com
SKU: 725544222
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	US $ 135-1500/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GXLJ
Cell Density:	100-600 Cpsi
Water Absorption:	20-27%
Highest Working Temperature:	>1400
Soot-Filtration Efficiency:	95%
Type:	Motorcycle Engine
Certification:	ISO9001: 2000

Product Description

What is Diesel Particulate Filter?
Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and blocking up passages in both ends and the waste gas enters from one open end, then goes through the porous beehive wall, and finally discharges from adjoining passage. The carbon particulates are left over on passage wall because they are too big to pass through wall hole and won't be discharged to air.

Working Principle of Diesel Particulate Filter
By forcing the exhaust gases through the walls between the channel of the DPF, the particulate matter is deposited on the wall, so reducing the amount of air pollution.
Regeneration of Diesel Particulate Filter
Burn the particulates by rising the gas temperature in filter to filtrate PM which piled in the filter to guarantee the function of filter. The character of particulates in exhaust gas of diesel relates to concentration of Oxygen. It will burn in temperature of 550-650ºC.
Advantage of Diesel Particulate Filter
*Low pressure drop
* Low coefficient to thermal expansion
* Good thermal shock resistance
* High temperature resistance, good resistance to chemical corrosion
* High porosity, pore size distribution uniform, high filter specific surface area
* Long-term durability performance.
*High particulate trapping efficiency, suitable for all kinds of regeneration

Item	data
CFT-02(260Channel)		CFT-03(300Channel)		CFT-04(400Channel)	CFT-06(600Channel)
kg/cm ³	≤ 0.70
Water Absorption%	20-27
Resistance to normal atmospheric temperature	X(Parallel to channels)	≥ 50		≥ 50		≥ 65
Y(Vertical to channels)	≥ 160		≥ 180		≥ 200
Coefficient of Thermal Expansion ° C-1(20-800 ° C)	≤ 1.50*10^6
Soften temperature ° C	>1450
Thermal stability 800 ° C	≥ 3
Specific Surface Area (cm ² /cm ³ )	≥ 20
Chemical composition range%	AI2O3	SiO2	MgO	K.Na2O	Fe2O3	other
31-34	48-51	12-14	<1	<0.5	<1
Specific heat20-100 ° C J/KG.K	800-900	800-950	800-1200	750-800	850-1100	840-920
Thermal conductivity20-100 ° C W/m.k	1.5-2.5	1.4-2.0	1.5-2.5	1.5-1.5	1.5-2.3	1.0-1.2

Item		Technical index
Chemical Composition	SiO2	50.9 ± 1%
	AL2O3	35.2 ± 1%
	MgO	13.9 ± 1%
Physical Properties	Compression Strength in normal temperature	≥ 10Mpa
	Thermal expansion coefficient	≤ 1.2 × 10-6 / ° C
	Wall thickness of hole density of 100 hole/ in2	0.42-0.50mm
	Wall thickness of hole density of 200 hole/ in2	0.32-0.40mm
	Apparent porosity	≥ 50%
	Average hole diameter	10-15 micron
	Highest Working Temperature	1400 ° C
	Soot-filtration efficiency	≥ 95%

General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance

Welcome to consult us!
