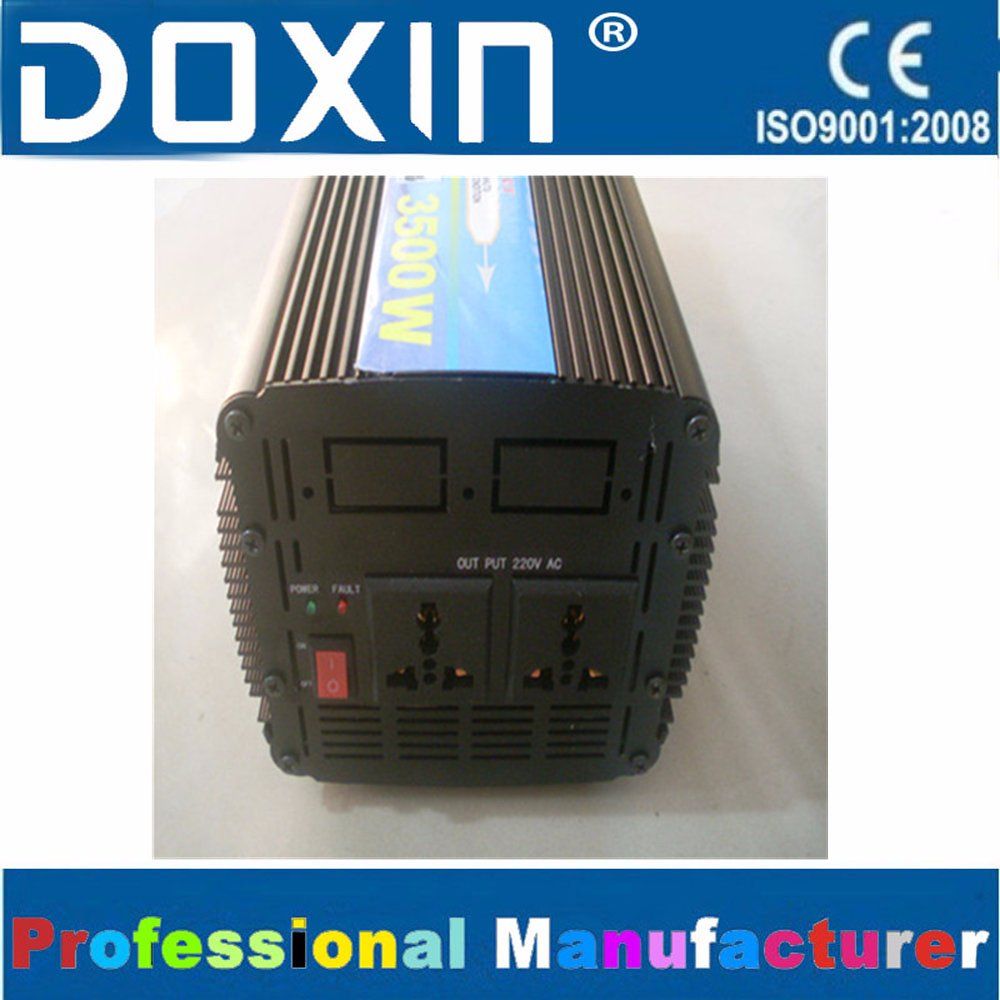

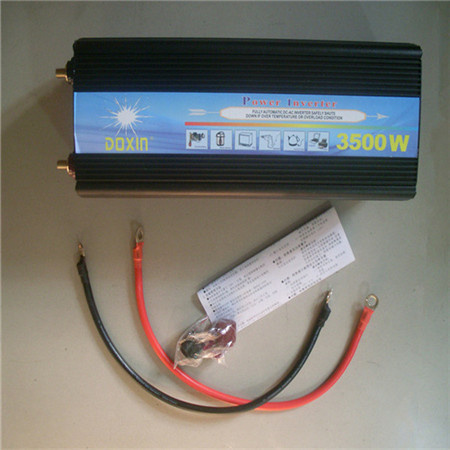

DOXIN 12v/24v to 220v 3500w big capability modified sine wave inverter dc ac car power supply inverter
Specification:
1.Pure sine wave
2.CE and RoHS approved
3.Portable home use
4.Any socket
Feature:
1. Soft-start (1>Gradual voltage ramp-up during inverter startup, This eliminates failed cold starts under load. 2>.Output that momentarily dips in voltage and quickly recovers to allow large motorized loads to start. This eliminates almost all shutdowns from momentary overloads)
2. Imported with original packaging components
3.100% Full Power
4. THD<3%
5. Built-in High Speed Cooling Fan.
6. Anodized Aluminum Case: Provides durability and maximum heat dissipation.
7. All protections (Low Voltage Alarm; Low Voltage Shut Down; Over Load Production; Over Voltage Shut Down; Over Thermal Protection; Short Circuit Protection)
8. One Year Warranty.(In the normal case of using this product, any raw materials or the production process quality problems by the date of purchase within one year, the factory is responsible for the free repair.)
9. CE RoSH SGS GMC IP30 Approved

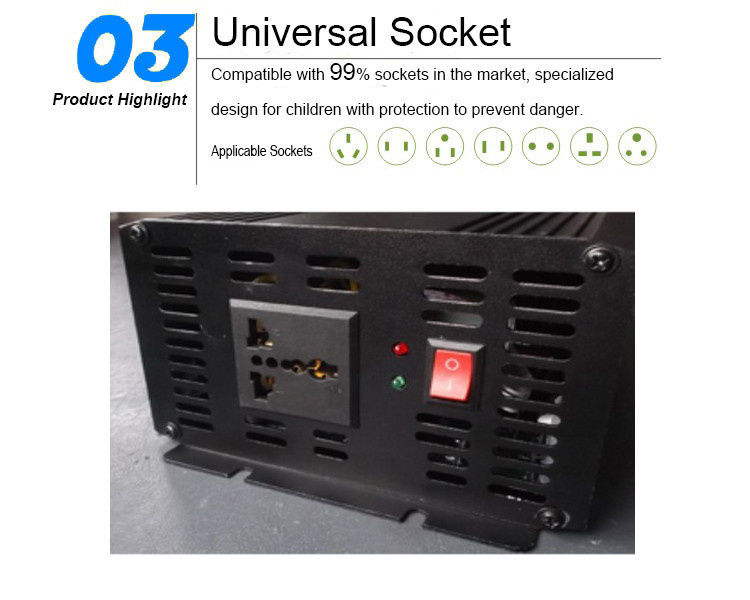

10.Two AC Socket
11.On/off switch
12.Isolated ground neutral
13.Positive power input terminal.
14.Negative power input terminal.

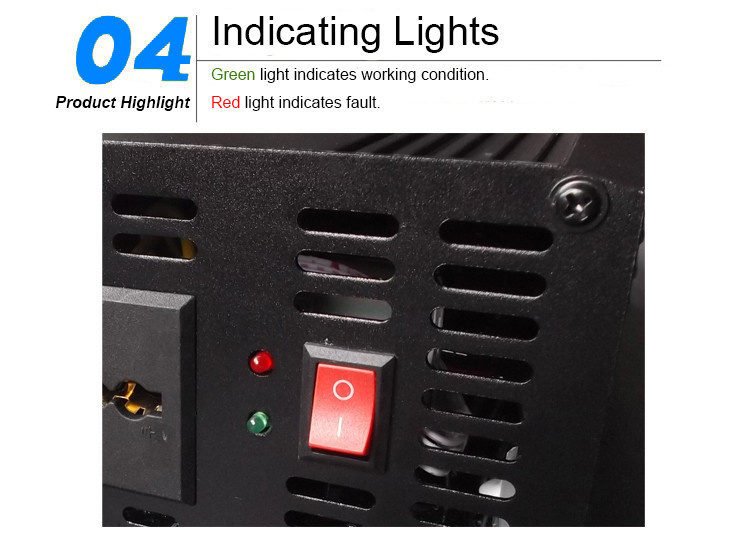

15.LED for over load protection
16.LED for power on
Technical Parameters
| Item No. | DXP 3500WBIG |
| * Max continuous power | 3500W |
| * Peak Load Power Rate: | 3500W |
| * Input DC voltage Range: | DC10-15.5 |
| * Output Voltage Range: | AC220±5% |
| * Output Frequency Range: | 50+/- 3Hz |
| * Max Outer Temperature: | < 65°C |
| * Max Power Efficiency: | > 90% |
| * High Voltage Cut Off Level: | 15.5 +/- 1V |
| * Low Voltage Alarm Level: | 10.5 +/- 0.5V |
| * Low Voltage Cut Off Level: | 10 +/- 0.5V |
| * Overload and Short-circuit Protection | yes |
| * Input Voltage: | DC 12V |
| * THD: | ≤5% |
| * Product Size: | 430*210*190MM |
| * N.W: | 5.5Kg |
Where can be DOXIN solar 12v/24v 220v 3500Watt big capability modified sine wave inverter Applied?
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp, etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, , etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressors, etc.
DOXIN Production Line
Established in early 1998, our Guangzhou DOXIN Electronic Factory has become not only a manufacturer,
but also a trading company. Now we have about 400 staff. We have our own Production Line, Testing
Department, Maintenance Department, Warehouse, Sales Department and Research&Development Department.
Our Factory is a manufacturer with more than 10-year inverter producing experience, specializing in all
kinds of power inverters, solar charge controllers, battery chargers, step-down converters, power adapters
and cellphone chargers etc. We have introduced international advanced technology with fully automated
production lines, advanced machines and instruments for multi-function testing and aging testing.
We are an ISO 9001-2000 certified factory with all our products being CE, EMC, LVD, and RoHS certified.
We can provide OEM service. Currently, our products are exported to America, Europe and many other
areas. Our products are so warmly welcome among customers.
