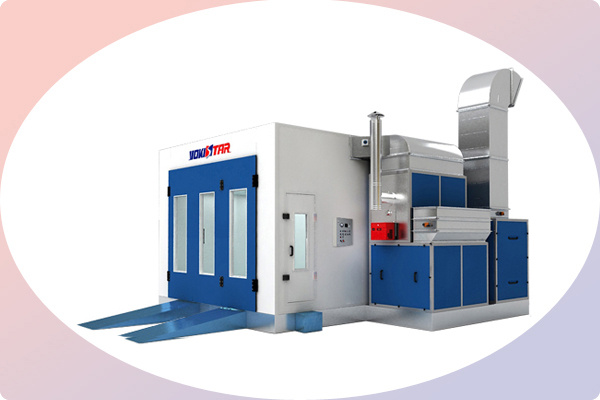

Downdraft with Basement Spray Booth and Dry Heating Oven for Sale

Name: Downdraft with Basement Spray Booth and Dry Heating Oven for Sale
Brand: ibuyautoparts.com
SKU: 687799971
Availability: InStock
Rating: 4.7 (148 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ojade-O
Ventilation:	Full Downdraft Airflow Way
Air Intake:	1*7.5kw Direct Drive Turbo Fan
Air Exhaust:	1*7.5kw Direct Drive Turbo Fan
Heating:	1 Unit Riello Rg5s Diesel Burner
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Optional Colour:	White, Blue, Orange and Red
Port:	Huangpu Port or by Your Order
Main Product:	Spray Booth, Prep Station, Infrared Curing System
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spray Booth
Substrate:	Steel & Aluminum
Brand:	Yokistar
Coating:	Painting & Powder Coating
Airflow Direction:	Full Downdraft Airflow Way

Product Description

Model:Ojade-T
Inside dimention:6900*3900*2650mm (L*W*H)
Outside dimention:7000*5350*3400mm (L*W*H)
Any Size Requirements Can Be Met
with Better Ventilation and Strong Power

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Specification of Automotive Spray Booth Ojade-T

Basement
Floor Arrangement
	Full grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment,
	loading weight is 600KG/wheel.
	2 ramps, each size is 750x2,000mm(WxL).
Covered Plate
	made of bended galvanised steel, 300mm high.
Supporting Frame
	made of galvanised square steel tube with 40x80mm(WxL) size.
Floor Filter
	Fiber glass filter laid on the filter frame,G3 Grade(EN779), type is PA-50, filtering area: 10.35M2.

Cabin
Inside Size
	6,900x3,900x2,650mm(LxWxH).
Outside Size
	7,000x5,350x3,400mm(LxWxH).
Entrance door
	3-leaf,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass
	embedded into square frame made of color steel.
Personnel Door
	1 unit, size is 700x2,000mm(WxH),with tempered glass embedded into square frame made of
	color steel.
Wall Panel
	50mm thick and 1,000mm wide,insulation is EPS and covered by 0.426mm thick of color steel inside
	and outside.Tongue and groove interlock structure,two sides covered by steel.
Roof Panel
	Made of 0.6mm thick bended galvanised plate.
Ceiling Light
	Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with
	4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Side Light
	Left and right side have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with
	2 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum
	450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white
	paint for long using life.
Ceiling Filter
	Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter,
	F5 Grade(EN779),type is SP-600G.

Makeup Air Units
Frame Size
	2,100x1,250x2,200mm(LxWxH).
Cabinet Frame
	Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
Motor and Fan
	Motor: direct drive; qty.:1pc; single motor power:7.5KW, total power:7.5KW;
	Fan type: single intake turbo fan, total air capacity: 25,000m3/h.
Makeup Air Control
	by Belimo NMU230 10N actuator to control fresh air quantity.
Pneumatic Actuator
	To control the air valve be opened or closed while the working status is spraying or baking.
Heat Exchanger
	200KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle
	radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M
	long bended galvanised steel chimney and 1 pc of rain shield.
Burner
	Riello RG5S diesel burner, heating productivity is 260,000Kcal/H.
Filtering
	Pre-filter, G2 Grade(EN779),type is C16-100 ;
	Fibre glass filter, G3 Grade(EN779),type is PA-50.

Exhaust Air Units
Frame Size
	1,500x1,250x1,150mm(LxWxH).
Cabinet Frame
	Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
Motor and Fan
	Motor:direct drive; qty.:1pc; single motor power:7.5KW, total power:7.5KW;
	Fan type: single intake turbo fan,total air capacity: 25,000m3/h
Exhaust Air Control
	Handed Actuator for controlling the air quantity.
	Equipped with 4M straight duct, 1pc 90° elbow duct and 1pc 30 elbow° duct.
Exhaust Air Filtering
	Fibre glass filter, G3 Grade(EN779),type is PA-50 .
	Active Carbon Filter in "Pocket" Shape,F5 Grade(EN779),type is C16-200.

Control System
	Pressure Gauge,Temperature Controller,Baking Timer,Hours,Spray Indicator,
	Heat Spray Indicator,Bake Indicator,Failure Indicator,Left Light Indicator,
	Right Light Indicator,Spray Switch,Heat Spraying Switch,Bake Switch,Left Light Switch,
	Right Light Switch,power Indicator,Start Switch,Power Switch,Emergency Stop.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
