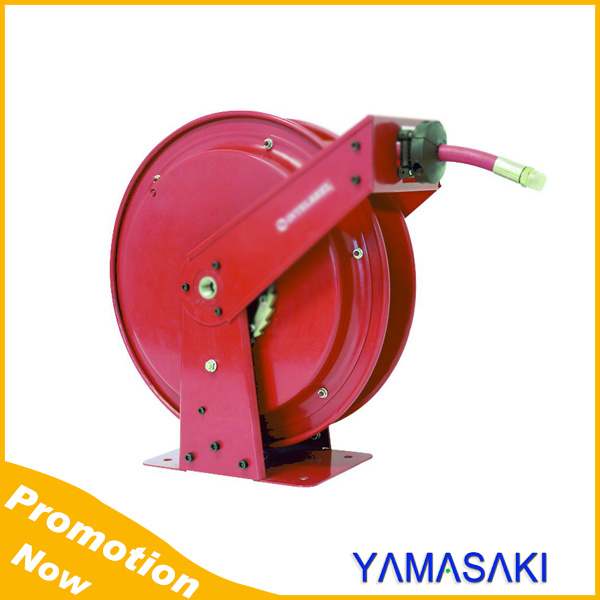

Double Support Optional Inlets Air Hose Reel

Name: Double Support Optional Inlets Air Hose Reel
Brand: ibuyautoparts.com
SKU: 768800455
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 160-170/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

The features of Yamasaki 400 series hose reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Dual Pedestal
4. Dual inlets on both sides optional
5. 3.0mm thickness cold steel spring case

The Drawing of 400 series

The Specifications:

App.	Pressure rating	Hose inner dia.	Hose length	Reel inlet	Reel outlet	Pin No. (with hose)
Air / Water / anti-freeze	2(300)	8 (5/16)	15(50)	1/2"	5/16"	400020215
	2(300)	8 (5/16)	20(65)	1/2"	5/16"	400020220
	2(300)	10(3/8)	15(50)	1/2"	3/8"	400020315
	2(300)	10(3/8)	20(65)	1/2"	3/8"	400020320
	2(300)	12(1/2)	15(50)	1/2"	1/2"	400020415
	2(300)	19(3/4)	8(25)	3/4"	3/4"	400020608
Oil / Water	19(2780)	6 (1/4)	15(50)	M22×1.5	M14×1.5	400190115
	15(2280)	10(3/8)	15(50)	M22×1.5	M18×1.5	400150315
	14(2030)	12(1/2)	15(50)	M22×1.5	M22×1.5	400140415
Grease	35(5075)	6 (1/4)	15(50)	M22×1.5	M14×1.5	400350115
Grease	28(4060)	10(3/8)	15(50)	M22×1.5	M18×1.5	400280315

The advantagues of using reels

The application scenes

Prod Model:	Series 400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
