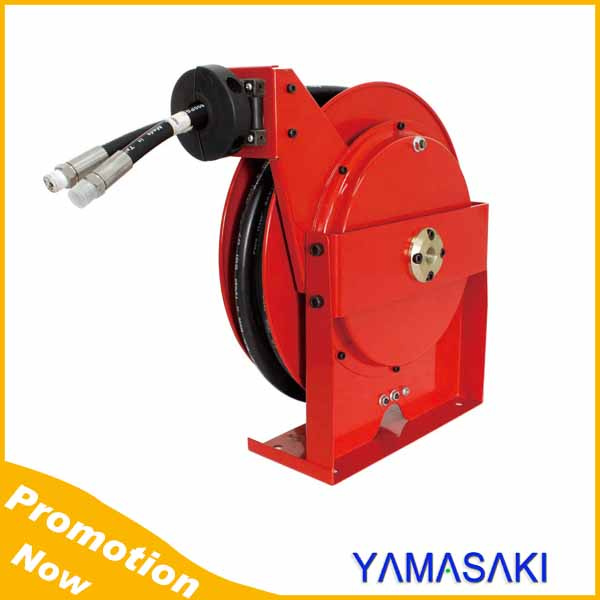

Double Support Hydraulic Double Hose Spring Reels

Name: Double Support Hydraulic Double Hose Spring Reels
Brand: ibuyautoparts.com
SKU: 767835935
Availability: InStock
Rating: 4.6 (101 reviews)

Price:	US $ 220-260/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Series DH reels are based on a combination of hydraulic applications environment,
working conditions and the use of features, the transition means for converting
extensions optimize the design. Work pressure, hydraulic transmission system
to meet the power requirements. In cranes, concrete pump, lifts and other
construction machinery vehicles, as well as other functions of the vehicle
equipment hydraulic link to a wide range of application and promotion.
Fluid path:: 1/4 ", 3/8", 1/2 "

The features of Yamasaki series DH hose reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Dual Pedestal
4. Dual inlets on both sides optional
5. 3.0mm thickness cold steel spring case

The Specifications:

Dimensions
	No.	DH300 (mm)	DH400 (mm)	DH600 (mm)	DH310 (mm)	DH510 (mm)
	A	403	495	685	398	583
	B	372	507	660	370	540
	C	160	204	273	395	197
	D	240	230	266	284	170
	E	80	120	200	204	40
	F	11	13	13	12	11

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Hydraulic oil	19(2780)	6(1/4)	6(20)	M14×1.5	M14×1.5	DH300190106	DH300190100
Hydraulic oil	15(2280)	10(3/8)	5(16)	M18×1.5	M18×1.5	DH300150305	DH300150300
Hydraulic oil	19(2780)	6(1/4)	10(33)	M14×1.5	M14×1.5	DH400190110	DH400190100
Hydraulic oil	15(2280)	10(3/8)	8(26)	M18×1.5	M18×1.5	DH400150308	DH400150300
Hydraulic oil	14(2030)	12(1/2)	6(20)	M22×1.5	M22×1.5	DH400140406	DH400140400
Hydraulic oil	15(2280)	10(3/8)	15(50)	M18×1.5	M18×1.5	DH600150315	DH600150300
Hydraulic oil	14(2030)	12(1/2)	10(33)	M22×1.5	M22×1.5	DH600140410	DH600140400
Hydraulic oil	19(2780)	6(1/4)	15(50)	M14×1.5	M14×1.5	DH310190115	DH310190100
Hydraulic oil	15(2280)	10(3/8)	10(33)	M18×1.5	M18×1.5	DH310150310	DH310150300
Hydraulic oil	19(2780)	6(1/4)	15(50)	M14×1.5	M14×1.5	DH510190115	DH510190100
Hydraulic oil	15(2280)	10(3/8)	10(33)	M18×1.5	M18×1.5	DH510150310	DH510150300

Prod Model:	Series DH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4 ", 3/8", 1/2 "
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red,Yellow
